FCEV Reference Application

The fuel cell electric vehicle (FCEV) reference application represents a fuel cell electric vehicle model with a motor-generator, battery, direct-drive transmission, and associated powertrain control algorithms. Use the fuel cell electric vehicle reference application for powertrain matching analysis and component selection, control and diagnostic algorithm design, and hardware-in-the-loop (HIL) testing.

For more information, see Build Fuel Cell Electric Vehicle. On startup, the project opens the FCEvReferenceApplication system model.

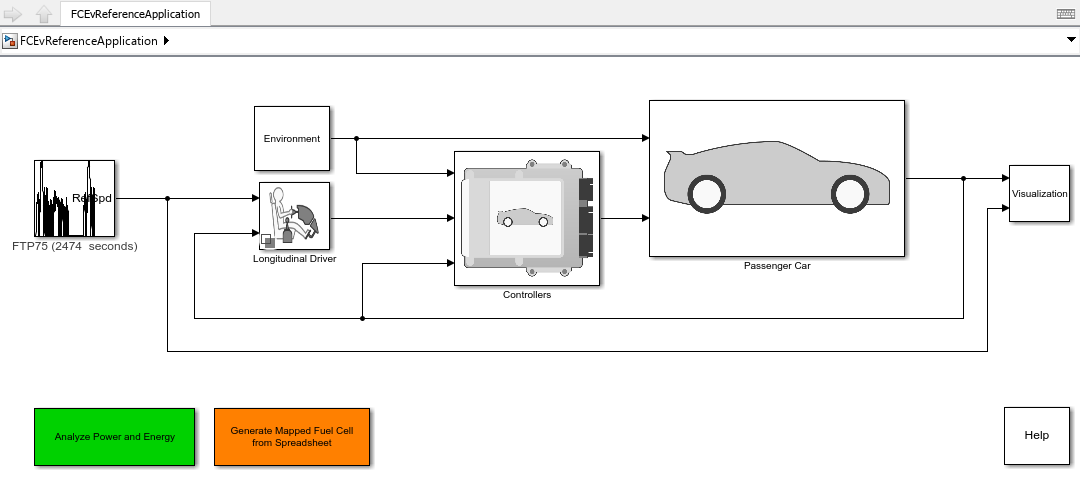

The FCEvReferenceApplication system model includes a drive cycle source block, controllers, and a passenger car subsystem.
