You can generate Structured Text for a Fuzzy Logic Controller block using Simulink® PLC Coder™. For more information on generating Structured Text, see Code Generation (Simulink PLC Coder).
While this example generates Structured Text for a type-1 Sugeno fuzzy inference system, the workflow also applies to Mamdani and type-2 fuzzy systems.
By default, the Fuzzy Logic Controller block uses double-precision data for simulation and code generation. The
fuzzyPID model is configured to use double-precision data. You can also use either single-precision or fixed-point data. For more information on configuring your fuzzy inference system for code generation, see Fuzzy Logic Controller.

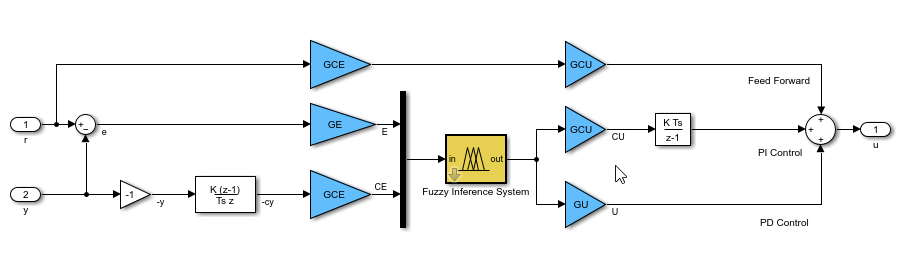

mdl = 'fuzzyPID'; open_system(mdl)

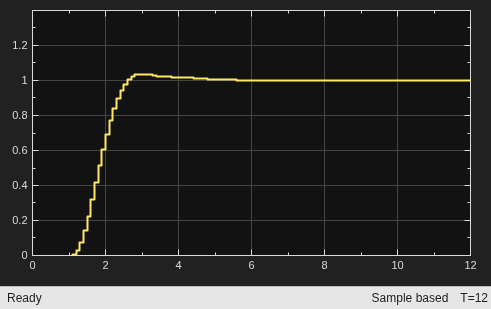

It is good practice to validate the performance of the system in Simulink before generating code. Run the simulation.
sim(mdl) open_system([mdl '/Output'])
To generate Structured Text for the model, use the
plcgeneratecode function, which generates code for an atomic subsystem in a model. To generate code for the Fuzzy PID controller, configure the subsystem as an atomic subsystem by selecting the Treat as atomic unit parameter for the subsystem.
subsys = [mdl '/Fuzzy PID']; set_param(subsys,'TreatAsAtomicUnit','on')
When generating code for just a Fuzzy Logic Controller block, place the block inside a subsystem, and set the Treat as atomic unit parameter of that subsystem.
Generate Structured Text for the Fuzzy PID subsystem.
By default, the software saves the generated code in the following location:
