# Optimize Pressure Reducing Valve Model for Real-Time Simulation

This example shows how to identify simulation slowdowns, resolve performance issues, and configure a Simscape Fluids™ model for real-time simulation. This example uses the Pressure Reducing Valve In Punching Operation model, `PressureReducingValveInPunchingOperation`

which is called here as the original model. In this example, you measure the simulation time, identify the factors that affect simulation speed, optimize the model, and prepare the model for code generation.

### Open and Examine the Model

Open the original model.

```
model = 'PressureReducingValveInPunchingOperation';
open_system(model)
```

The model has been configured for real-time simulation by performing these steps:

Enable the

**Use local solver**option in the Solver Configuration block. Set**Solver type**to`Backward Euler`

and**Sample time**to`2e-4`

. Enable the**Use fixed-cost runtime consistency iterations**option in the Solver Configuration block. Expand the**Use fixed-cost runtime consistency iterations**option and set**Nonlinear iterations**to`3`

.Open the Configuration Parameters window, click

**Solver**, under**Solver selection**, set**Type**to`Fixed-step`

, set**Solver**to`ode1be (Backward Euler)`

, and under**Solver details**, set**Fixed-step size**to`2e-4`

.Replace Single-Acting Actuator (IL) blocks with Foundation Library blocks such as the Translational Mechanical Converter (IL), Translational Spring, Translational Damper and Translational Hard Stop blocks. Set

**Hard stop model**in Translational Hard Stop block to`Full stiffness and damping applied at bounds, damped rebound`

.Convert the

`Punch Load`

and`Directional Valve Control`

subsystems to Atomic Subsystems. Right click on the subsystems, then click**Block Parameters (subsystem)**. Enable the**Treat as atomic unit**option and set the**Sample time**to`1e-3`

. Add Rate Transition blocks at the input and output of the subsystems.Set the

**Smoothing factor**parameter of the 4-Way 2-Position Directional Valve and the Check Valve blocks to`0.1`

.Remove the Pipe (IL), Pipe (IL)1 and Pipe (IL)2 blocks. To compensate for the pipe volume, increase the dead volume of the single-acting actuators that represent the punch cylinder, clamp cylinder and pressure reducing valve spool. Navigate inside

`Punch Cylinder`

subsystem. Increase the value of**Dead volume in chamber A**and**Dead volume in chamber B**parameters of the`Punch Cylinder`

block from`1e-6 m^3`

to`1e-3 m^3`

. Navigate inside`Regulated Clamp Cylinder`

subsystem. Increase the value of**Dead volume in chamber A**and**Dead volume in chamber B**parameters of the`Clamp Cylinder`

block from`1e-6 m^3`

to`1e-3 m^3`

. Navigate inside`Pressure Reducing Valve`

subsystem. Increase the value of**Dead volume**parameter of the Single-Acting Actuator (IL) and Single-Acting Actuator (IL)1 blocks from`1e-5 m^3`

to`1e-4 m^3`

.

Open the real-time model.

```
modelRT = 'PressureReducingValveInRealTime';
open_system(modelRT)
```

Now, again open and examine the `PressureReducingValveInPunchingOperation`

model.

open_system(model)

This model includes interactions between Simscape™, Simulink® and Stateflow®. The Simscape blocks represent the physical model of the pressure-reducing valve and the punch system. The Simulink blocks are used to measure and transmit signals across the model. Stateflow models the conditional actuation of a punch cylinder that involves a feedback loop. The model includes several Goto, From, and PMC Port blocks that the subsystems use to interact with each other. This complex communication across the model causes simulation slowdown.

The Switch, Saturation, Hard Stop, Translational Friction blocks cause non-linear behavior that causes the solver to iterate using lower time steps. The 4-Way 2-Position Directional Valve causes changes in the flow direction which causes zero-crossings when the punch cylinder starts to displace or comes to a stop. The clamp cylinder and the pressure reducing valve spool cause similar behavior when they start to displace or come to a stop. These zero-crossings contribute to simulation slowdown.

The compressibility of the fluid is an essential aspect of modeling a hydraulic system. When the **Fluid dynamic compressibility** parameter of the Pipe block is set to `On`

, an imbalance of mass inflow and mass outflow can cause liquid to accumulate or diminish in the pipe. As a result, pressure in the pipe volume can rise and fall dynamically, which provides some compliance to the system and modulates rapid pressure changes. This setting can contribute to simulation slowdown.

All the above factors can thus impede a real-time simulation. To achieve real-time simulation, the run time or execution time must be less than the Simulation stop time. To achieve real-time simulation for this model, you must use a fixed-step solver with a large enough time step.

### Use a Variable-Step Solver to Get Reference Results

A variable-step solver adjusts the step size to capture events and dynamics in the system. Since, the variable step sizes cannot be mapped to the real-time clock of a target system, you must use an implicit or explicit fixed-step solver for real-time simulation.

To ensure that the results obtained with the fixed-step solver are accurate, compare them with reference results obtained by simulating the system with a variable-step solver.

To run your model using a variable-step solver, ensure that the **Use local solver** in the Solver Configuration block is set to `off`

. This example focuses on reducing the elapsed simulation time for one cycle of punching operation. Set **Simulation stop time (sec)** to `6`

.

solverConfiguration = string(find_system(bdroot,'MaskType','Solver Configuration')); set_param(solverConfiguration, 'UseLocalSolver', 'off'); set_param(model,'StopTime','6');

Before running the model, open the Configuration Parameters window, click **Data Import/Export**, then enable the **Time** parameter under **Save to workspace or file** tab. Enable the **Single simulation output** parameter to return simulation data as a single `Simulink.SimulationOutput`

object. The object name is specified as `out`

by default. Alternatively, enable the parameter by entering:

set_param(model,'SaveTime','on'); set_param(model,'ReturnWorkspaceOutputs','on');

Create a `Simulink.SimulationInput`

object with **Simulation stop time (sec)** as an input argument.

simIn = Simulink.SimulationInput(model); simIn = setModelParameter(simIn,'StopTime','6');

Specify a `Simulink.SimulationOutput`

object. Run the model.

out = sim(simIn);

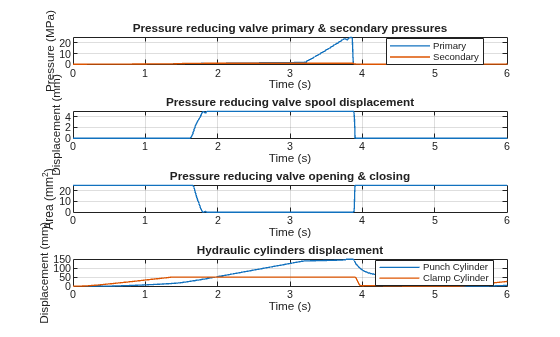

Plot the results.

figure; PressureReducingValveInRealTimePlotVariableSolverResponse;

### Examine Step Sizes during the Simulation

A variable-step solver will vary the step size to stay within the error tolerances and to react to zero-crossing events . If the solver abruptly reduces the step size to a small value (e.g., 1e-15s), this indicates that the solver is trying to accurately identify a zero-crossing event. A fixed-step solver may have trouble capturing these events at a step size large enough to permit real-time simulation. These MATLAB® commands can be used to generate a plot that shows how the time step varies during the simulation:

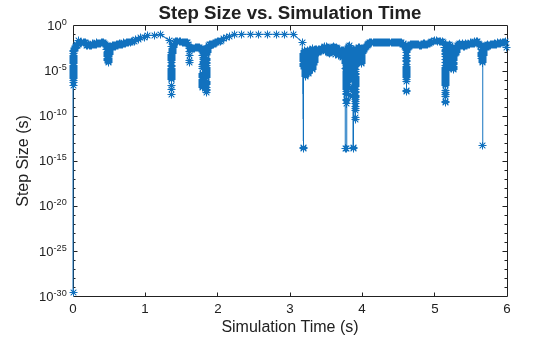

figure; semilogy(out.tout(1:end-1),diff(out.tout),'-*'); title('Step Size vs. Simulation Time','FontSize',14,'FontWeight','bold'); xlabel('Simulation Time (s)','FontSize',12); ylabel('Step Size (s)','FontSize',12);

This plot shows the step sizes the solver takes during simulation. The sharp plunge in step size are examples of zero-crossing events.

This analysis should provide a rough idea of a step size that can be used to run the simulation. Determining what effects are causing these events and modifying or eliminating them will make it easier to run the system with a fixed-step solver at a larger step size and produce results comparable to the variable-step simulation.

A stiff system has continuous dynamics that vary slowly and quickly. Implicit solvers are particularly useful for stiff problems. Using an explicit solver to solve a stiff system can lead to incorrect results. If a nonstiff solver uses a very small step size to solve a model, this is a sign that your system is stiff. This plot shows that the variable-step solver takes very less step sizes and thus the system is stiff.

### Use a Fixed-Step Solver to Measure Simulation Time

Run your model using fixed-step, fixed-cost configurations. It is recommended to enable the **Use local solver** option in the Solver Configuration block. Local solvers discretize the continuous states. Using local solvers permits configuring implicit solvers on the stiff portions of the model and explicit solvers on the remainder of the model, minimizing execution time while maintaining accuracy. This example uses the Backward Euler solver. Set **Solver type** to `Backward Euler`

and **Sample time** to `1e-4`

. Enable the **Use fixed-cost runtime consistency iterations** option in the Solver Configuration block. Expand the **Use fixed-cost runtime consistency iterations** option and set **Nonlinear iterations** to `3`

.

set_param(solverConfiguration,'UseLocalSolver','on'); set_param(solverConfiguration,'LocalSolverChoice','NE_BACKWARD_EULER_ADVANCER'); set_param(solverConfiguration,'LocalSolverSampleTime','1e-4'); set_param(solverConfiguration,'LocalSolverSampleTime','1e-4'); set_param(solverConfiguration,'DoFixedCost','on'); set_param(solverConfiguration,'MaxNonlinIter','3');

Run the model.

simIn = Simulink.SimulationInput(model); simIn = setModelParameter(simIn,'StopTime','6'); outBE1 = sim(simIn);

View the metadata and the timing information.

simMetadata = getSimulationMetadata(outBE1); simMetadata.TimingInfo;

To see the elapsed simulation time, in seconds, enter:

simMetadata.TimingInfo.ExecutionElapsedWallTime;

The simulation time depends on the CPU on which you execute the model. There may be a difference between the time measured by you and the time in this example.

### Compare Solvers and Determine if the Simulation runs Real-Time

Next, determine the fixed-step solver most appropriate for your model. To do this, use the local solvers in the Solver Configuration block and compare the elapsed simulation time for each. The available solvers are:

Backward Euler

Trapezoidal Rule

Partitioning

The Backward Euler tends to damp out oscillations, but is more stable, especially if you increase the time step.

The Trapezoidal Rule solver captures oscillations better but is less stable.

The Partitioning solver lets you increase real-time simulation speed by partitioning the entire system of equations that correspond to a Simscape network into a cascade of smaller equation systems. Not all networks can be partitioned. However, when a system can be partitioned, this solver provides a significant increase in real-time simulation speed. To configure the Partitioning solver, set **Solver type** to `Partitioning`

and **Sample time** to `1e-4`

. Set **Partition method** to `Robust simulation`

and **Partition storage method** to `Exhaustive`

. Enable the **Use fixed-cost runtime consistency iterations** option in the Solver Configuration block. Expand the **Use fixed-cost runtime consistency iterations** option and set **Nonlinear iterations** to `3`

.

set_param(solverConfiguration,'LocalSolverChoice','NE_PARTITIONING_ADVANCER'); set_param(solverConfiguration,'LocalSolverSampleTime','1e-4'); set_param(solverConfiguration,'PartitionMethod','ROBUST'); set_param(solverConfiguration,'PartitionStorageMethod','EXHAUSTIVE'); set_param(solverConfiguration,'DoFixedCost','on'); set_param(solverConfiguration,'MaxNonlinIter','3');

This system cannot be partitioned with a time step of 1e-4 s or greater.

Next, set **Solver type** to `Backward Euler`

and **Sample time** to `1e-4`

. Enable the **Use fixed-cost runtime consistency iterations** option in the Solver Configuration block. Expand the **Use fixed-cost runtime consistency iterations** option and set **Nonlinear iterations** to `3`

.

set_param(solverConfiguration,'LocalSolverChoice','NE_BACKWARD_EULER_ADVANCER'); set_param(solverConfiguration,'LocalSolverSampleTime','1e-4'); set_param(solverConfiguration,'DoFixedCost','on'); set_param(solverConfiguration,'MaxNonlinIter','3');

Run the model.

simIn = Simulink.SimulationInput(model); simIn = setModelParameter(simIn,'StopTime','6'); outBE1 = sim(simIn);

After running the model, access the metadata and the timing information.

simMetadata = getSimulationMetadata(outBE1); simMetadata.TimingInfo;

View the elapsed simulation time, in seconds:

simMetadata.TimingInfo.ExecutionElapsedWallTime;

Then, set **Solver type** to `Trapezoidal Rule`

and **Sample time** to `1e-4`

. Retain the fixed-cost configurations.

set_param(solverConfiguration,'LocalSolverChoice','NE_TRAPEZOIDAL_ADVANCER'); set_param(solverConfiguration,'LocalSolverSampleTime','1e-4'); set_param(solverConfiguration,'DoFixedCost','on'); set_param(solverConfiguration,'MaxNonlinIter','3');

Run the model.

simIn = Simulink.SimulationInput(model); simIn = setModelParameter(simIn,'StopTime','6'); outTR1 = sim(simIn);

After running the model, access the metadata and the timing information.

simMetadata = getSimulationMetadata(outTR1); simMetadata.TimingInfo;

View the elapsed simulation time, in seconds:

simMetadata.TimingInfo.ExecutionElapsedWallTime;

Because the elapsed simulation time is more than the **Simulation stop time**, the model does not run in real-time.

### Identify Factors that Affect Speed and Choose an Appropriate Solution

Because the simulation is not real-time capable, you can explore some options.

**Determine New Settings that Reduce the Execution Time**

You can either permit a larger step size or reduce the number of nonlinear iterations.

Again, set **Solver type** to `Backward Euler`

. Now, set **Sample time** to `2e-4`

. Enable the **Use fixed-cost runtime consistency iterations** option in the Solver Configuration block. Expand the **Use fixed-cost runtime consistency iterations** option and set **Nonlinear iterations** to `3`

.

set_param(solverConfiguration,'LocalSolverChoice','NE_BACKWARD_EULER_ADVANCER'); set_param(solverConfiguration,'LocalSolverSampleTime','2e-4'); set_param(solverConfiguration,'DoFixedCost','on'); set_param(solverConfiguration,'MaxNonlinIter','3');

The global solver solves for the Simulink and Stateflow blocks. To ensure that the Simulink and Stateflow blocks also run at higher time steps without affecting accuracy, open the Configuration Parameters window, click **Solver**, under **Solver selection**, set **Type** to `Fixed-step`

, set **Solver** to `ode1be (Backward Euler)`

, and under **Solver details**, set **Fixed-step size** to `2e-4`

.

set_param(model,'SolverType','Fixed-step'); set_param(model,'SolverName','ode1be'); set_param(model,'FixedStep','2e-4');

Run the model.

simIn = Simulink.SimulationInput(model); simIn = setModelParameter(simIn,'StopTime','6'); outBE2 = sim(simIn);

Then, set **Solver type** to `Trapezoidal Rule`

and **Sample time** to `2e-4`

. Retain the fixed-cost configurations.

set_param(solverConfiguration,'LocalSolverChoice','NE_TRAPEZOIDAL_ADVANCER'); set_param(solverConfiguration,'LocalSolverSampleTime','2e-4'); set_param(solverConfiguration,'DoFixedCost','on'); set_param(solverConfiguration,'MaxNonlinIter','3');

Run the model.

simIn = Simulink.SimulationInput(model); simIn = setModelParameter(simIn,'StopTime','6'); outTR2 = sim(simIn);

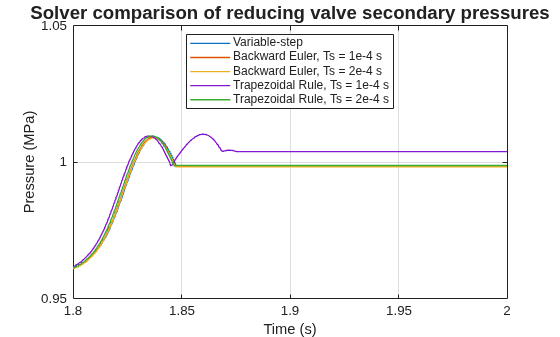

Now, compare the results of simulation with large step size with the reference results obtained from variable-step solver.

figure; PressureReducingValveInRealTimePlotSolverComparison;

This zoomed in version of the figure shows the comparison of solvers for secondary pressure. Increasing the step size, increases the error, but the error is within acceptable limits for Backward Euler solver with sample time of 2e-4 s.

**Use the Solver Profiler to Identify Factors that Affect Speed**

The system stiffness is high. High stiffness is responsible for simulation slowdown.

The **Simscape Stiffness** option in the **Solver Profiler** tool lets you analyze the Simscape networks and determine which variables and equations have the most impact on system stiffness. You can then modify the values of parameters involved in these equations to make the system less stiff.

Ensure that you select a Variable-step Global Solver for this analysis. Open the Configuration Parameters window, click **Solver**, under **Solver selection**, set **Type** to `Variable-step`

. Ensure that **Use local solver** in the Solver Configuration block is set to `off`

.

set_param(model,'SolverType','Variable-step'); set_param(solverConfiguration, 'UseLocalSolver', 'off');

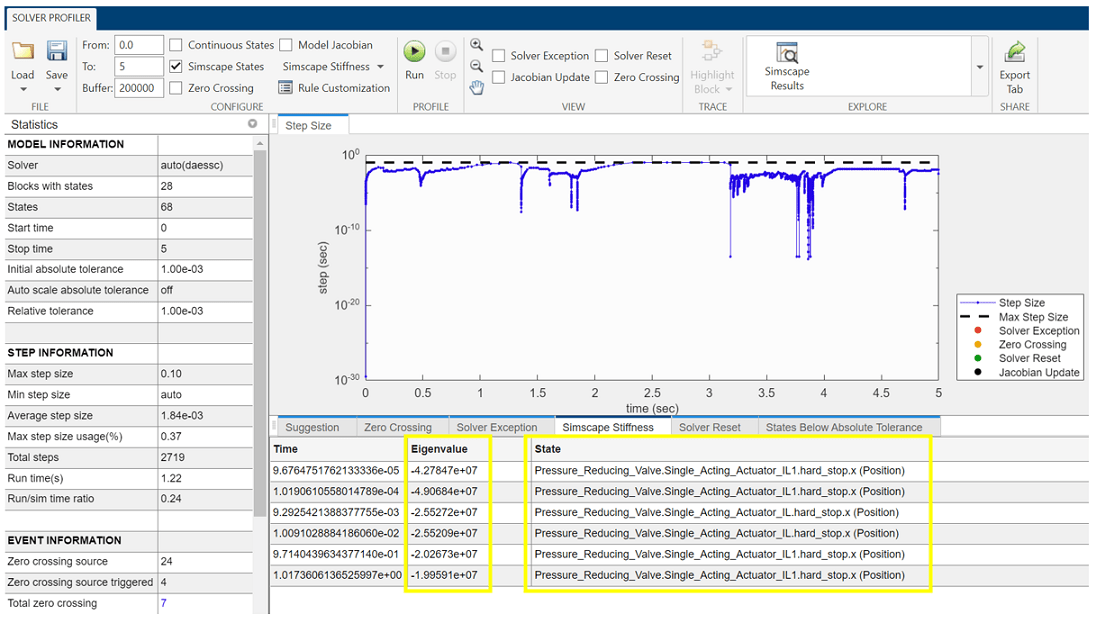

To access the **Simscape Stiffness** tool, on the **Debug** tab, under **Performance Advisor**, click **Solver Profiler**. To perform stiffness analysis on the Simscape model, in the Solver Profiler window, click the **Simscape Stiffness** drop-down button, enter the stiffness analysis checkpoints as a vector, and click Run.

This example uses the vector `[1e-4, 1e-2, 1, 3.76]`

.

The **Simscape Stiffness** tab in the bottom pane shows that the variable with the most impact on the system stiffness is Pressure_Reducing_Valve.Single_Acting_Actuator_IL1.hard_stop.x(Position), and the corresponding eigenvalue is of the order of -1e+07 at each interval. When the time steps do not line up with the times in your vector, the tool performs stiffness analysis at the closest time steps before and after the instances you specify, t- and t+, respectively.

The greater the magnitude of a negative eigenvalue, the more unstable the system becomes due to stiffness.

The **Solver Profiler** tool shows that the eigenvalues of the states involving hard stop forces of the Single-Acting Actuator (IL) blocks are high, which is an indication that the hard stop is contributing to a stiffer model. You can implement the next steps to reduce numerical stiffness.

The hard stop represents the interaction of the rightmost piston face of the reducing valve spool with the physical obstruction of the pilot line. Replace Single-Acting Actuator (IL) blocks with Foundation Library blocks such as the Translational Mechanical Converter (IL), Translational Spring, Translational Damper and Translational Hard Stop blocks. This eliminates one hard stop. Using only one hard stop instead of two is sufficient to represent the behavior and reduces non-linearity due to hard stop behavior.

The Translational Hard Stop block has the **Hard stop model** parameter set to `Stiffness and damping applied smoothly through transition region, damped rebound`

setting by default. As a result, the block implements smoothing near zero, when the reducing valve spool starts to move. This smoothing introduces a nonlinearity that the solver takes time to resolve. Set **Hard stop model** to `Full stiffness and damping applied at bounds, damped rebound`

.

Set the **Use local solver** option in the Solver Configuration block to `On`

. Run the model again with new blocks and new hard stop model.

set_param(solverConfiguration, 'UseLocalSolver', 'on'); simIn = Simulink.SimulationInput(model); simIn = setModelParameter(simIn,'StopTime','6'); sim(simIn);

**Use the Simulink Profiler to Identify Factors that Affect Speed**

The **Simulink Profiler** identifies how much time each Simulink block and all Simscape blocks take to simulate. The **Simulink Profiler** can be used to identify simulation slowdowns and manually resolve performance bottlenecks.

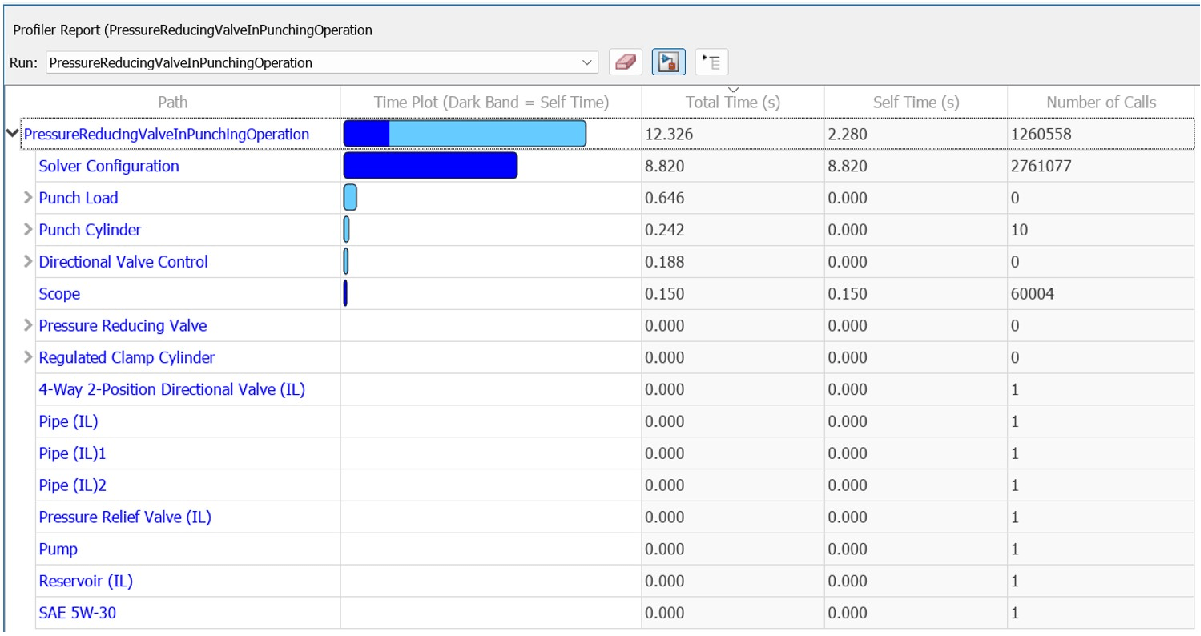

To open the **Simulink Profiler**, on the **Debug** tab, under **Performance Advisor**, click **Simulink Profiler**. On the **Profile** tab, click **Profile** to run the model and collect profiler data.

When simulation is complete, the **Profiler Report** pane displays the simulation profile for the model. Expand **PressureReducingValveInPunchingOperation**. By default, the profiler sorts the blocks at the same level of the model in descending order by the values in the **Total Time(s)** column. The contribution of the Simscape blocks is grouped in the **Solver Configuration** row. Although the Simscape blocks take up the most time (`8.82 s`

) out of the total time (`12.326 s`

), the time consumed by the Simulink blocks can be minimized. The `Punch Load`

subsystem takes up the most time (`0.646 s`

), followed by the `Punch Cylinder`

subsystem (`0.242 s`

) and the `Directional Valve Control`

subsystem (`0.188 s`

). Additionally, logging the results to the Scope block leads to a slowdown of `0.15 s`

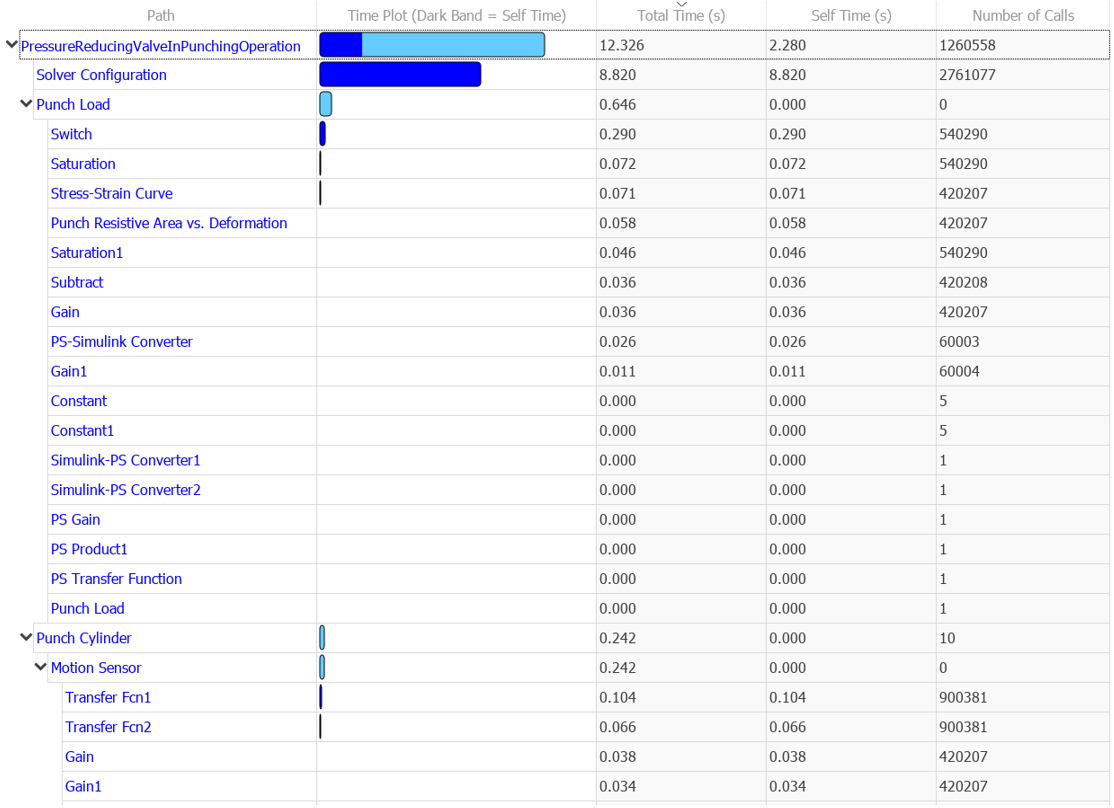

. Expand the subsystems hierarchy to see how much time each block takes up.

You can see that within `Punch Load`

subsystem, the blocks such as Switch and Saturation lead to minor slowdown due to their non-linear behavior. The execution of these subsystems can be sped up by implementing these steps:

Convert the `Punch Load`

and `Directional Valve Control`

subsystems to Atomic Subsystems with a higher sample time. The subsystems named `Punch Load`

and `Directional Valve Control`

are virtual subsystems. Virtual subsystems are treated as if all the blocks existed at the same level. Atomic subsystems let you control the execution of the model. Right click on the subsystems, then click **Block Parameters (subsystem)**. Enable the **Treat as atomic unit** option and set the **Sample time** to `1e-3`

, that is higher than the sample time of the local solver (1e-4) so that the blocks of the subsystem run faster.

Add Rate Transition blocks at the input and output of the subsystems. The Rate Transition block transfers data from the output of a block operating at one rate to the input of a block operating at a different rate. Use the block parameters to ensure data integrity and deterministic transfer for faster response or lower memory requirements.

Run the model again and check if the simulation time has improved.

simIn = Simulink.SimulationInput(model); simIn = setModelParameter(simIn,'StopTime','6'); out = sim(simIn); simMetadata = getSimulationMetadata(out); simMetadata.TimingInfo; simMetadata.TimingInfo.ExecutionElapsedWallTime;

You can also run the **Performance Advisor** to automatically fix performance-related issues in the model. To open the **Performance Advisor**, on the **Debug** tab, under **Performance Advisor**, click **Performance Advisor**. To learn more, see Improve Simulation Performance Using Performance Advisor.

### Configure the Model

You can configure the model to experience further improvement in speed.

**Modify or Remove Elements that Create Discontinuities**

A valve with zero smoothing factor causes discontinuities during near-open and near-closed positions. These discontinuities cause the solver to take smaller time steps and slows the simulation down. A non-zero smoothing factor implements a piecewise quadratic smoothing function that helps avoid these discontinuities during near-open and near-closed positions. A higher value of smoothing factor increases the effect of the smoothing function.

The 4-Way 2-Position Directional Valve and the Check Valve blocks have their **Smoothing factor** parameters set to `0.01`

. Set the **Smoothing factor** parameter of these blocks to `0.1`

to observe a slight improvement in simulation speed.

set_param([model '/4-Way 2-Position Directional Valve (IL)'],'smoothing_factor','0.1'); set_param([model '/Pressure Reducing Valve/Check Valve'],'smoothing_factor','0.1');

**Modify or Remove Elements with Small Time Constant**

The Pipe (IL) blocks in the model have the **Fluid dynamic compressibility** parameter set to `On`

. When dynamic compressibility is on, an imbalance of mass inflow and mass outflow can cause liquid to accumulate or diminish in the pipe. As a result, pressure in the pipe volume can rise and fall dynamically, which provides some compliance to the system and modulates rapid pressure changes. These pressure changes increase the model complexity and the simulation time. Also, the pipe friction can induce discontinuities.

Remove the Pipe (IL), Pipe (IL)1 and Pipe (IL)2 blocks. To compensate for the pipe volume, increase the dead volume of the single-acting actuators that represent the punch cylinder, clamp cylinder and pressure reducing valve spool. Navigate inside `Punch Cylinder`

subsystem. Increase the value of **Dead volume in chamber A** and **Dead volume in chamber B** parameters of the `Punch Cylinder`

block from `1e-6 m^3`

to `1e-3 m^3`

. Navigate inside `Regulated Clamp Cylinder`

subsystem. Increase the value of **Dead volume in chamber A** and **Dead volume in chamber B** parameters of the `Clamp Cylinder`

block from `1e-6 m^3`

to `1e-3 m^3`

. Navigate inside `Pressure Reducing Valve`

subsystem. Increase the value of **Dead volume** parameter of the Single-Acting Actuator (IL) and Single-Acting Actuator (IL)1 blocks from `1e-5 m^3`

to `1e-4 m^3`

. These changes lead to an improvement in speed with no marked difference in the results.

set_param([model '/Punch Cylinder/Punch Cylinder'],'dead_volume_A','1e-3'); set_param([model '/Punch Cylinder/Punch Cylinder'],'dead_volume_B','1e-3'); set_param([model '/Regulated Clamp Cylinder/Clamp Cylinder'],'dead_volume_A','1e-3'); set_param([model '/Regulated Clamp Cylinder/Clamp Cylinder'],'dead_volume_B','1e-3'); set_param([model '/Pressure Reducing Valve/Single-Acting Actuator (IL)'],'dead_volume','1e-4'); set_param([model '/Pressure Reducing Valve/Single-Acting Actuator (IL)1'],'dead_volume','1e-4');

Now you can close the original model.

```
bdclose(model)
bdclose all
```

### Simulate the Real-Time Model

Open the PressureReducingValveInRealTime model, that is already optimized for real-time simulation.

```
modelRT = 'PressureReducingValveInRealTime';
open_system(modelRT)
```

Open the Configuration Parameters window, click **Data Import/Export**, then enable the **Single simulation output** parameter to return simulation data as a single `Simulink.SimulationOutput`

object and set the object name to `out_PressureReducingValveInRealTime`

.

set_param(modelRT,'ReturnWorkspaceOutputs','on'); set_param(modelRT,'ReturnWorkspaceOutputsName','out_PressureReducingValveInRealTime');

Set **Simulation stop time (sec)** to `6`

.

set_param(modelRT,'StopTime','6');

Enable the **Use local solver** option in the Solver Configuration block. Set **Solver type** to `Backward Euler`

and **Sample time** to `2e-4`

. Enable the **Use fixed-cost runtime consistency iterations** option in the Solver Configuration block. Expand the **Use fixed-cost runtime consistency iterations** option and set **Nonlinear iterations** to `3`

.

solverConfigurationRT = string(find_system(bdroot,'MaskType','Solver Configuration')); set_param(solverConfigurationRT,'UseLocalSolver','on'); set_param(solverConfigurationRT,'LocalSolverChoice','NE_BACKWARD_EULER_ADVANCER'); set_param(solverConfigurationRT,'LocalSolverSampleTime','2e-4'); set_param(solverConfigurationRT,'DoFixedCost','on'); set_param(solverConfigurationRT,'MaxNonlinIter','3');

Open the Configuration Parameters window, click **Solver**, under **Solver selection**, set **Type** to `Fixed-step`

, set **Solver** to `ode1be (Backward Euler)`

, and under **Solver details**, set **Fixed-step size** to `2e-4`

.

set_param(modelRT,'SolverType','Fixed-step'); set_param(modelRT,'SolverName','ode1be'); set_param(modelRT,'FixedStep','2e-4');

Create a `Simulink.SimulationInput`

object with **Simulation stop time (sec)** as an input argument. Specify a `Simulink.SimulationOutput`

object. Run the model optimized for real-time simulation.

simIn = Simulink.SimulationInput(modelRT); simIn = setModelParameter(simIn,'StopTime','6'); out_PressureReducingValveInRealTime = sim(simIn);

After running the model, access the metadata and the timing information.

simMetadata = getSimulationMetadata(out_PressureReducingValveInRealTime); simMetadata.TimingInfo;

To view the elapsed simulation time, in seconds, enter:

simMetadata.TimingInfo.ExecutionElapsedWallTime;

The elapsed run time is less than the simulation time, that indicates the model runs faster than real-time.

### Generate and Build Code

After you optimize the model for real-time simulation, you can generate code from the model and build the code.

**Generate Code from the Model**

To generate code from the real-time model

In the

**Modeling**tab, click**Model Settings**. The Configuration Parameters dialog opens. Navigate to the**Code Generation**tab, under**Build process**, select the**Generate code only**parameter, and click**Apply**.Note that the system target file must be

`grt.tlc`

. In the Configuration Parameters window, click**Code Generation**. In the right pane, set**System Target File**to`grt.tlc`

.In the

**Apps**tab, under**Code Generation**, click**Simulink Coder**. In the**C Code**tab, click**Generate Code**.

After the model finishes generating code, a new subfolder called `PressureReducingValveInRealTime_grt_rtw`

is created in your current MATLAB working folder and the Code Generation Report window opens. This subfolder contains the files created by the code generation process, including those that contain the generated C source code.

**Build the Generated Code**

To build an executable, you must set up a supported C/ C++ compiler. For a list of compilers supported in the current release, see Supported and Compatible Compilers.

To set up your compiler, run this command in the MATLAB command prompt: `mex -setup`

After you set up your compiler, you can build and run the compiled code. The `PressureReducingValveInRealTime`

model is currently configured to only generate code. To build the generated code:

In the

**Modeling**tab, click**Model Settings**. The Configuration Parameters dialog opens. Click**Code Generation**, then clear the**Generate code only**parameter and click**Apply**.In the

**C Code**tab, click**Build**.

The code generator builds the executable and generates the Code Generation Report. The code generator places the executable in the working folder. The executable generated is `PressureReducingValveInRealTime.exe`

.

You can run the generated executable from MATLAB command prompt with this command to create a MAT-file that contains the same variables as those generated by simulating the model.

```
% !PressureReducingValveInRealTime
```

clear all close all bdclose all

## See Also

Pipe (IL) | Pressure-Reducing Valve (IL)
