PUCCH Format 3 Processing Functions

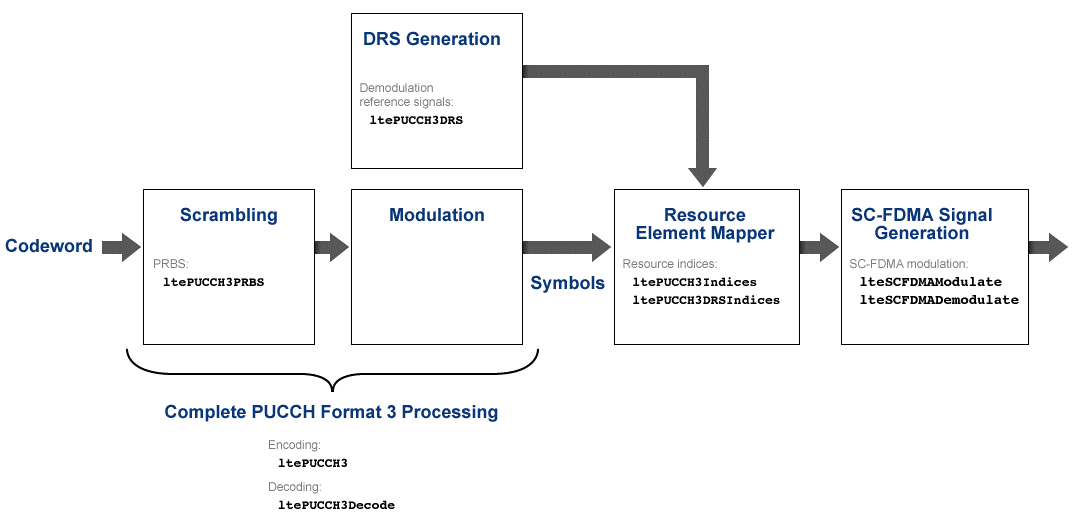

The complete physical uplink control channel format 3 process and associated low-level and mid-level PUCCH format 3 functions are shown in the following block diagram.

For more information about a function in the diagram, click the relevant function name.
