Read, Process, and View Ultrasound Data
This example shows how to import and display a 2-D multiframe ultrasound series, and how to apply a denoising filter to each frame of the series.
You can use the
medicalImage object to import image data and metadata from 2-D medical images and series of images related by time. In this example, you use the properties and the
extractFrame object function of a
medicalImage object to work with a multiframe echocardiogram ultrasound series.
Read Ultrasound Image Series
Specify the name of an echocardiogram ultrasound series contained in a DICOM file.
filename = "heartUltrasoundSequenceVideo.dcm";
Read the metadata and image data from the file by creating a
medicalImage object. The image data is stored in the
Pixels property. Each frame of the image series is a 600-by-800-by-3 pixel RGB image. The
FrameTime property indicates that each frame has a duration of 33.333 milliseconds. The
NumFrames property indicates that the series has a total of 116 image frames.
medImg = medicalImage(filename)
medImg = medicalImage with properties: Pixels: [600×800×116×3 uint8] Colormap:  SpatialUnits: "unknown" FrameTime: 33.3330 NumFrames: 116 PixelSpacing: [1 1] Modality: 'US' WindowCenter:  WindowWidth:

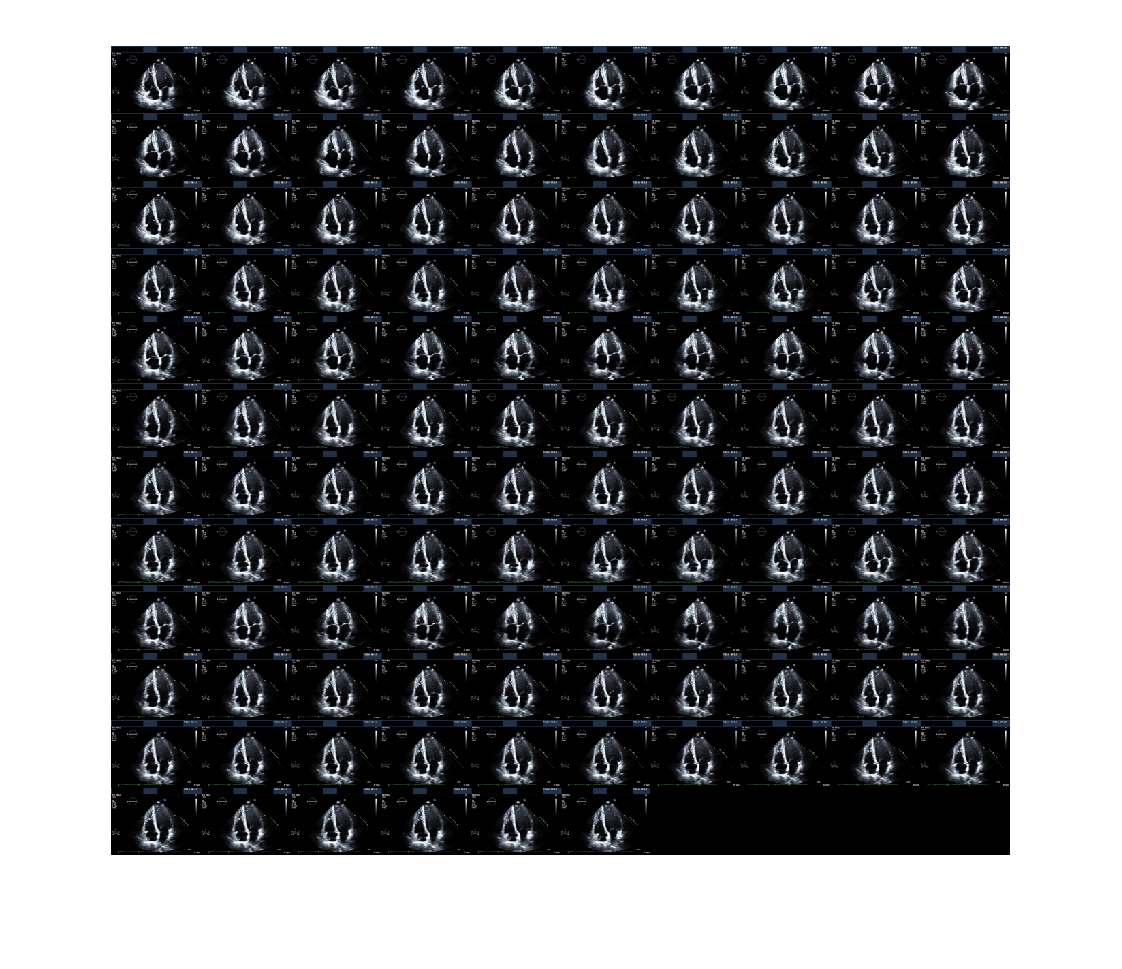

Display Ultrasound Image Frames as Montage
Display the frames in the
Pixels property of
medImg as a montage.

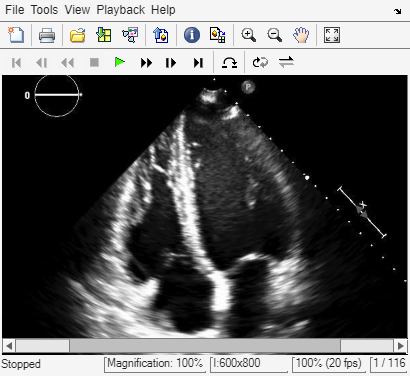

Display Ultrasound Series as Video
Open the Video Viewer app to view the ultrasound series as a video by using the
implay function. The
implay function automatically sets the frame rate using the
FrameTime property of
Reduce Speckle Noise
Reduce the noise in the ultrasound image series by applying a speckle-reducing anisotropic diffusion filter to each frame. Extract each frame from the
medicalImage object by using the
extractFrame object function, and convert the frame from RGB to grayscale. Apply the filter by using the
specklefilt function. Specify the
NumIterations name-value arguments to control the smoothing parameters.
[h,w,d,c] = size(medImg.Pixels); pixelsSmoothed = zeros(h,w,d); for i = 1:d Ii = extractFrame(medImg,i); Ii = im2double(im2gray(Ii)); pixelsSmoothed(:,:,i) = specklefilt(Ii,DegreeOfSmoothing=0.6,NumIterations=50); end
Store Smoothed Data as Medical Image Object
Create a new
medicalImage object that contains the smoothed image pixels. Use the property values from the original file to maintain the correct frame information.
medImgSmoothed = medImg; medImgSmoothed.Pixels = pixelsSmoothed; medImgSmoothed
medImgSmoothed = medicalImage with properties: Pixels: [600×800×116 double] Colormap:  SpatialUnits: "unknown" FrameTime: 33.3330 NumFrames: 116 PixelSpacing: [1 1] Modality: 'US' WindowCenter:  WindowWidth:
View the first frame of the smoothed image series by using the
montage function with the
Indices name-value argument set to
Display the smoothed image data as a video.
