Profiling Parallel Code

The parallel profiler provides an extension of the profile command and the profile viewer specifically for workers in a parallel pool, to enable you to see how much time each worker spends evaluating each function and how much time communicating or waiting for communications with the other workers. For more information about the standard profiler and its views, see Profile Your Code to Improve Performance.

For parallel profiling, you use the mpiprofile command in a similar way to how you use profile.

Profile Parallel Code

This example shows how to profile parallel code using the parallel profiler on workers in a parallel pool.

Create a parallel pool.

numberOfWorkers = 3;
pool = parpool(numberOfWorkers);
Starting parallel pool (parpool) using the 'local' profile ...
Connected to the parallel pool (number of workers: 3).

Collect parallel profile data by enabling mpiprofile.

mpiprofile on

Run your parallel code. For the purposes of this example, use a simple parfor loop that iterates over a series of values.

values = [5 12 13 1 12 5];
tic;
parfor idx = 1:numel(values)
    u = rand(values(idx)*3e4,1);
    out(idx) = max(conv(u,u));
end
toc
Elapsed time is 31.228931 seconds.

After the code completes, view the results from the parallel profiler by calling mpiprofile viewer. This action also stops profile data collection.

mpiprofile viewer

The report shows execution time information for each function that runs on the workers. You can explore which functions take the most time in each worker.

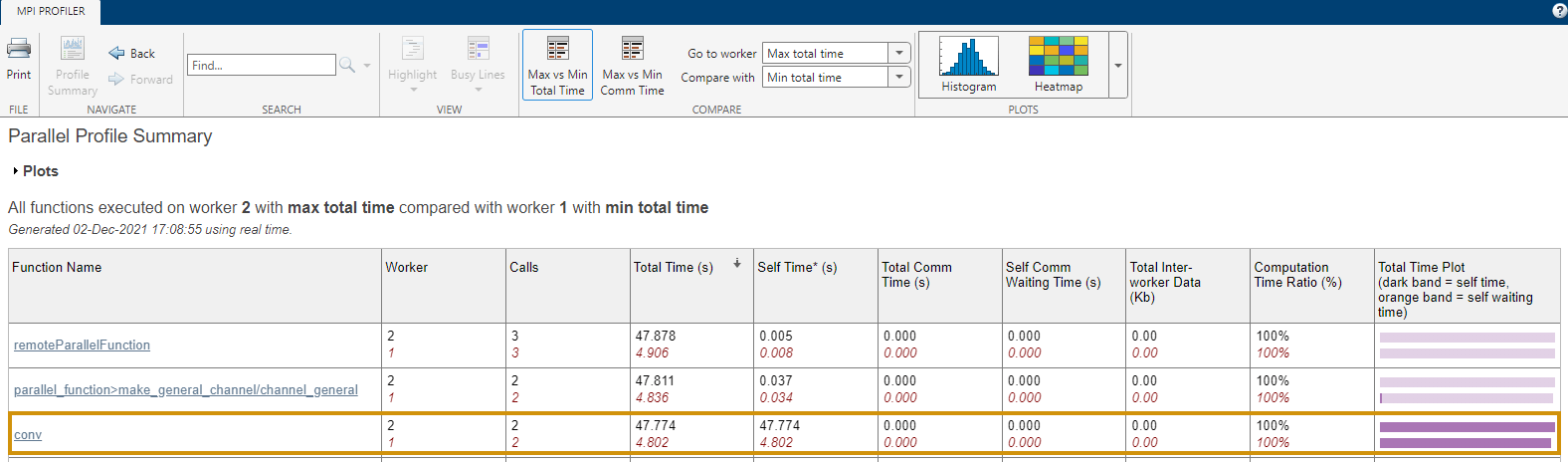

Generally, comparing the workers with the minimum and maximum total execution times is useful. To do so, click Compare (max vs. min TotalTime) in the report. In this example, observe that conv executes multiple times and takes significantly longer in one worker than in the other. This observation suggests that the load might not be distributed evenly across the workers.

  • If you do not know the workload of each iteration, then a good practice is to randomize the iterations, such as in the following sample code.

values = values(randperm(numel(values)));
  • If you do know the workload of each iteration in your parfor loop, then you can use parforOptions to control the partitioning of iterations into subranges for the workers. For more information, see parforOptions.

In this example, the greater values(idx) is, the more computationally intensive the iteration is. Create a set of parfor options to divide the parfor iterations into subranges of size 2 so that the workload is better distributed.

opts = parforOptions(pool,"RangePartitionMethod","fixed","SubrangeSize",2);

Enable the parallel profiler.

mpiprofile on

Run the same code as before. To use the parfor options, pass them to the second input argument of parfor.

values = [5 12 13 1 12 5];
tic;
parfor (idx = 1:numel(values),opts)
    u = rand(values(idx)*3e4,1);
    out(idx) = max(conv(u,u));
end
toc
Elapsed time is 21.077027 seconds.

Visualize the parallel profiler results.

mpiprofile viewer

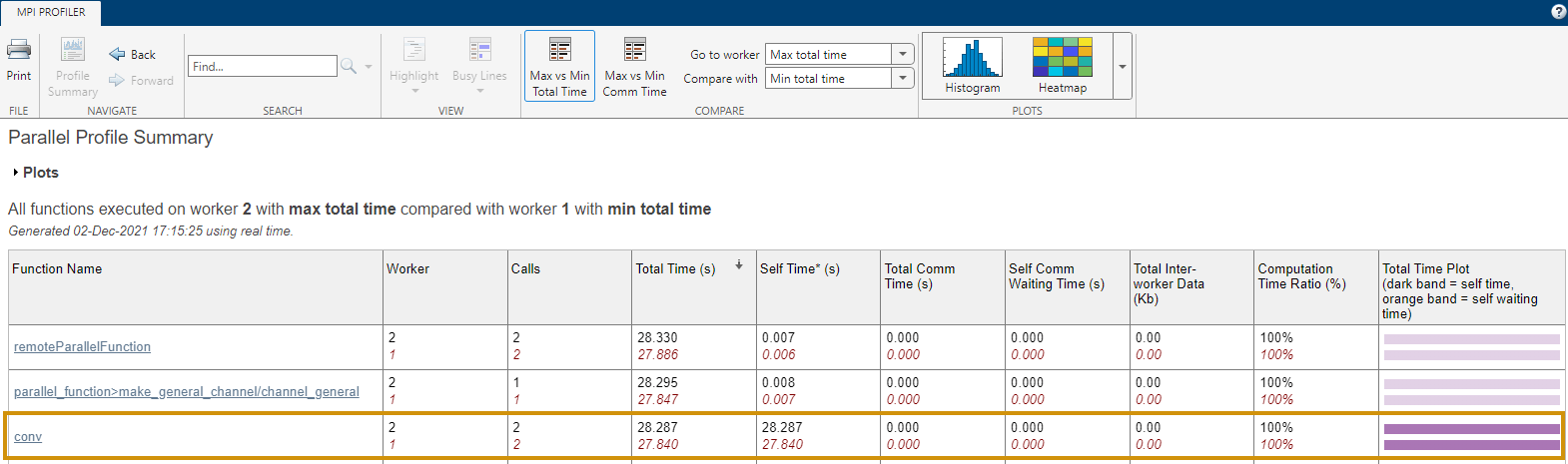

In the report, select Compare (max vs. min TotalTime) to compare the workers with the minimum and maximum total execution times. Observe that this time, the multiple executions of conv take a similar amount of time in all workers. The workload is now better distributed.

Analyze Parallel Profile Data

The profiler collects information about the execution of code on each worker and the communications between the workers. Such information includes:

  • Execution time of each function on each worker.

  • Execution time of each line of code in each function.

  • Amount of data transferred between each worker.

  • Amount of time each worker spends waiting for communications.

The remainder of this section is an example that illustrates some of the features of the parallel profile viewer. The example profiles parallel execution of matrix multiplication of distributed arrays on a parallel pool of cluster workers.

parpool
Starting parallel pool (parpool) using the 'MyCluster' profile ...
Connected to the parallel pool (number of workers: 64).
R1 = rand(5e4,'distributed');
R2 = rand(5e4,'distributed');
mpiprofile on
R = R1*R2;
mpiprofile viewer

The last command opens the Profiler window, first showing the Parallel Profile Summary (or function summary report) for worker 1.

The function summary report displays the data for each function executed on a worker in sortable columns with the following headers:

Column HeaderDescription
CallsHow many times the function was called on this worker
Total TimeThe total amount of time this worker spent executing this function
Self TimeThe time this worker spent inside this function, not within children or local functions
Total Comm TimeThe total time this worker spent transferring data with other workers, including waiting time to receive data
Self Comm Waiting TimeThe time this worker spent during this function waiting to receive data from other workers
Total Inter-worker DataThe amount of data transferred to and from this worker for this function
Computation Time RatioThe ratio of time spent in computation for this function vs. total time (which includes communication time) for this function
Total Time PlotBar graph showing relative size of Self Time, Self Comm Waiting Time, and Total Time for this function on this worker

Select the name of any function in the list for more details about the execution of that function. The function detail report for codistributor1d.hMtimesImpl includes this listing:

The code that the report displays comes from the client. If the code has changed on the client since the communicating job ran on the workers, or if the workers are running a different version of the functions, the display might not accurately reflect what actually executed.

You can display information for each worker, or use the comparison controls to display information for several workers simultaneously. Two buttons provide Automatic Comparison Selection, so you can compare the data from the workers that took the most versus the least amount of time to execute the code, or data from the workers that spent the most versus the least amount of time in performing interworker communication. Manual Comparison Selection allows you to compare data from specific workers or workers that meet certain criteria.

The following listing from the summary report shows the result of using the Automatic Comparison Selection of Compare (max vs. min TotalTime). The comparison shows data from worker 50 compared to worker 62 because these are the workers that spend the most versus least amount of time executing the code.

The following figure shows a summary of all the functions executed during the profile collection time. The Manual Comparison Selection of max Time Aggregate means that data is considered from all the workers for all functions to determine which worker spent the maximum time on each function. Next to each function's name is the worker that took the longest time to execute that function. The other columns list the data from that worker.

The next figure shows a summary report for the workers that spend the most versus least time for each function. A Manual Comparison Selection of max Time Aggregate against min Time >0 Aggregate generated this summary. Both aggregate settings indicate that the profiler should consider data from all workers for all functions, for both maximum and minimum. This report lists the data for codistributor1d.hMtimesImpl from workers 50 and 62, because they spent the maximum and minimum times on this function. Similarly, other functions are listed.

Select a function name in the summary listing of a comparison to get a detailed comparison. The detailed comparison for codistributor1d.hMtimesImpl looks like this, displaying line-by-line data from both workers:

To see plots of communication data, select Plot All Per Worker Communication in the Show Figures menu. The top portion of the plot view report plots how much data each worker receives from each other worker for all functions.

To see only a plot of interworker communication times, select Plot Communication Time Per Worker in the Show Figures menu.

Plots like those in the previous two figures can help you determine the best way to balance work among your workers, perhaps by altering the partition scheme of your codistributed arrays.
