Run GoogleTest Tests Using Polyspace Platform Projects

The Polyspace Platform user interface allows you to run C/C++ tests written using a graphical/tabular format or using C/C++ code. If you write tests in C/C++, you can either write them using the xUnit-based API from Polyspace^® Test™ or use an external framework such as GoogleTest. This topic describes how to import GoogleTest tests in the Polyspace Platform user interface.

Example Files

Find the files for this tutorial in the folder polyspaceroot\polyspace\examples\doc_pstest\google_test. Copy these files to a writable location and continue the tutorial. Here, polyspaceroot is the Polyspace installation folder, for instance, C:\Program Files\Polyspace\R2026a.

The example folder contains the following:

• Source file hUserCode.cpp, which contains two functions, return_zero() and tested_function().

• Header file hUserCode.hpp, which contains declarations of the above functions.

• Test file hGoogleTest.cpp, which contains tests for the function tested_function().

To run tests authored using the GoogleTest framework, you also need GoogleTest includes and libraries. You can install all required files from the GoogleTest repository. In this topic, the term googleTestInstallFolder refers to the main folder containing GoogleTest files. For instance, if you run this command:

git clone https://github.com/google/googletest.git -b v1.13.0

The folder from which you run the command will contain a googletests subfolder. In this case, googleTestInstallFolder is the full path to the googletests subfolder.

Set Up Project for External Test Execution

In the Polyspace Platform user interface, create a new project and add the source file hUserCode.cpp to the project. After adding the source:

1. Add the test file to your project:

   1. Right-click the project node and select Add External Test Files.

      Instead of adding individual files, you can also add a folder containing test files. Right-click the project node and select Add External Test Folder.

   2. Navigate to the location of the test file hGoogleTest.cpp and add this file.

   To see all test files and folders added to the project, select the Project tab of the Configuration pane. On this tab, you can see the test files and folders explicitly added to the project in the sections External test files and External test folders respectively.

2. Configure your project to run tests written using the GoogleTest framework. Double-click the Configuration node of the project, and then set these options:

   • On the Project tab, set the option Include paths as the path to the folder containing the header file hUserCode.hpp.

   • On the External Tests node of the Project tab, leave the option Use GoogleTest selected.

     For more information on running GoogleTest tests with non-default options, see Use GoogleTest with non-default options.

   • On the Target & Compiler node of the Build tab, set these options:

     Option	Value
     Source code language	CPP
     Extra flags for linking	If you run your tests on a Linux® host, set this option to -pthread to link the POSIX Threads (pthread) library. If you run tests on a Windows® host with the Microsoft® Visual C++® (MSVC) compiler and your tests use a library compiled in debug mode, set this option to /MTd to link the library.

   • On the Target & Compiler > External Tests node of the Build tab, specify the following options:

     Option	Value
     Include paths for external tests	Add the path googleTestInstallFolder\googletest\include and select Subfolders.
     Library paths for external tests	Add the path googleTestInstallFolder\googletest\build\lib\Release. This folder contains GoogleTest libraries (see next row in table). In your GoogleTest installation, the libraries might be in another folder.
     Libraries for external tests	Add the names of the libraries that you use to build GoogleTest tests. For instance, for building the tests, you might add these two static libraries: Windows: gtest.lib gtest_main.lib Linux: libgtest.a libgtest_main.a macOS: libgtest.dylib libgtest_main.dylib You can build GoogleTest as a standalone project to get the libraries. For more information, see GoogleTest Build Instructions. Make sure that the compiler that you use to build your tests is the same as the compiler used to build the GoogleTest libraries.

3. If you want coverage results along with test execution results, in the PROFILING section of the Polyspace Platform toolstrip, instead of No Profiling, select Code Coverage.

Run Tests and Review Results

After the initial setup, you are ready to build and run tests written using the GoogleTest API.

1. On the Projects pane, right-click the External Tests node and select Build Tests.

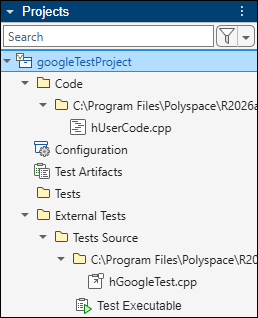

   The sources and external tests are built along with the GoogleTest libraries. On the Projects pane, you see a Test Executable node below the External Tests node:



   Note that when building with host compilers other than MinGW, the option -SUBSYSTEM:console is automatically added during build.

   If you run into build errors, see Troubleshoot Building GoogleTest Tests from Polyspace Platform Projects.

2. On the Projects pane, right-click the External Tests node and select Run Tests.

   After the tests execute, on the Results pane, you see a new entry corresponding to the results of test execution. The entry contains two nodes:

   • Tests corresponding to test execution results.

     This example contains one failing test, therefore the overall test execution status shows a failure.

   • Coverage corresponding to code coverage results.



Double-click one of the nodes to open further details of test execution or code coverage results.

Automate Test Execution

You can also run GoogleTest tests in a Polyspace Platform project at the command line. To run all GoogleTest tests in a project:

1. Open a terminal and navigate to the project location.

2. Enter the following command to run all GoogleTest tests in a project:

   polyspace-test -run -project myProject.psprjx -test External:

   Here, myProject.psprjx is the name of the Polyspace Platform project.

   To run a specific test, for instance, the test myTest in the suite mySuite, enter the following command:

   polyspace-test -run -project myProject.psprjx -test External:mySuite.myTest

For more information, see polyspace-test -run.
