UDP Send

R2026b

Send UDP packets over IP network

•

UDP Send block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Raspberry Pi Blockset / Network

Description

The UDP Send block sends UDP packets to a UDP host. Use the block for stateless and connectionless data transmission.

Your antivirus software or firewall might block UDP traffic. Configure the software to allow traffic from a specific IP port number.

Note

To generate C/C++ code for this block, you must have an Embedded Coder^® license.

Examples

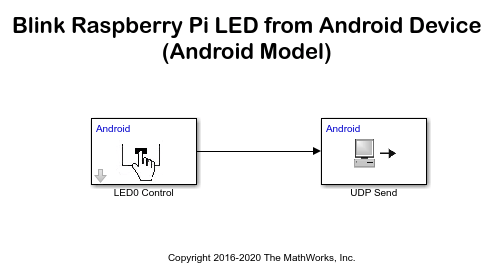

Control Status of LED on Raspberry Pi from Android Device

Control Raspberry Pi® LED from an Android® device.

• Open Model

Build Surveillance Camera Using Android and Raspberry Pi

Use Raspberry Pi® hardware and an Android® device to build a surveillance camera.

• Open Model

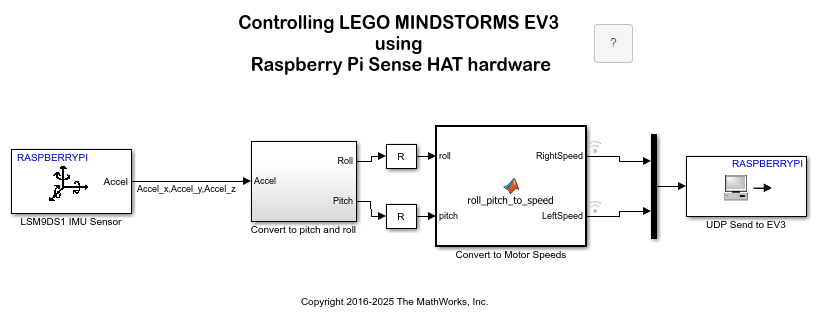

Control LEGO MINDSTORMS EV3 Robot Using Raspberry Pi Sense HAT

Read the Accelerometer on Raspberry Pi® Sense HAT and use this data to control the motion of a LEGO® MINDSTORMS® EV3 robot.

• Open Model

Ports

Input

Port_1 — Input data

vector

The block accepts an array and sends it as UDP packets over an IP network port to the receiving UDP host.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Parameters

Remote IP address ('255.255.255.255' for broadcast) —

'255.255.255.255' (default) | any valid IP address

Specify the IP address or the host name to which the block sends the UDP packets. To broadcast packets to all the receiving hosts, specify '255.255.255.255'.

Remote IP port — IP port on receiving host to which data is sent

25000 (default) | positive integer in the range [1,65535]

Specify the port number of the application on the receiving host to which you want to send the packets. Match the remote port number with the local port number of the receiving host.

Programmatic Use: Add Block

To add the block programmatically, use the add_block function with one of these library block paths as the source.

"raspberrypiNetworklib/UDP Send"

Example: add_block("raspberrypiNetworklib/UDP Send","myModel/myBlock",MakeNameUnique="on")

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

To generate C/C++ code for this block, you must have an Embedded Coder license. For more information on selecting the right product stack according to your development goals, see Product Stack for Raspberry Pi Blockset.

Version History

Introduced in R2013a
