ROS Parameters in Simulink

These examples show how to get, set, compare, and manipulate ROS parameters in Simulink^®. To run these examples, you must first set up a ROS network using rosinit. To set network-wide settings and share values with the whole network, start a ROS parameter server using rosparam. Follow these examples to see how to work with parameters in Simulink, including using string parameters.

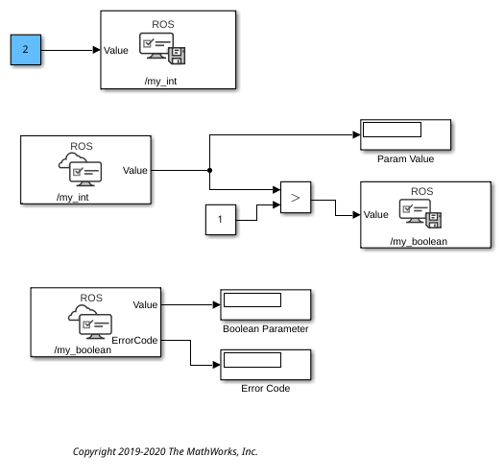

Get and Set ROS Parameters

This model gets and sets ROS parameters using Simulink®. This example illustrates how to use ROS parameters in Simulink and to share data over the ROS network. An integer value is set as a parameter on the ROS network. This integer is retrieved from the parameter server and compared to a constant. The output Boolean from the comparison is also set on the network. Change the constant block in the top left (blue) when you run the model to set network parameters based on user input conditions.

You must be connected to a ROS network. Call rosinit in the MATLAB® command line.

Set String Parameter on ROS Network

To create your string parameter, use a String Constant block and convert it to uint8 using a MATLAB function block. The converted uint8 string is passed into the Set Parameter block along with the extra input, Length, specified with a second Constant block. The Length refers to the maximum expected string length and is required for all string parameters. For more information, see the Set Parameter block.

Compare ROS String Parameters

On ROS networks, strings parameters are stored as a uint8 array. When you get from string parameters from the server, they are returned as a char array. In Simulink®, they are cast as uint8, so you must use uint8 character vectors when comparing to the ROS string parameters. You can use this comparison to trigger subsystems for larger models or validate settings for specific algorithms.

Connect to a ROS network. Set up the ROS Parameter tree.

rosinit

Launching ROS Core...
Status before launching ros core :0
result before launching ros core:     886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70535 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70537 pts/2    S+     0:00 grep -E ros|python

Done in 0.64269 seconds.
* Inside getProcessPID function *
Process Name: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
Status before getting PID :0
Result before getting PID :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70560 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70562 pts/2    S+     0:00 grep -E ros|python

Result:   70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3

Status: 0
PID obtained: 70540
Status after getting PID :0
Result after getting PID :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70567 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70569 pts/2    S+     0:00 grep -E ros|python

* Exiting getProcessPID function *
Status after launching ros core :0
result after launching ros core:     886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70570 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70572 pts/2    S+     0:00 grep -E ros|python

Status before deleting node :0
Result before deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70573 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 613 -1 -mvmOutputPipe -1 666
  70588 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70590 pts/2    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70594 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70596 pts/2    S+     0:00 grep -E ros|python

Initializing ROS master on http://172.30.38.188:49185.
Initializing global node /matlab_global_node_40528 with NodeURI http://dcc663585glnxa64:43531/ and MasterURI http://localhost:49185.

ptree = rosparam;

Set a ROS parameter, /camera_format, to a string value. You can use string scalars or character vectors. The value is stored as a uint8 array on the ROS parameter server and returned as 'jpeg' in MATLAB®.

set(ptree,"/camera_format","jpeg")
pause(1)
pvalue = get(ptree,"/camera_format")

pvalue =
'jpeg'

Run the attached Simulink® model. This model checks to see if the previously set camera format parameter is named 'jpeg'. To get the parameter off the server, use the Get Parameter block. Then, compare the parameter to a character vector cast as uint8 from a Constant block, using a MATLAB function block. An output of 1 means the parameters match.

open_system("rosStringParameterCompare")
sim("rosStringParameterCompare");

Status before deleting node :0
Result before deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70597 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 613 -1 -mvmOutputPipe -1 666
  70693 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 610 -1 -mvmOutputPipe -1 695
  70709 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70711 pts/2    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70597 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 613 -1 -mvmOutputPipe -1 666
  70716 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70718 pts/2    S+     0:00 grep -E ros|python

Shutdown ROS network.

rosshutdown

Shutting down global node /matlab_global_node_40528 with NodeURI http://dcc663585glnxa64:43531/ and MasterURI http://localhost:49185.
Status before deleting node :0
Result before deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70597 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 613 -1 -mvmOutputPipe -1 666
  70720 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70722 pts/2    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70726 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70728 pts/2    S+     0:00 grep -E ros|python

Shutting down ROS master on http://172.30.38.188:49185.
Status before deleting core :0
Result before deleting core :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70540 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 49185 -w 3
  70552 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 49185 -w 3
  70729 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70731 pts/2    S+     0:00 grep -E ros|python

* Inside killProcessByPID function *
PID of core to be killed: 70540
Status after Child Process Killed: 0
Result after Child Process Killed:
Status after deleting core :0
Result after deleting core :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70736 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70738 pts/2    S+     0:00 grep -E ros|python

* Exiting killProcessByPID function *

The stringCompare function is defined as:

function y = stringCompare(str1,str2)
%#codegen
minLength = min(length(str1),length(str2));
st1 = str1(1:minLength);
st2 = str2(1:minLength);
y = all(st1(:)==st2(:));

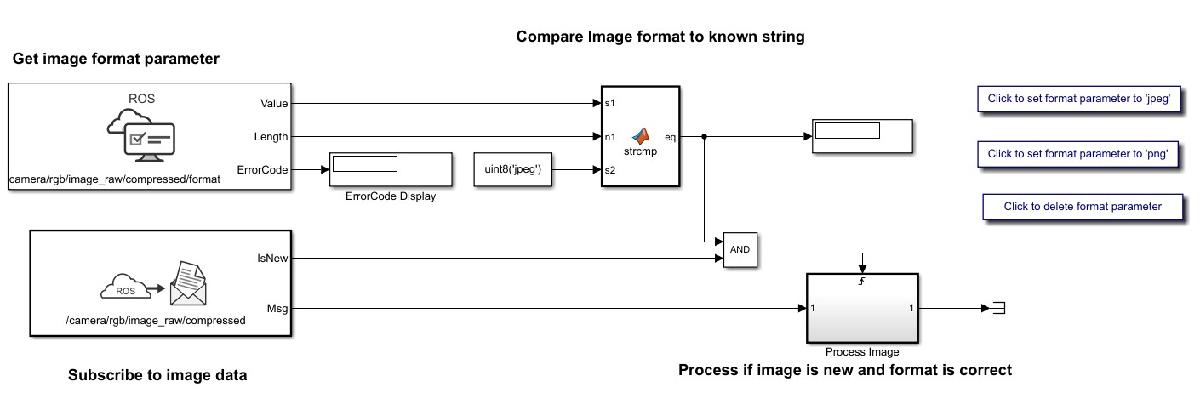

Check Image Encoding Parameter for ROS Image Message

This model shows how to access string parameters and use them to trigger subsystem operations. It gets an image format off the set up ROS parameter server. It is retrieved as a uint8 array that is compared using the strcmp MATLAB function block. When a new image is received from the Subscribe block and the format is uint8('jpeg'), it triggers the "Process Image" block to perform a task on the image data.

Connect to a ROS network and set up the ROS parameter server.

rosinit

Launching ROS Core...
Status before launching ros core :0
result before launching ros core:     886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70341 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70343 pts/2    S+     0:00 grep -E ros|python

.Done in 1.4968 seconds.
* Inside getProcessPID function *
Process Name: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
Status before getting PID :0
Result before getting PID :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
  70358 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 52728 -w 3
  70366 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70368 pts/2    S+     0:00 grep -E ros|python

Result:   70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3

Status: 0
PID obtained: 70346
Status after getting PID :0
Result after getting PID :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
  70358 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 52728 -w 3
  70373 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70375 pts/2    S+     0:00 grep -E ros|python

* Exiting getProcessPID function *
Status after launching ros core :0
result after launching ros core:     886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
  70358 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 52728 -w 3
  70376 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70378 pts/2    S+     0:00 grep -E ros|python

Status before deleting node :0
Result before deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
  70358 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 52728 -w 3
  70379 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 610 -1 -mvmOutputPipe -1 644
  70394 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70396 pts/2    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
  70358 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 52728 -w 3
  70401 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70403 pts/2    S+     0:00 grep -E ros|python

Initializing ROS master on http://172.30.38.188:52728.
Initializing global node /matlab_global_node_59604 with NodeURI http://dcc663585glnxa64:38419/ and MasterURI http://localhost:52728.

ptree = rosparam;

Set the "/camera/rgb/image_raw/compressed/format" parameter, and set up a publisher for the "/camera/rgb/image_raw/compressed" topic.

set(ptree,"/camera/rgb/image_raw/compressed/format","jpeg")
pub = rospublisher("/camera/rgb/image_raw/compressed","sensor_msgs/CompressedImage");

Open the Simulink® model. This model checks the image format parameter and compares the value to a uint8 cast character vector, uint8('jpeg') using a MATLAB® Function block. The boolean output is fed to an AND operator with the IsNew output of a Subscribe block that gets the image off the network. If the parameter value is correct and a new message is received, the Subsystem "Process Image" is triggered.

Run the model and use the buttons in the model to change the image format parameter and verify the strcmp function works. The eq output should be 1 when the parameter is set to 'jpeg'. While the model is running, it is expected that image messages are being published on the network.

open_system("rosImageFormatParameter")

Shut down the ROS network.

rosshutdown

Shutting down global node /matlab_global_node_59604 with NodeURI http://dcc663585glnxa64:38419/ and MasterURI http://localhost:52728.
Status before deleting node :0
Result before deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
  70358 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 52728 -w 3
  70404 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 610 -1 -mvmOutputPipe -1 644
  70488 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70490 pts/2    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
  70358 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 52728 -w 3
  70495 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70497 pts/2    S+     0:00 grep -E ros|python

Shutting down ROS master on http://172.30.38.188:52728.
Status before deleting core :0
Result before deleting core :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70346 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25a_2864802_2715419/tpebfccb24_9049_4a3d_a466_8d36391eb4d1/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 52728 -w 3
  70358 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 52728 -w 3
  70498 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70500 pts/2    S+     0:00 grep -E ros|python

* Inside killProcessByPID function *
PID of core to be killed: 70346
Status after Child Process Killed: 0
Result after Child Process Killed:
Status after deleting core :0
Result after deleting core :    886 ?        Ssl    1:20 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1601 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
  66994 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67024 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25a_2864802_2715419 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67037 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25a/logs/2864802/build.glnxa64.2864802.r001/examples/ros/build.glnxa64.2864802.r001.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  67089 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
  68629 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 599 -1 -mvmOutputPipe -1 609
  70505 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
  70507 pts/2    S+     0:00 grep -E ros|python

* Exiting killProcessByPID function *

The strcmp function in the MATLAB® Function block is defined as:

function eq = strcmp(s1, n1, s2)
%#codegen

% Convert to proper strings
string1 = char(s1(1:n1));
string2 = char(s2);

eq = strcmp(string1, string2);
