Entity Find

Find entities

•

Libraries:
SimEvents

Description

The Entity Find block finds entities that use a specific resource. The block receives a trigger entity from its input port. Upon receiving the trigger entity, it initiates a search across all blocks in a model for entities with a specific resource. You can further filter the search for finding entities by adding additional filtering conditions. The block can manipulate the found entities in these ways.

• Search entities that satisfy a specific condition across blocks in a model to find and examine them.

• Extract found entities from the model without modifying them.

• Change the attributes of the found entities at their location in the model without extraction.

  In this case, to customize actions when the entity is found, in the Event actions tab, in the On found action field enter MATLAB^® code.

• Extract and change entity attributes. The extracted entities are queued in the block and rerouted through its output port.

  In this case, to customize actions when entities enter, exit, or are blocked, enter MATLAB code in the Entry action, Exit action, or Blocked action field of the Event actions tab. For more information, see Write Event Actions for Legacy Models.

The block can extract entities from Entity Server, Entity Queue, Entity Store, Resource Acquirer, Entity Replicator, Conveyor System, Entity Selector, MATLAB Discrete-Event System, and Discrete-Event Chart blocks.

When an entity is extracted, pending events and statistics are updated accordingly. For instance, if an entity is extracted by an Entity Find block from an Entity Server block during the service period, the rest of the service is canceled and the output of the statistics are updated.

Note

The block can find only one entity type that you specify in the model and it cannot find or extract entities across model reference boundaries.

For more information about common workflows involving Entity Find block, see Find and Extract Entities in SimEvents Models.

Examples

Find and Examine Entities

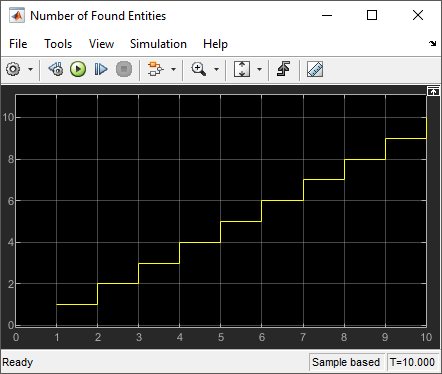

Use the Entity Find block to find and examine entities at their location. In this example, the block finds entities that are tagged with a resource from the Resource Pool block.

• Open Model

Inventory Management

Build a simple inventory management system for a retail store. This example includes:

• Open Model

Ports

Input

Port_1 — Input entities to trigger finding entities

scalar | vector | matrix

Input port for entities to trigger the event of finding entities using a specific resource.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated | bus | fixed point

Output

Port_1 — Output found entity

scalar | vector | matrix

Output entity port for entities that are found by the block.

Dependencies

To enable this port, select the Extract found entities checkbox.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated | bus | fixed point

Port_f — Number of entities found

scalar

Number of entities that are found by the block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Number of entities found, f.

Data Types: double

Port_d — Number of entities that have departed the block

scalar

Number of entities that have departed the block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Number of entities departed, d.

Data Types: double

Port_n — Number of found entities that have not yet departed the block

scalar

Number of found entities that have not yet departed the block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Number of found entities in block, n.

Data Types: double

Port_w — Average wait time for found entities in the block

scalar

Average wait time for found entities in the block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Average wait, w.

Data Types: double

Port_l — Average length of the found entity queue

scalar

Outputs the average length of the found entity queue.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Average queue length, l.

Data Types: double

Port_ex — Number of entities extracted

scalar

Number of entities that are extracted out of this block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Number of entities extracted, ex.

Data Types: double

Parameters

Main

Resource — Specify the name of the reference resource the entities use

Resource1 (default) | character vector

Name of the reference resource that is used by the entities to be found by the block.

Programmatic Use

Block Parameter: ResourceName

Type: character vector

Values: resource name

Default: 'Resource1'

Extract found entities — Extract and reroute found entities

off (default) | on

Extract and output the entities that are found in the search.

Programmatic Use

Block Parameter: EnableOutput

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Additional filtering condition — Add optional filtering condition

off (default) | on

Enable the option to define additional matching conditions for finding entities. If selected, a MATLAB editor appears where you can define additional matching conditions.

Programmatic Use

Block Parameter: EntityFilter

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Matching condition — Define the matching condition

match = true; (default)

Use MATLAB code to define additional matching conditions for finding entities. The block searches for entities such that the value of the boolean variable match becomes true. For instance, when

match = isequal(trigger.Attribute1, entity.Attribute1);

the block finds entities that have the same Attribute1 value with the trigger entity, because only their equality sets the match as true.

While authoring additional matching conditions, you can use these variables.

• trigger — Use to access the trigger entity attributes.

• entity — Use to access the attributes of the entity that is being found.

• match — Use as a Boolean value to be returned by the matching condition. The value of match is initialized as false.

Dependencies

This check box appears if the Additional filtering condition check box in the Main tab is selected.

Programmatic Use

Block Parameter: MatchingCondition

Type: character vector

Values: MATLAB code

Default: '% match = isequal(trigger.Attribute1, entity.Attribute1);match = true;'

Event Actions

Event actions — Specify the event action

OnFound (default) | Entry | Exit | Blocked

Specify the behavior of the entity on certain events. For example, the Entry action is called when the entity enters the block. To customize actions when entities enter, exit, or are found or blocked, enter MATLAB code in the Entry action, Exit action, On found action, or Blocked action field of the Event actions tab. For more information about event actions, see Events and Event Actions. For an example, see Manage Entities Using Event Actions

Dependencies

On found action appears only if the Extract found entities check box is not selected.

Entry action, Exit action, and Blocked action appear only if the Extract found entities check box is selected.

Programmatic Use

Block Parameter: EntryAction, ExitAction, BlockedAction

Type: character vector

Values: MATLAB code

Default: ''

Statistics

Number of entities found, f — Outputs the number of entities that are found

off (default) | on

Number of entities that are found by the block during simulation.

Programmatic Use

Block Parameter: NumberEntitiesDeparted

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Number of entities departed, d — Outputs the number of entities that have departed the block

off (default) | on

Number of entities that have departed the block.

Dependencies

This check box appears if the Extract found entities check box in the Main tab is selected.

Programmatic Use

Block Parameter: NumberEntitiesDeparted

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Number of found entities in block, n — Outputs the number of found entities that are yet to depart

off (default) | on

Number of found entities that are yet to depart.

Dependencies

This check box appears if the Extract found entities check box in the Main tab is selected.

Programmatic Use

Block Parameter: NumberEntitiesInBlock

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Average wait, w — Outputs the average wait time

off (default) | on

Sum of the wait times for entities departing the block divided by their total number. Wait time is the duration between the Entity Find block entry and exit of an entity. For more information, see Interpret SimEvents Models Using Statistical Analysis.

Dependencies

This check box appears if the Extract found entities check box in the Main tab is selected.

Programmatic Use

Block Parameter: AverageWait

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Average queue length, l — Outputs the average length of the entity queue

off (default) | on

Accumulated time-weighted average queue size. The block computes this value by:

1. Multiplying the size of the queue by its duration to calculate time-weighted queue size

2. Summing up all time-weighted queue sizes and averaging them over total time

For more information, see Interpret SimEvents Models Using Statistical Analysis.

Dependencies

This check box appears if the Extract found entities check box in the Main tab is selected.

Programmatic Use

Block Parameter: AverageStoreSize

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Number of entities extracted, ex — Number of entities extracted from this block

off (default) | on

Outputs the number of extracted entities.

Dependencies

This check box appears if the Extract found entities check box in the Main tab is selected.

Programmatic Use

Block Parameter: NumEntitiesExtracted

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Version History

Introduced in R2018b
