# Sliding Mode Controller (Reaching Law)

**Libraries:**

Simulink Control Design /
Sliding Mode

## Description

Sliding Mode Control (SMC) is a robust control strategy that brings the system state trajectory to a specified sliding surface and maintains it there. This approach is advantageous for systems requiring high levels of precision and robustness, especially in the presence of disturbances and uncertainties. Once the system reaches the sliding surface, SMC ensures that it stays on this path despite any external or internal changes to system dynamics.

The Sliding Mode Controller block enables you to implement SMC for nonlinear systems characterized by the equation $$\dot{x}=f(x)+g(x)u$$. Using this block, you can create a compensator which uses a reaching law, a method that dynamically adjusts control actions to guide the system states toward the sliding surface efficiently. The block provides the following two modes of operation:

Regulation mode

$$\begin{array}{l}u={\left({C}^{T}g(x)\right)}^{-1}\left(-{C}^{T}f(x)+h(s(x))\right)\\ s(x)={C}^{T}x\end{array}$$

Tracking mode

$$\begin{array}{l}u={\left({C}^{T}g(x)\right)}^{-1}\left({C}^{T}{\dot{x}}_{ref}-{C}^{T}f(x)+h(s(x))\right)\\ s(x)={C}^{T}({x}_{ref}-x)\end{array}$$

Here, *C* is the sliding coefficient matrix,
*s*(*x*) is the sliding surface, and
*h*(*s*(*x*)) is the reaching
law.

Additionally, SMC minimizes chattering effects, a common challenge in control systems characterized by rapid oscillation or high-frequency switching of the control signal. The block allows you to customize the sliding surface and adjust the reaching law parameters. This enables you to tune the control strategy to your specific system dynamics and objectives, enhancing the system stability and response under varying conditions.

For more information about SMC, see Sliding Mode Control.

## Examples

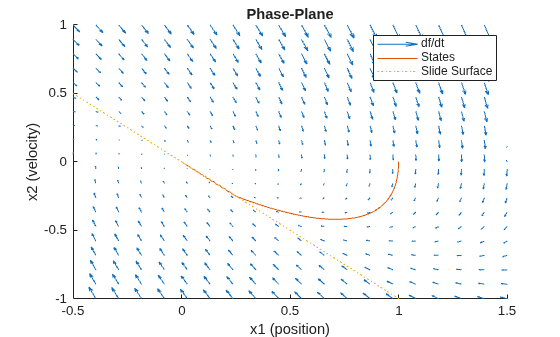

### Sliding Mode Control Design for Mass-Spring-Damper System

A sliding mode controller defines a sliding surface that the system state converges to and remains on.

- Since R2024b
- Open Live Script

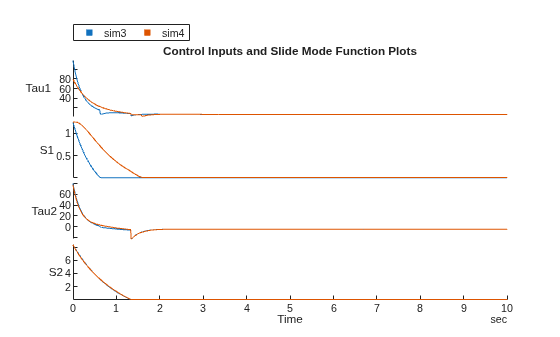

### Sliding Mode Control Design for a Robotic Manipulator

Create a sliding mode controller for a robotic manipulator with two actuated joints.

- Since R2024b
- Open Live Script

## Ports

### Input

**x** — System states

vector

System states, specified as an
*n _{x}*-by-1 signal, where

*n*is the number of states.

_{x}**Data Types: **`single`

| `double`

**f(x)** — System dynamics function

vector

System dynamics function *f*(*x*) in
the systems characterized by the equation $$\dot{x}=f(x)+g(x)u$$.

Connect this port to an
*n _{x}*-by-1 signal, where

*n*is the number of states.

_{x}**Data Types: **`single`

| `double`

**g(x)** — Input function

vector

Input function *g*(*x*) in the
systems characterized by the equation $$\dot{x}=f(x)+g(x)u$$.

Connect this port to an
*n _{x}*-by-

*n*signal, where

_{u}*n*is the number of states and

_{x}*n*is the number of inputs.

_{u}**Data Types: **`single`

| `double`

**x.ref** — State reference trajectories

vector

State reference trajectory to follow in the tracking mode, specified
as an *n _{x}*-by-1 signal, where

*n*is the number of states.

_{x}#### Dependencies

To enable this port, set **Switching Function**
to **Tracking Mode**.

**x.ref.dot** — Derivative of state reference trajectories

vector

Derivative of state reference trajectory to follow in the tracking
mode, specified as an *n _{x}*-by-1
signal, where

*n*is the number of states.

_{x}Use this port when you want to provide the derivative of state reference trajectories from an external input. Otherwise, the block computes the derivative during simulation.

#### Dependencies

To enable this port:

Set

**Switching Function**to**Tracking Mode**.Enable

**Use externally sourced derivative**.

### Output

**u** — Control action

vector

Computed control action, returned as an
*n _{u}*-by-1 signal, where

*n*is the number of inputs.

_{u}**s(x)** — Sliding variable value

vector

Sliding surface value, returned as an
*n _{u}*-by-1 signal, where

*n*is the number of inputs.

_{u}#### Dependencies

To enable this port, enable the **Output Switching
Function** parameter.

## Parameters

To edit block parameters interactively, use the
Property Inspector. From the Simulink^{®} Toolstrip, on the **Simulation** tab, in the
**Prepare** gallery, select **Property
Inspector**.

### Sliding Surface Tab

**Switching Function** — Block operation mode

**Regulation Mode** (default) | **Tracking Mode**

Block operation mode, specified as one of the following:

**Regulation Mode**— Use this mode when you want to stabilize the system at a fixed point, that is, bring all the states*x*to zero.**Tracking Mode**— Use this mode when you want the system states to follow a reference trajectory*x*._{ref}

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `TaskMode` |

Values: | ```
"Regulation
Mode"
``` (default) | `"Tracking Mode"` |

**Example: **```
set_param(gcb,"TaskMode","Tracking
Mode")
```

**Sliding Coefficient Matrix (C)** — Sliding coefficient matrix

`1`

(default) | scalar | column vector | matrix

Sliding coefficient matrix (*C*), specified as an
*n _{x}*-by-

*n*matrix, where

_{u}*n*is the number of states and

_{x}*n*is the number of control inputs.

_{u}The matrix *C* determines the hyperplane to which the sliding mode
control drives the system states.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `SlidingMatrix` |

Values: | `1` (default) | scalar in quotes | column vector in quotes | matrix in quotes |

**Example: **`set_param(gcb,"SlidingMatrix","[1;2]")`

**Use externally sourced derivative** — Specify derivative of state reference externally

`off`

(default) | `on`

Select to specify the derivative of state reference signal externally
at the input port **x.ref.dot**.

#### Dependencies

To enable this parameter, set **Switching
Function** to **Tracking
Mode**.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `EnableTrackingDerivative` |

Values: | `"off"` (default) | `"on"` |

**Example: **`set_param(gcb,"EnableTrackingDerivative","on")`

**Output Switching Function** — Output switching function

`off`

(default) | `on`

Select to return the sliding surface value at an output port
**s(x)**.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `EnableSwitchingFunction` |

Values: | `"off"` (default) | `"on"` |

**Example: **`set_param(gcb,"EnableSwitchingFunction","on")`

### Reaching Law Tab

**Reaching Law** — Reaching law

`Constant Rate`

(default) | `Exponential`

| `Power Rate`

Reaching law
*h*(*s*(*x*)) for
the sliding surface, specified as one of the following.

`Constant Rate`

— $$h\left(s\left(x\right)\right)=-{\eta}_{i}\theta \left({s}_{i}\right)$$This law provides a constant rate to reach the sliding surface. Here,

*θ*(*s*) is the boundary layer and_{i}*η*is the reaching rate of the_{i}*i*th control input.`Exponential`

— $$h\left(s\left(x\right)\right)=-{\eta}_{i}\theta \left({s}_{i}\right)-{K}_{i}{s}_{i}$$This law adds a term proportional to the sliding variable and provides a more aggressive convergence when the state deviation is significant. Here,

*K*is the control gain term that scales the control effort associated with the_{i}*i*th sliding variable.`Power Rate`

— $$h{\left(s\left(x\right)\right)}_{i}=-{\eta}_{i}{\left|{s}_{i}\right|}^{\alpha}\theta \left({s}_{i}\right)$$This law provides fast reaching speed when the state is far away from the sliding surface, but reduces the speed as the state gets near. This ensures reduced chattering and provides fast convergence.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `ReachingLaw` |

Values: | `"Constant Rate"` (default) | `"Exponential"` | `"Power Rate"` |

**Example: **```
set_param(gcb,"ReachingLaw","Power
Rate")
```

**Reaching Rate (Eta)** — Reaching rate

`0.01`

(default) | positive scalar | column vector

Reaching rate (*η*), specified as a positive scalar
or a column vector of positive values with length equal to the number of
control inputs.

Reaching rate determines the rate at which the system trajectory
approaches the sliding surface. A larger value of *η*
results in a faster convergence to the sliding surface but can also lead
to higher control effort, which is not desirable in all cases due to
potential issues like actuator saturation or increased
chattering.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `ReachingRate` |

Values: | `"0.01"` (default) | positive scalar in quotes | column vector in quotes |

**Example: **`set_param(gcb,"ReachingRate","0.05")`

**Control Gain (K)** — Control gain

`0.01`

(default) | positive scalar | column vector

Control gain of the proportional term in the exponential reaching law, specified as a positive scalar or column vector of length equal to the number of control inputs. In the exponential reaching law, this term increases the control effort proportional to the deviation from the sliding surface.

#### Dependencies

To enable this parameter, set **Reaching Law** to
`Exponential`

.

#### Programmatic Use

To get the block parameter value
programmatically, use the `get_param`

function.

Parameter: | `ControlGain` |

Values: | `"0.01"` (default) | positive scalar in quotes | column vector in quotes |

**Example: **`set_param(gcb,"ControlGain","2")`

**Power Rate Exponent (Alpha)** — Power rate exponent

`0.01`

(default) | positive scalar between 0 and 1 | column vector of positive values between 0 and 1

Exponent value in the power rate reaching law, specified as a positive
scalar between 0 and 1 or column vector of length equal to the number of
control inputs. This parameter determines the nonlinearity of the
control action with respect to the distance from the sliding surface.
Specifically, it adjusts how the control effort scales with the
magnitude of the sliding variable. The value of *α*
influences the smoothness of the approach to the sliding surface. The
lower values lead to a softer approach and potentially reduce
chattering.

#### Dependencies

To enable this parameter, set **Reaching Law** to
`Power Rate`

.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `PowerRate` |

Values: | `"0.01"` (default) | positive scalar between 0 and 1 in quotes | column vector of positive values between 0 and 1 in
quotes |

**Example: **`set_param(gcb,"PowerRate","0.02")`

**Select Boundary Layer** — Boundary layer function

`Sign`

(default) | `Relay`

| `Hyperbolic Tangent`

| `Saturation`

Boundary layer function, specified as one of the following:

`Sign`

— $$\theta \left(s\right)=sgn\left(s\left(x\right)\right)$$This option uses the default signum function and switches between –1 and 1 discontinuously.

`Relay`

— $$\theta \left(s\right)=\frac{s}{\left|s\right|+\varphi}$$This option uses a relay function to define the switching boundary around the sliding surface.

`Hyperbolic Tangent`

— $$\theta \left(s\right)=tanh\left(\frac{s}{\varphi}\right)$$This option uses a hyperbolic tangent function to define the switching boundary around the sliding surface.

`Saturation`

— $$\begin{array}{cc}\theta \left(s\right)=\{\begin{array}{c}\begin{array}{cc}1& s>\varphi \end{array}\\ \begin{array}{cc}ks& s\le \varphi \end{array}\\ \begin{array}{cc}-1& s<-\varphi \end{array}\end{array}& k=\frac{1}{\varphi}\end{array}$$This option uses a saturation function to smoothly interpolate between –1 and 1 when the sliding variable is within the boundary layer [

*–ϕ*,*ϕ*], which reduces the high-frequency switching.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `BoundaryLayer` |

Values: | `"Sign"` (default) | `"Relay"` | `"Hyperbolic Tangent"` | `"Saturation"` |

**Example: **`set_param(gcb,""BoundaryLayer,"Saturation")`

**Enable zero-crossing detection** — Enable zero-crossing detection

`off`

(default) | `on`

Select to enable zero-crossing detection. For more information, see Zero-Crossing Detection.

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `ZeroCross` |

Values: | `"off"` (default) | `"on"` |

**Example: **`set_param(gcb,"ZeroCross","on")`

**Phi** — Boundary layer thickness

`0.01`

(default) | positive scalar | column vector

Boundary layer thickness parameter, specified as a positive scalar or column vector of length equal to the number of control inputs.

This parameter defines the boundary layer thickness around the sliding
surface. A larger **Phi** value results in less
chattering but can increase the steady-state error. Conversely, a
smaller **Phi** value can reduce steady-state error but
increase chattering.

#### Dependencies

To enable this parameter, set **Select Boundary
Layer** to any one of these values:

`Relay`

`Hyperbolic Tangent`

`Saturation`

#### Programmatic Use

To set the block parameter value programmatically, use
the `set_param`

function.

Parameter: | `Phi` |

Values: | `"0.01"` (default) | positive scalar in quotes | column vector in quotes |

**Example: **`set_param(gcb,"Phi","0.05")`

## Version History

**Introduced in R2024b**

## See Also

### Topics

## Comando MATLAB

Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:

Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
