Apply Simulink Real-Time Model Template to Create Real-Time Application

This example uses:

Open Script

This example shows how to use the Simulink® Real-Time™ template to create a Simulink® model. Starting from the model template provides a new model that has configuration parameters set up for building a real-time application.

To see the Simulink Real-Time commands for each operation in this example, view the example code.

Create Simulink Model from Template

To create a Simulink model from the Simulink start page, in the MATLAB® Command Window, type:

simulink

Select the Simulink Real-Time template from the start page and create the exampleSlrealtimeApp model. Or, in the Command Window, use the Simulink.createFromTemplate command. See code for this script for full syntax.

Blocks, Connections, and Data Logging in the Model

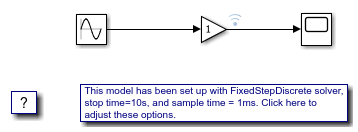

The Simulink Real-Time model template contains a Gain block that connects a Signal Generator to a Scope block. The Gain block output is marked for logging with the Simulation Data Inspector (SDI).

Create Target Object and Connect

Create a Target object for the default target computer and connect to the target computer.

Simulate Real-Time Application and View Logged Data

Build the real-time application, run it on the target computer, and view the logged data:

1. Make sure that the development computer has a connection to the target computer.

2. Build the model and download the real-time application to the target computer. On the Real-Time tab, click Run on Target. Or, use the slbuild command and the load command.

3. Run the real-time application and log data by using the Run on Target button.

4. Open the Simulation Data Inspector by double-clicking the Simulation Data Inspector icon on the Gain block output signal or by using the Simulink.sdi.view command.
