Control Three-Phase Solar Inverter

Since R2025a

This example shows how to control a three-phase single-stage solar photovoltaic (PV) inverter using a Solar PV Controller (Three-Phase) block. In a grid-connected PV plant, a PV controller extracts the maximum power from the solar array and feeds it to the grid. To extract the maximum available PV power, the controller uses a maximum power point tracking (MPPT) algorithm.

The PV array has a peak power capacity of 60 kW. To test the MPPT capability of the controller, you change the solar irradiance from 1000 W/m^2 to 800 W/m^2 at a simulation time of 2 seconds. The total simulation time is 4 seconds.

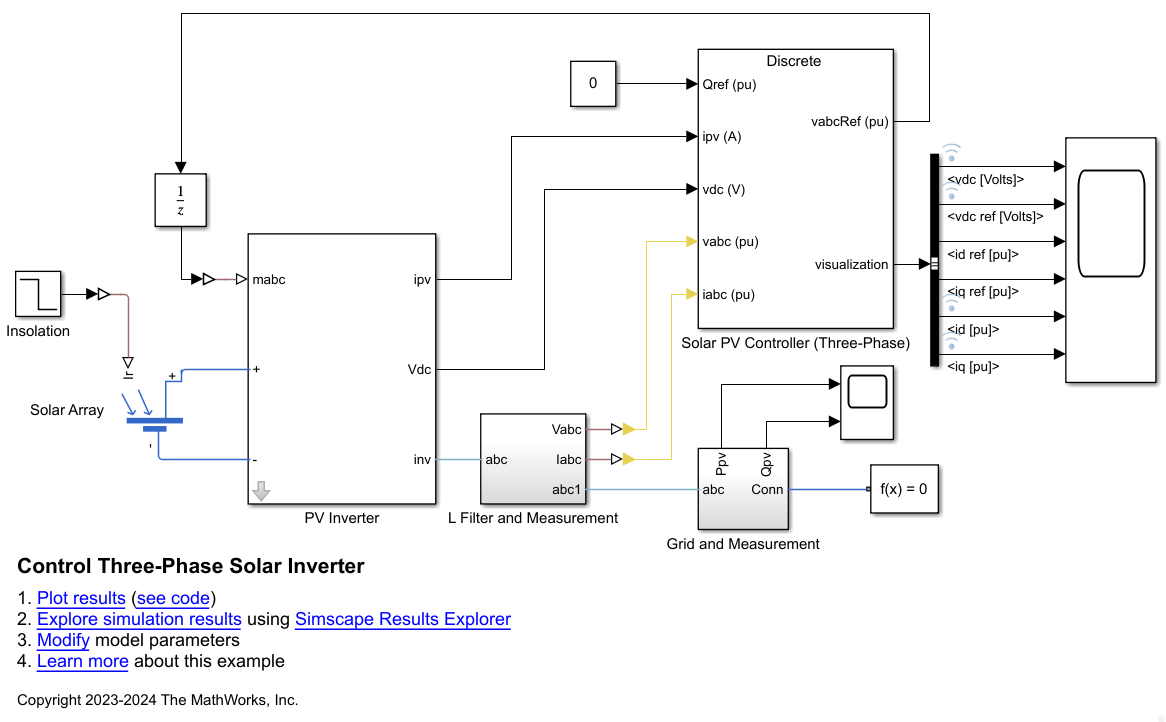

Open Model

Open the ControlThreePhaseSolarInverter model.


open_system("ControlThreePhaseSolarInverter");

Define Parameters and Run Simulation

Initialize the model with the parameters for the PV array, grid, filter, and controller.

run("ControlThreePhaseSolarInverterParameters");

Simulate the model.

sim("ControlThreePhaseSolarInverter");

Plot Simulation Results

Plot the measured DC voltage and output PV power.

ControlThreePhaseSolarInverterPlot
