A connective junction enables representation of different possible transition paths for a single transition. Connective junctions are used to help represent the following:
Variations of an
if-then-else decision construct, by specifying
conditions on some or all of the outgoing transitions from the connective junction
A self-loop transition back to the source state if none of the outgoing transitions is valid
Variations of a
for loop construct, by having a self-loop
transition from the connective junction back to itself
Transitions from a common source to multiple destinations
Transitions from multiple sources to a common destination
Transitions from a source to a destination based on common events
An event cannot trigger a transition from a connective junction to a destination state.
See Represent Multiple Paths by Using Connective Junctions for a summary of the semantics of connective junctions.
Flow chart notation uses connective junctions to represent common code structures like
for loops and
if-then-else constructs without the
use of states. And by reducing the number of states in your Stateflow® charts, flow chart notation produces efficient simulation and generated code
that helps optimize memory use.
Flow chart notation uses combinations of the following:
Transitions to and from connective junctions
Self-loops to connective junctions
Inner transitions to connective junctions
Flow chart notation, states, and state-to-state transitions coexist in the same Stateflow chart. The key to representing flow chart notation is in the labeling of transitions, as shown in the following examples.
A transition from the
Front_desk state to a connective junction is
labeled by the
check_in event. Transitions from the connective junction
to the destination states are labeled with conditions. If
check_in occurs, the transition from
Front_desk to the connective junction occurs first. The transition
from the connective junction to a destination state depends on which of the
room_type conditions is true. If none of the conditions is true, no
transition occurs and
Front_desk remains active.

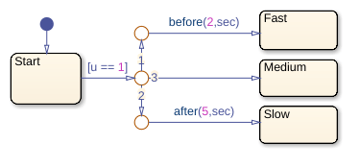

The chart uses temporal logic to determine when the input
|If the input equals 1...||A transition occurs from...|
|Before t = 2|
|Between t = 2 and t = 5|
|After t = 5|
This example shows a combination of flow chart notation and state transition notation.

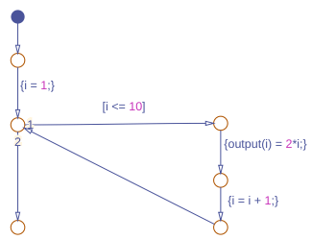

Self-loop transitions to connective junctions can represent
constructs. The chart uses implicit ordering of outgoing transitions (see Implicit Ordering).
See For-Loop Construct for information on the semantics of this notation.

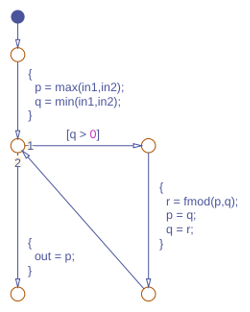

This example shows the use of flow chart notation. The chart uses implicit ordering of outgoing transitions (see Implicit Ordering).
See Flow Chart Notation for information on the semantics of this notation.
This example shows transition segments from a common source to multiple conditional destinations using a connective junction. The chart uses implicit ordering of outgoing transitions (see Implicit Ordering).
See Transition from a Common Source to Multiple Destinations for information on the semantics of this notation.
This example shows transition segments from multiple sources to a single destination based on the same event using a connective junction.
See Transition from a Source to a Destination Based on a Common Event for information on the semantics of this notation.
Select one or more connective junctions.
Right-click one of the selected junctions and select Junction Size from the drop-down menu.
From the menu, select a junction size.
Right-click a connective junction and select Properties from the drop-down menu.
In the Connective Junction dialog box, edit the fields in the dialog box according to your requirements.
Parent of the connective junction (read-only). To bring the parent to the foreground, click the hypertext link.
Textual description or comment.
Link to other information. Enter a URL address or a general
MATLAB® command. Examples are
To save changes, click Apply.
