C28x CAN Receive

Enhanced Controller Area Network receive mailbox

•

Libraries:
C2000 Microcontroller Blockset / C2803x
C2000 Microcontroller Blockset / C2805x
C2000 Microcontroller Blockset / C2806x
C2000 Microcontroller Blockset / C280x
C2000 Microcontroller Blockset / C281x
C2000 Microcontroller Blockset / C2833x
C2000 Microcontroller Blockset / C2834x
C2000 Microcontroller Blockset / F280013x
C2000 Microcontroller Blockset / F280015x
C2000 Microcontroller Blockset / F28002x
C2000 Microcontroller Blockset / F28003x
C2000 Microcontroller Blockset / F28004x
C2000 Microcontroller Blockset / F2807x
C2000 Microcontroller Blockset / F2837xD
C2000 Microcontroller Blockset / F2837xS
C2000 Microcontroller Blockset / F2838x / C28x
C2000 Microcontroller Blockset / F28p65x

Description

The CAN Receive block generates source code for receiving enhanced Controller Area Network (CAN) messages through an CAN mailbox. CAN modules on the processor provide serial communication capability and have 32 mailboxes configurable for receive or transmit. The block supports CAN data frames in standard or extended format.

The block supports CAN or DCAN depending upon the type of C2000 processors.

To use the CAN Receive block with the CAN Pack block in the canmsglib library, set Data type to CAN_MESSAGE_TYPE.

Configure the CAN modules for a specific hardware board by navigating to Hardware Implementation > Target hardware resources. Verify that these settings meet the requirements of your application.

Examples

Communication Using CAN Blocks

Use the CAN blocks to set up CAN communication between the target hardware and your host computer for Texas Instruments™ C2000™ Microcontroller Blockset.

• Open Model

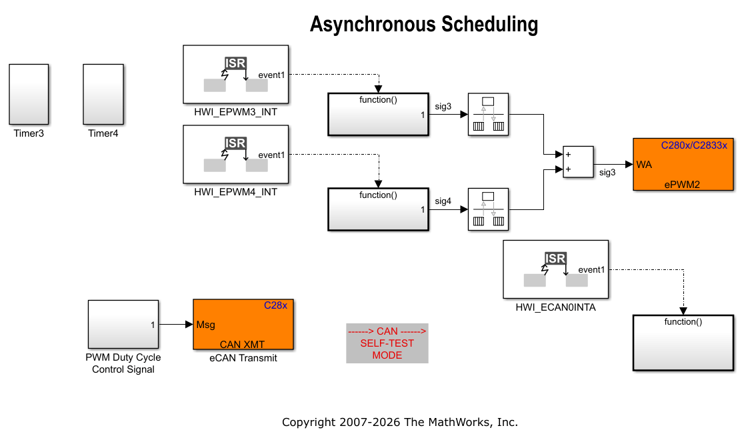

Asynchronous Scheduling

Use the Texas Instruments™ C28x™ peripherals and Hardware Interrupt blocks to control the real-time execution of Simulink® function-call subsystems in an asynchronous fashion.

• Open Model

Ports

Output

f() — Function call port

scalar

Connect a function call subsystem to this port. When a new message is received, the subsystem is executed.

Msg — Message data port

vector

The received data is output in the form of a vector of elements of the selected data type. The length of the vector is 8 bytes. When the block is used in polling mode, and a new message is not created between consecutive executions of the block, the existing message is repeated.

To use the CAN Receive block with the CAN Unpack block in the canmsglib library, set Data type to CAN_MESSAGE_TYPE.

Data Types: uint8 | uint16 | uint32 | CAN_MESSAGE_TYPE

len — Length of output message

scalar

The length of output message received in bytes.

Dependencies

This port appears only if the Output message length parameter is selected.

Data Types: uint16

ID — Output message identifier

scalar

The port outputs message identifier of received message.

Dependencies

To enable this port, select Output message ID parameter.

Data Types: uint32

Parameters

Module — CAN module the block configures

CAN_A (default) | CAN_B

Determines the CAN module configured by the CAN Receive block.

Mailbox number(0–31) — Sets value of mailbox number register (MBNR)

0 (default) | integer in the range [0 31]

For standard CAN controller (SCC) mode, enter a unique number from 0 to 15. For high-end CAN controller (HECC) mode, enter a unique number from 0 to 31. In SCC mode, transmissions from the mailbox with the highest number have the highest priority. In HECC mode, the mailbox number only determines priority if the transmit priority level (TPL) of two mailboxes is equal.

Note

In a model, the same mailbox number cannot be used by either CAN Transmit block or other CAN Receive blocks.

Message identifier — Sets value of message identifier register (MID)

bin2dec('111000111') (default) | numeric identifier of length 11 or 29 bits

The message identifier is 11 bits long for the standard frame size or 29 bits long for the extended frame size in decimal, binary, or hex format. For binary and hex formats, use bin2dec(' ') and hex2dec(' '), respectively, to convert the entry.

Message type — Message identifier type

Standard (11-bit identifier) (default) | Extended (29-bit identifier)

The message identifier type.

Enable acceptance filter — Enable to use ID filtering

off (default) | on

Enable this parameter to use ID filtering. ID filtering depends on Message type (Standard or extended) , Message identifier and Message identifier mask.

CAN module scans the received message ID's and compares it with the filter mask. Received messages which pass the acceptance filtering are stored into the message RAM.

Note

Acceptance filtering in self test mode is only supported for specific processors. F2805x/F2806x and older processors does not support acceptance filtering in self test mode.

Message identifier mask — identifier mask

0 (default) | 1 | numeric identifier of length 11 or 29 bits

The Message identifier mask is 11 bits long for the standard frame size or 29 bits long for the extended frame size in decimal, binary, or hex format. For binary and hex formats, use bin2dec(' ') and hex2dec(' '), respectively, to convert the entry.

• 0 - if the bit in Message identifier mask is set to 0, then corresponding bit in the Message identifier will not be considered for acceptance filtering.

• 1 - if the bit in Message identifier mask is set to 1, then corresponding bit in the Message identifier will be considered for acceptance filtering.

Dependencies

To enable Message identifier mask parameter, select Enable acceptance filter.

Sample time — Frequency at which mailbox is polled for new message

1 (default) | -1 | scalar

A new message causes a function call to be sent from the mailbox. If you want to update the message output only when a new message arrives, the block needs to be executed asynchronously. To execute the block asynchronously, set this parameter to -1, and select the Post interrupt when message is received option.

Note

For information about setting the timing parameters of the CAN module, see Configuring Timing Parameters for CAN Blocks.

Data type — Output message data type

uint16 (default) | uint8 | uint32 | CAN_MESSAGE_TYPE

The options available are:

• uint8: Vector length = 8 elements

• uint16: Vector length = 4 elements

• uint32: Vector length = 2 elements

• CAN_MESSAGE_TYPE: Outputs data as a structure. Use the CAN Unpack block to extract the data from the structure.

The length of the vector for the received message is at most 8 bytes. If the message is less than 8 bytes, the data buffer bytes are right-aligned in the output. The data are unpacked as follows using the data buffer, which is 8 bytes.

For uint8 data, the CAN Receive block reads each unit of 8 bytes in the registers and outputs 8-bit data to eight elements (using the lower part of the 16-bit memory).

Output[0] = data_buffer[0];
Output[1] = data_buffer[1];
Output[2] = data_buffer[2];
Output[3] = data_buffer[3];
Output[4] = data_buffer[4];
Output[5] = data_buffer[5];
Output[6] = data_buffer[6];
Output[7] = data_buffer[7];

For uint16 data, the CAN Receive block reads each unit of 8 bytes in the registers and outputs 16-bit data to four elements.

Output[0] = data_buffer[1..0];
Output[1] = data_buffer[3..2];
Output[2] = data_buffer[5..4];
Output[3] = data_buffer[7..6];

For uint32 data, the CAN Receive block reads each unit of 8 bytes in the registers and outputs 32-bit data to two elements.

Output[0] = data_buffer[3..0];
Output[1] = data_buffer[7..4];

For example, if the received message has two bytes:

data_buffer[0] = 0x21
data_buffer[1] = 0x43

The uint16 output is:

Output[0] = 0x4321
Output[1] = 0x0000
Output[2] = 0x0000
Output[3] = 0x0000

When you select CAN_MESSAGE_TYPE, the block outputs the following struct data (defined in can_message.h):

struct {

  /* Is Extended frame */
  uint8_T Extended;

  /* Length */
  uint8_T Length;

  /* RTR */
  uint8_T Remote;

  /* Error */
  uint8_T Error;

  /* CAN ID */
  uint32_T ID;

  /*
  TIMESTAMP_NOT_REQUIRED is a macro that will be defined by Target teams
  PIL, if they do not require the timestamp field during code
  generation. By default, timestamp is defined. If the targets do not require
  the timestamp field, they should define the macro TIMESTAMP_NOT_REQUIRED before
  including this header file for code generation.
  */
  #ifndef TIMESTAMP_NOT_REQUIRED
    /* Timestamp */
    double Timestamp;
  #endif

  /* Data field */
  uint8_T Data[8];

};

Limitations

The following are the limitations when Data type is set as CAN_MESSAGE_TYPE.

• CAN unpack status can be used for data validity only when CAN unpack is directly connected to CAN Receive block without function trigger and Action when message not received to Reset all fields to zero.

• CAN unpack status will not be valid in any case if Action when message not received of CAN Receive block is set to Output last received values.

• Always use function trigger as indication of status with or without CAN unpack block for all scenarios.

Initial output — Sets output before receiving data

0 (default) | integer

The value of the output before receiving data. You can specify the initial output values based on the Data type selected.

Action when message not received — Action when no new CAN message received

Output last message received (default) | Reset all fields to zero

Select an action when no new CAN message is received. You can either choose Output last message received or Reset all fields to zero.

Output message ID — Output message identifier status

off (default) | on

When you select the Output message ID parameter, the block configures an output port, ID. The port outputs the status of output message identifier.

Dependencies

To enable Output message ID, select Enable acceptance filter.

Output message length — Output message length in bytes

off (default) | on

The message length in bytes, sent to the len port. If not selected, the len port is not visible.

Post interrupt when message is received — Posts asynchronous interrupt when message is received

off (default) | on

When selected, the block posts an asynchronous interrupt when a message is received.

Interrupt line — Interrupt line of asynchronous interrupt

0 (default) | 1

The interrupt line the asynchronous interrupt uses. The value of this parameter sets bit 2 (GIL) in the global interrupt mask register (CANGIM):

• 1 maps the global interrupts to the CAN1INT line.

• 0 maps the global interrupts to the CAN0INT line.

Dependencies

This parameter appears only when you select Post interrupt when message is received.
