802.11bn (Wi-Fi 8)

R2026b

Transmit 802.11bn™ (UHR) signals

Model UHR-related signal transmission functionality.

Functions

`wlanUHRMUConfig`	Configure Wi-Fi 8 multi-user transmission (Since R2026b)
`wlanUHRTBConfig`	Configure Wi-Fi 8 trigger-based transmission (Since R2026b)
`wlanUHRELRConfig`	Configure Wi-Fi 8 enhanced long range transmission (Since R2026b)

`wlanWaveformGenerator`	Generate WLAN waveform
`wlanSampleRate`	Nominal sample rate

Overview of Wi-Fi 8 for PHY Modeling
Learn the main physical layer concepts in Wi-Fi^® 8.
UHR PPDU Structure
Describes the UHR PPDUs you can model using WLAN Toolbox™.

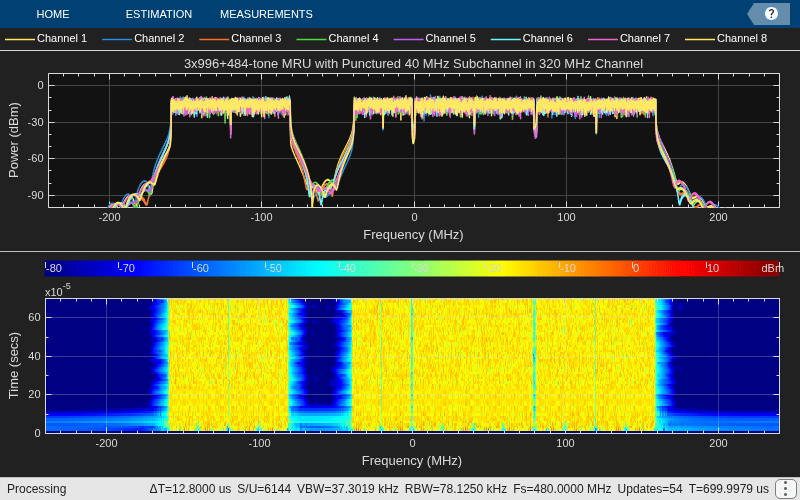

Parameterize and generate Wi-Fi 8 multi-user waveforms.

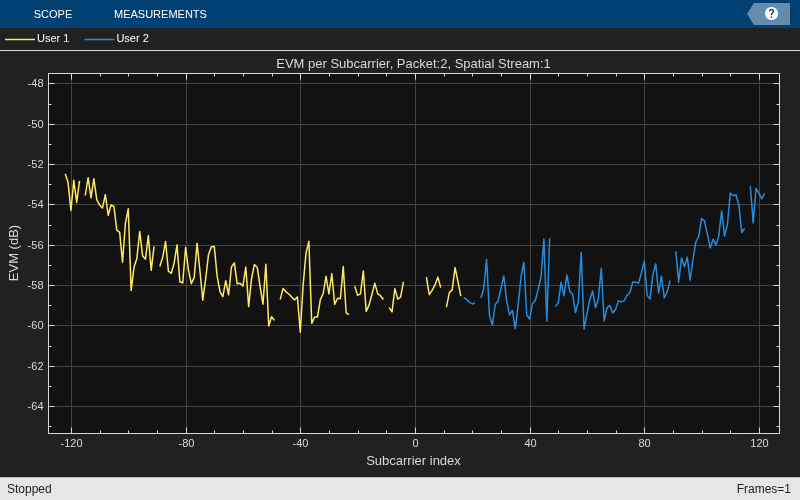

Measure transmitter modulation accuracy and spectral mask for Wi-Fi 8 waveforms.
