Nurbs2IGES

Versione 1.0.0.0 (3,83 MB) da Michael Fassbind
This code allows one to convert a NURBS Surface to an IGES surface file for import into a CAD progra
4.0
(3)
5,6K download
Aggiornato 31 ago 2006

Visualizza la licenza

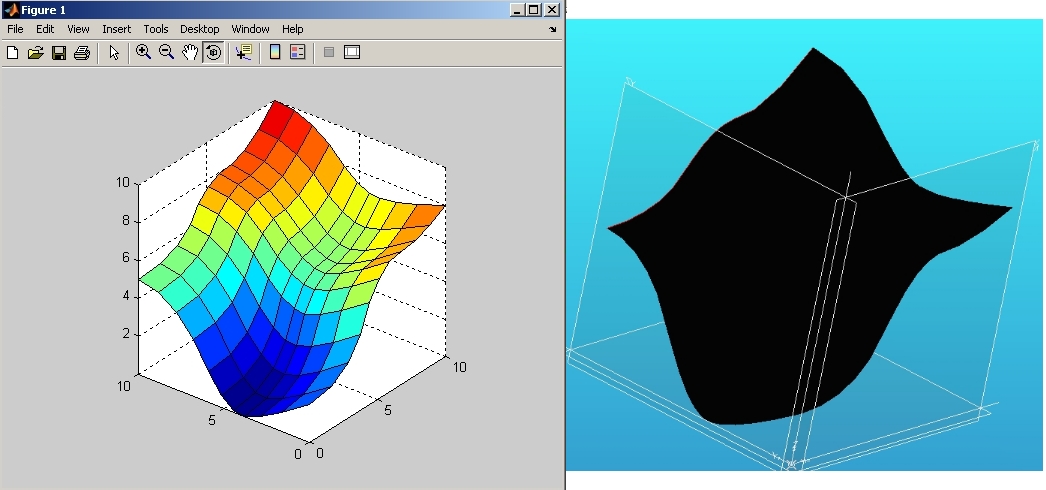

This code allows one to convert a NURBS Surface to an IGES surface file for import into a CAD program. Entity 128 is used and is the only entity type output. NURBS curves could be output with some modification. This code is rough but works for what I am doing.

Attached IGES format guidelines to help understand it. All the lines (in the *.igs file) on the right MUST line up or the file will not open up.

Cita come

Michael Fassbind (2024). Nurbs2IGES (https://www.mathworks.com/matlabcentral/fileexchange/12087-nurbs2iges), MATLAB Central File Exchange. Recuperato .

Compatibilità della release di MATLAB
Creato con R14
Compatibile con qualsiasi release
Compatibilità della piattaforma
Windows macOS Linux
Categorie
Scopri di più su Model Import in Help Center e MATLAB Answers
Riconoscimenti

Ispirato: IGES Toolbox, igesout

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

Nrb2igs/

Versione Pubblicato Note della release
1.0.0.0
