ComplexPotentialFlo​wSolver

Solve potential flow problems in the complex plane.

Versione 1.0.1.1 (224 KB)
81 download
(0)
23 feb 2023

Al momento, stai seguendo questo contributo

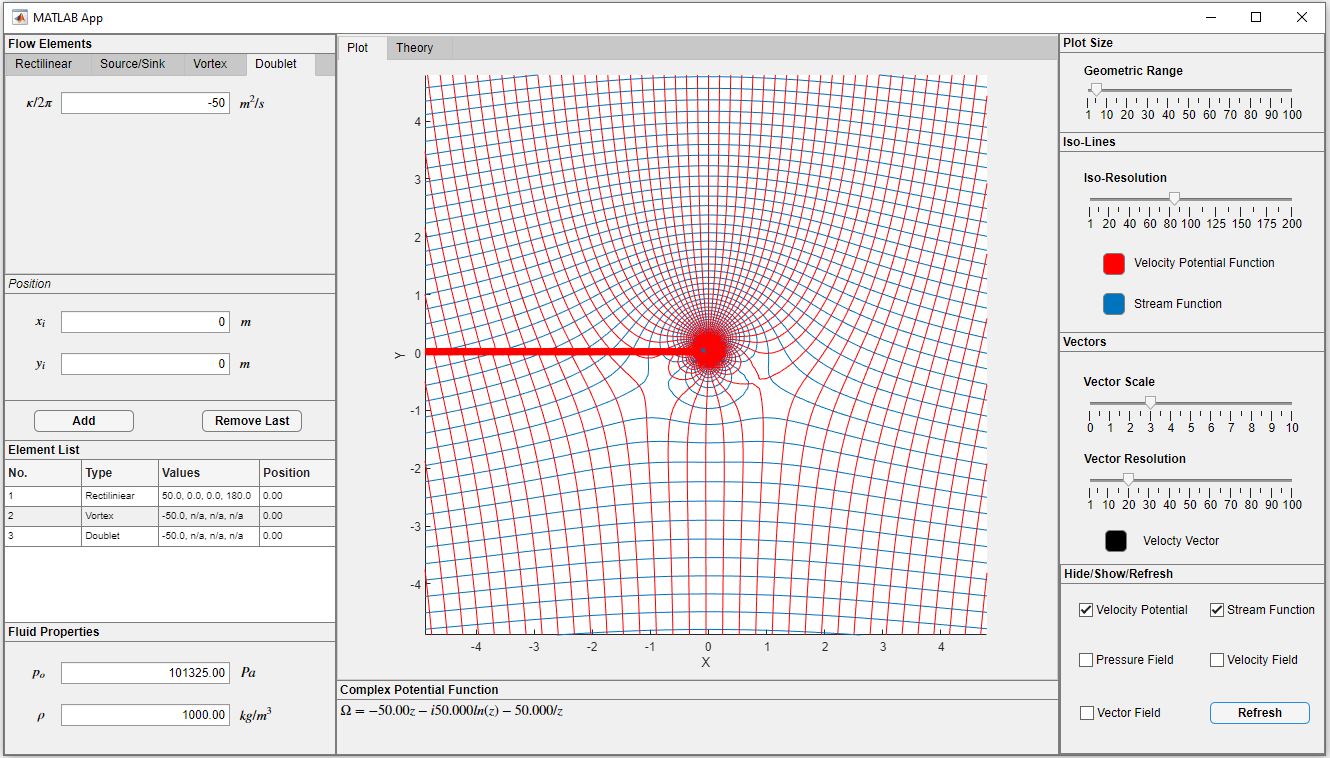

Complex Potential Flow Solver solves ideal flows through superposition of elemental flows in the complex plane, including; rectilinear, source/sink, vortex and doublet flows. The complex potential function is displayed below the plot window and will update with the addition/removal of flow elements, changes to fluid properties or plot controls. The user has control over which plot layers are displayed (i.e., velocity potential, stream function, pressure field and velocity/vector fields) as well as their appearance and display resolution. Refer to the theory tab for an overview of complex potential.

Cita come

Matt Brown (2026). ComplexPotentialFlowSolver (https://it.mathworks.com/matlabcentral/fileexchange/125195-complexpotentialflowsolver), MATLAB Central File Exchange. Recuperato .

Informazioni generali

Compatibilità della release di MATLAB

  • Compatibile con R2022a e release successive

Compatibilità della piattaforma

  • Windows
  • macOS
  • Linux
Apri in una nuova scheda
Versione Pubblicato Note della release
1.0.1.1

Fixed more typos.
1.0.1

Added value change callbacks on the fluid properties, sliders and color selectors. Also fixed some typos on the Theory page and clarified the description.
1.0.0
