Nine switch inverter

Versione 1.0.0 (52,9 KB) da Abdelrahman Farghly

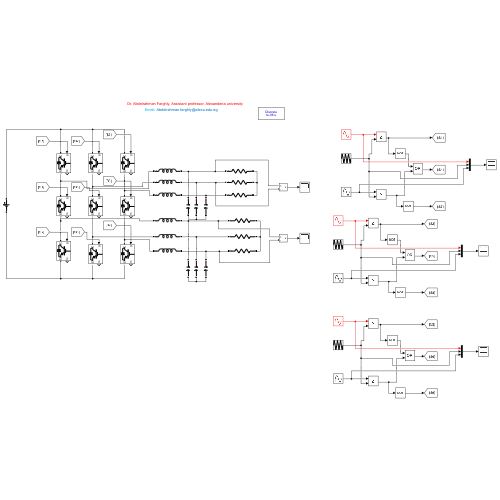

A Nine-Switch Inverter (NSI) is a multi-output power converter topology that allows control of two independent 3-phase AC loads
0.0
(0)
57 download
Aggiornato 9 mag 2025

Visualizza la licenza

How It Works
  • Inverters share one leg (3 switches) to reduce hardware.
  • Modulation ensures no shoot-through occurs in the shared legs.
  • Generates two three-phase AC outputs from a single DC bus:
  • Upper inverter feeds one 3-phase load
  • Lower inverter feeds another 3-phase load
