Function Parameter Slider

version 1.0.0.1 (11.8 KB) by Teja Muppirala
Use continuously updating sliders to view how a function changes as its input parameters change

2.6K Downloads

Updated 1 Sep 2016

View License

funcslider.m
Given a function with several (up to 5) inputs, and several outputs,
[z1, z2, ...] = f(x1,...,x5)

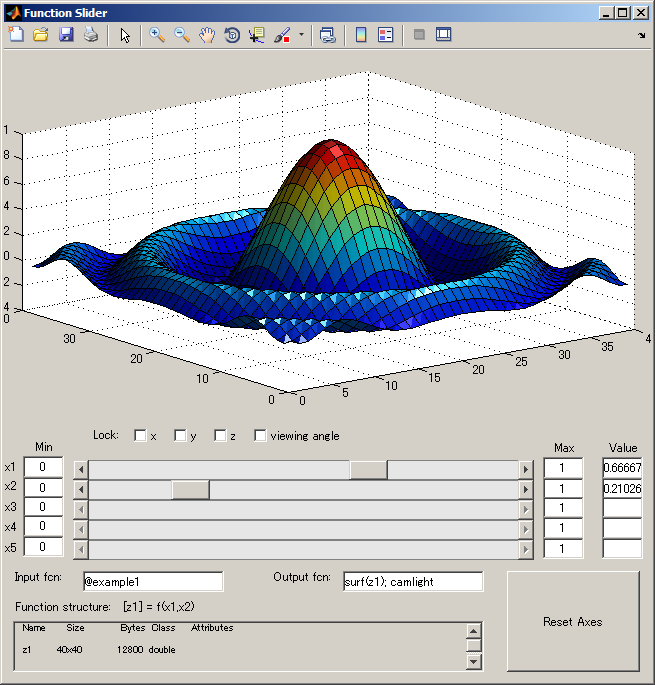

Function Slider lets you vary the input values x1...x5 using continuously updating sliders, and then viewing the results using any arbitrary MATLAB expression on the outputs (z1,z2...).

The input function, output (plotting) function, and slider values/limits are all user settable.

I wrote this with a hard coded limit of 5 sliders in this GUI, but it probably wouldn't be too hard to change this.

The HELP shows several examples that should hopefully make this clear.

Known issues:
There may be some difficulties with trying to keep the view exactly the same when the lock command is checked.

Cite As

Teja Muppirala (2022). Function Parameter Slider (https://www.mathworks.com/matlabcentral/fileexchange/28076-function-parameter-slider), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2010a
Compatible with any release
Platform Compatibility
Windows macOS Linux
