Charging a RC circuit

Versione 1.0.0.0 (1,54 KB) da Sathyanarayan Rao

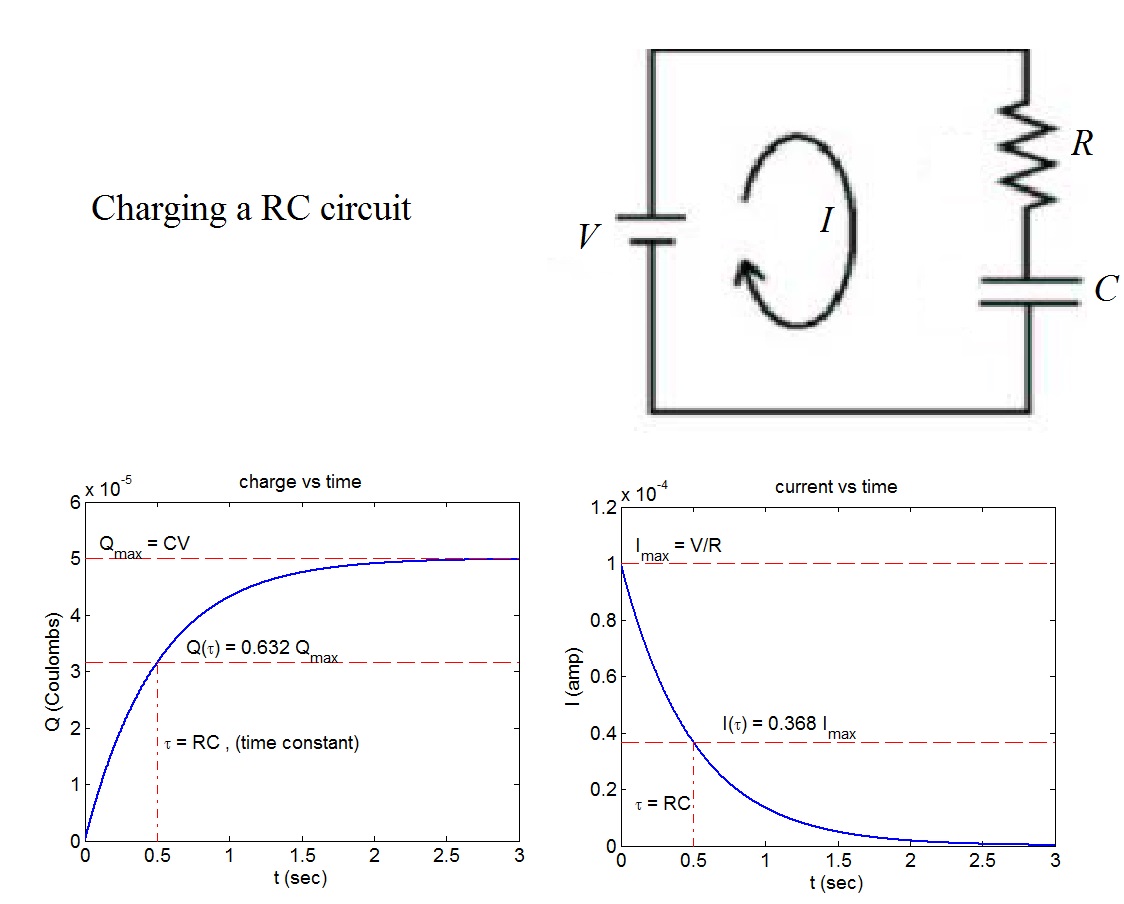

This code plots current and electric charge as a function of time for a charging RC circuit.
5.0
(1)
1,8K download
Aggiornato 18 dic 2013

Visualizza la licenza

Time dependent current and electric charge of a charging RC circuit are calculated and plotted. Equations of current and electric charge in this code were obtained by applying Kirchhoff's loop rule to a simple RC circuit with a battery.

Reference:

http://physics.bu.edu/~duffy/semester2/c11_RC.html

Cita come

Sathyanarayan Rao (2026). Charging a RC circuit (https://it.mathworks.com/matlabcentral/fileexchange/44752-charging-a-rc-circuit), MATLAB Central File Exchange. Recuperato .

Compatibilità della release di MATLAB
Creato con R2010a
Compatibile con qualsiasi release
Compatibilità della piattaforma
Windows macOS Linux
Tag Aggiungi tag
Riconoscimenti

Ispirato: VariableCapacitor
