show

R2026b

Show object in satellite scenario viewer

Syntax

show(item)

show(item,viewer)

Description

show(item) shows the item on all open Satellite Scenario Viewers.

show(item,viewer) shows the graphic on the Satellite Scenario Viewer specified by viewer.

Examples

Add Satellites to Scenario Using Keplerian Elements

Create a satellite scenario with a start time of 02-June-2020 8:23:00 AM UTC, and the stop time set to one day later. Set the simulation sample time to 60 seconds.

startTime = datetime(2020,6,02,8,23,0);
stopTime = startTime + days(1);
sampleTime = 60;
sc = satelliteScenario(startTime,stopTime,sampleTime);

Add two satellites to the scenario using their Keplerian elements.

semiMajorAxis = [10000000;15000000];
eccentricity = [0.01;0.02];
inclination = [0;10];
rightAscensionOfAscendingNode = [0;15];
argumentOfPeriapsis = [0;30];
trueAnomaly = [0;20];

sat = satellite(sc,semiMajorAxis,eccentricity,inclination, ...
    rightAscensionOfAscendingNode,argumentOfPeriapsis,trueAnomaly)

sat =
  1x2 Satellite array with properties:

    Name
    ID
    ConicalSensors
    Gimbals
    Transmitters
    Receivers
    Accesses
    GroundTrack
    Orbit
    OrbitPropagator
    MarkerColor
    MarkerSize
    ShowLabel
    LabelFontColor
    LabelFontSize

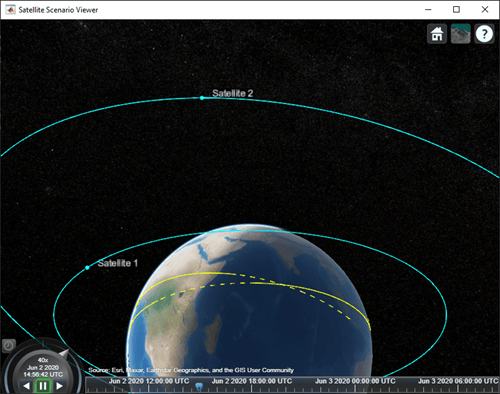

View the satellites in orbit and the ground tracks over one hour.

show(sat)
groundTrack(sat,LeadTime=3600)

ans = 1×2 object
    1×1 GroundTrack    1×1 GroundTrack

Play the scenario and set the animation speed of the simulation to 40.

play(sc,PlaybackSpeedMultiplier=40)

Input Arguments

item — Item

Satellite object | GroundStation object | ConicalSensor object | GroundTrack object | FieldOfView object | Access object

The item, specified as a Satellite, GroundStation, ConicalSensor, GroundTrack, FieldOfView, or Access object. These objects must belong to the same satelliteScenario object.

Note

If item is a satellite or a ground station, then the associated gimbals are also displayed on the viewer.

viewer — Satellite scenario viewer

row vector of all satelliteScenarioViewer objects (default) | scalar satelliteScenarioViewer object | array of satelliteScenarioViewer objects

Satellite scenario viewer, specified as a scalar, vector, or array of satelliteScenarioViewer objects.

Version History

Introduced in R2021a
