Acoustic Beamforming Using a Microphone Array
This example illustrates microphone array beamforming to extract desired speech signals in an interference-dominant, noisy environment. Such operations are useful to enhance speech signal quality for perception or further processing. For example, the noisy environment can be a trading room, and the microphone array can be mounted on the monitor of a trading computer. If the trading computer must accept speech commands from a trader, the beamformer operation is crucial to enhance the received speech quality and achieve the designed speech recognition accuracy.
The example shows two types of time domain beamformers: the time delay beamformer and the Frost beamformer. It also illustrates how you can use diagonal loading to improve the robustness of the Frost beamformer. You can listen to the speech signals at each processing step.
This example requires Phased Array System Toolbox.
Define a Uniform Linear Array
First, define a uniform linear array (ULA) to receive the signal. The array contains 10 omnidirectional elements (microphones) spaced 5 cm apart. Set the upper bound for frequency range of interest to 4 kHz because the signals used in this example are sampled at 8 kHz.
microphone = ... phased.OmnidirectionalMicrophoneElement('FrequencyRange',[20 4000]); Nele = 10; ula = phased.ULA(Nele,0.05,'Element',microphone); c = 340; % speed of sound, in m/s
Simulate the Received Signals
Next, simulate the multichannel signal received by the microphone array. Two speech signals are used as audio of interest. A laughter audio segment is used as interference. The sampling frequency of the audio signals is 8 kHz.
Because audio signals are usually large, it is often not practical to read the entire signal into the memory. Therefore, in this example, you read and process the signal in a streaming fashion, i.e., break the signal into small blocks at the input, process each block, and then assemble them at the output.
The incident direction of the first speech signal is -30 degrees in azimuth and 0 degrees in elevation. The direction of the second speech signal is -10 degrees in azimuth and 10 degrees in elevation. The interference comes from 20 degrees in azimuth and 0 degrees in elevation.
ang_dft = [-30; 0]; ang_cleanspeech = [-10; 10]; ang_laughter = [20; 0];
Now you can use a wideband collector to simulate a 3-second signal received by the array. Notice that this approach assumes that each input single-channel signal is received at the origin of the array by a single microphone.
fs = 8000; collector = phased.WidebandCollector('Sensor',ula,'PropagationSpeed',c, ... 'SampleRate',fs,'NumSubbands',1000,'ModulatedInput', false); t_duration = 3; % 3 seconds t = 0:1/fs:t_duration-1/fs;
Generate a white noise signal with a power of 1e-4 Watts to represent the thermal noise for each sensor. A local random number stream ensures reproducible results.
prevS = rng(2008); noisePwr = 1e-4;
Run the simulation. At the output, the received signal is stored in a 10-column matrix. Each column of the matrix represents the signal collected by one microphone. Note that the audio is played back during the simulation.
% preallocate NSampPerFrame = 1000; NTSample = t_duration*fs; sigArray = zeros(NTSample,Nele); voice_dft = zeros(NTSample,1); voice_cleanspeech = zeros(NTSample,1); voice_laugh = zeros(NTSample,1); % set up audio device writer player = audioDeviceWriter('SampleRate',fs); dftFileReader = dsp.AudioFileReader('SpeechDFT-16-8-mono-5secs.wav', ... 'SamplesPerFrame',NSampPerFrame); speechFileReader = dsp.AudioFileReader('FemaleSpeech-16-8-mono-3secs.wav', ... 'SamplesPerFrame',NSampPerFrame); laughterFileReader = dsp.AudioFileReader('Laughter-16-8-mono-4secs.wav', ... 'SamplesPerFrame',NSampPerFrame); % simulate for m = 1:NSampPerFrame:NTSample sig_idx = m:m+NSampPerFrame-1; x1 = dftFileReader(); x2 = speechFileReader(); x3 = 2*laughterFileReader(); temp = collector([x1 x2 x3], ... [ang_dft ang_cleanspeech ang_laughter]) + ... sqrt(noisePwr)*randn(NSampPerFrame,Nele); player(0.5*temp(:,3)); sigArray(sig_idx,:) = temp; voice_dft(sig_idx) = x1; voice_cleanspeech(sig_idx) = x2; voice_laugh(sig_idx) = x3; end

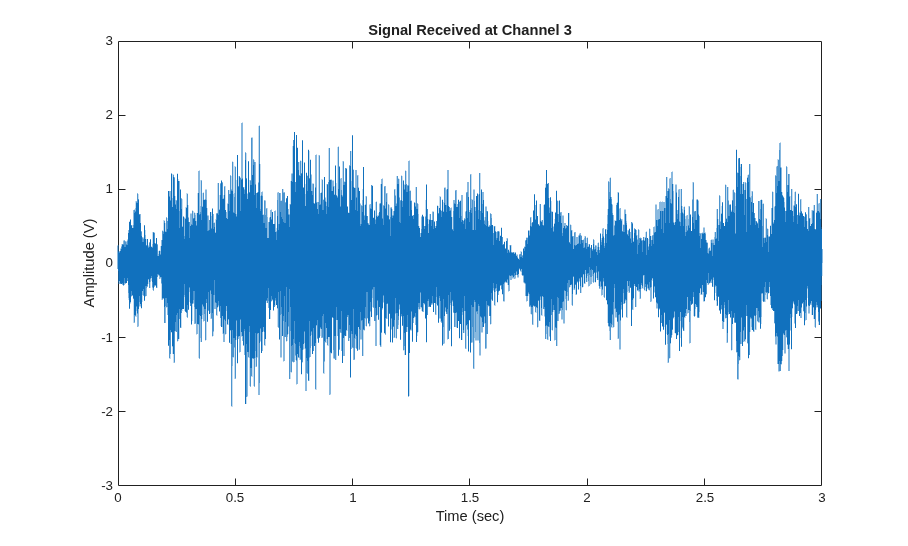

Notice that the laughter masks the speech signals, rendering them unintelligible. Plot the signal in channel 3.
plot(t,sigArray(:,3)); xlabel('Time (sec)'); ylabel ('Amplitude (V)'); title('Signal Received at Channel 3'); ylim([-3 3]);
Process with a Time Delay Beamformer
The time delay beamformer compensates for the arrival time differences across the array for a signal coming from a specific direction. The time aligned multichannel signals are coherently averaged to improve the signal-to-noise ratio (SNR). Define a steering angle corresponding to the incident direction of the first speech signal and construct a time delay beamformer.
angSteer = ang_dft; beamformer = phased.TimeDelayBeamformer('SensorArray',ula, ... 'SampleRate',fs,'Direction',angSteer,'PropagationSpeed',c)
beamformer = phased.TimeDelayBeamformer with properties: SensorArray: [1x1 phased.ULA] PropagationSpeed: 340 SampleRate: 8000 DirectionSource: 'Property' Direction: [2x1 double] WeightsOutputPort: false
Process the synthesized signal, then plot and listen to the output of the conventional beamformer.

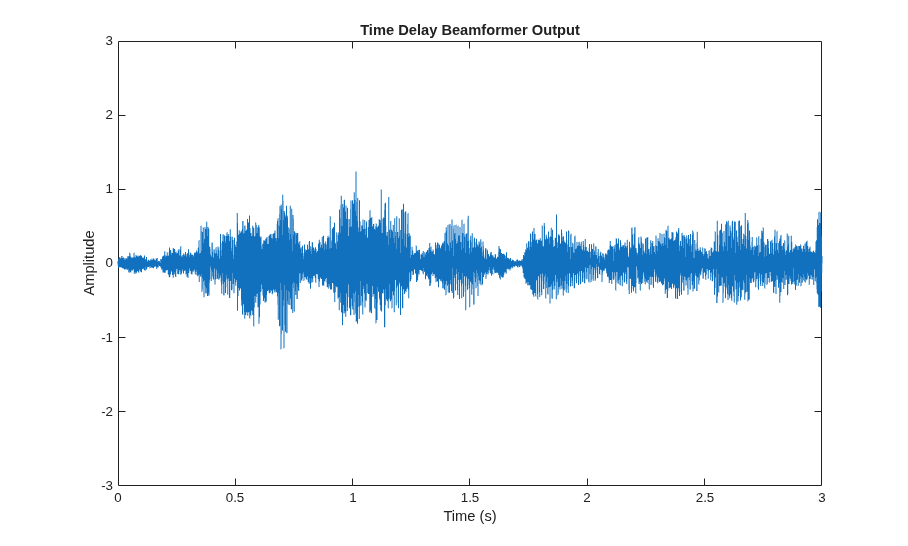

signalsource = dsp.SignalSource('Signal',sigArray, ... 'SamplesPerFrame',NSampPerFrame); cbfOut = zeros(NTSample,1); for m = 1:NSampPerFrame:NTSample temp = beamformer(signalsource()); player(temp); cbfOut(m:m+NSampPerFrame-1,:) = temp; end plot(t,cbfOut); xlabel('Time (s)'); ylabel ('Amplitude'); title('Time Delay Beamformer Output'); ylim([-3 3]);
You can measure the speech enhancement by the array gain, which is the ratio of the output signal-to-interference-plus-noise ratio (SINR) to the input SINR.
agCbf = pow2db(mean((voice_cleanspeech+voice_laugh).^2+noisePwr)/ ... mean((cbfOut - voice_dft).^2))
agCbf = 9.5022
Notice that the first speech signal begins to emerge in the time delay beamformer output. You obtain an SINR improvement of 9.4 dB. However, the background laughter is still comparable to the speech. To obtain better beamformer performance, use a Frost beamformer.
Process with a Frost Beamformer
By attaching FIR filters to each sensor, the Frost beamformer has more beamforming weights to suppress the interference. It is an adaptive algorithm that places nulls at learned interference directions to better suppress the interference. In the steering direction, the Frost beamformer uses distortionless constraints to ensure desired signals are not suppressed. Create a Frost beamformer with a 20-tap FIR after each sensor.
frostbeamformer = ... phased.FrostBeamformer('SensorArray',ula,'SampleRate',fs, ... 'PropagationSpeed',c,'FilterLength',20,'DirectionSource','Input port');
Process and play the synthesized signal using the Frost beamformer.

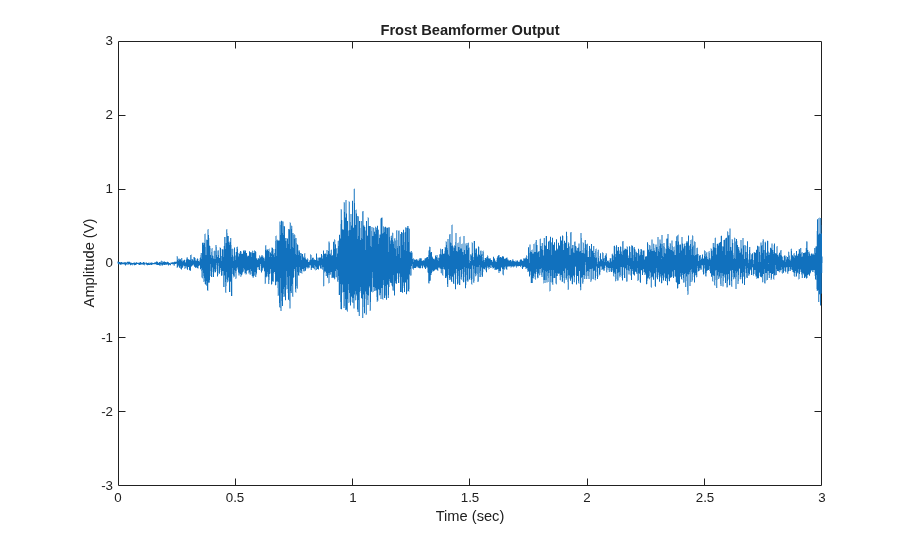

reset(signalsource); FrostOut = zeros(NTSample,1); for m = 1:NSampPerFrame:NTSample temp = frostbeamformer(signalsource(),ang_dft); player(temp); FrostOut(m:m+NSampPerFrame-1,:) = temp; end plot(t,FrostOut); xlabel('Time (sec)'); ylabel ('Amplitude (V)'); title('Frost Beamformer Output'); ylim([-3 3]); % Calculate the array gain agFrost = pow2db(mean((voice_cleanspeech+voice_laugh).^2+noisePwr)/ ... mean((FrostOut - voice_dft).^2))
agFrost = 14.4385
Notice that the interference is now canceled. The Frost beamformer has an array gain of 14.5 dB, which is about 5 dB higher than that of the time delay beamformer. The performance improvement is impressive, but has a high computational cost. In the preceding example, an FIR filter of order 20 is used for each microphone. With all 10 sensors, it needs to invert a 200-by-200 matrix, which may be expensive in real-time processing.
Use Diagonal Loading to Improve Robustness of the Frost Beamformer
Next, steer the array in the direction of the second speech signal. Suppose you only know a rough estimate of azimuth -5 degrees and elevation 5 degrees for the direction of the second speech signal.

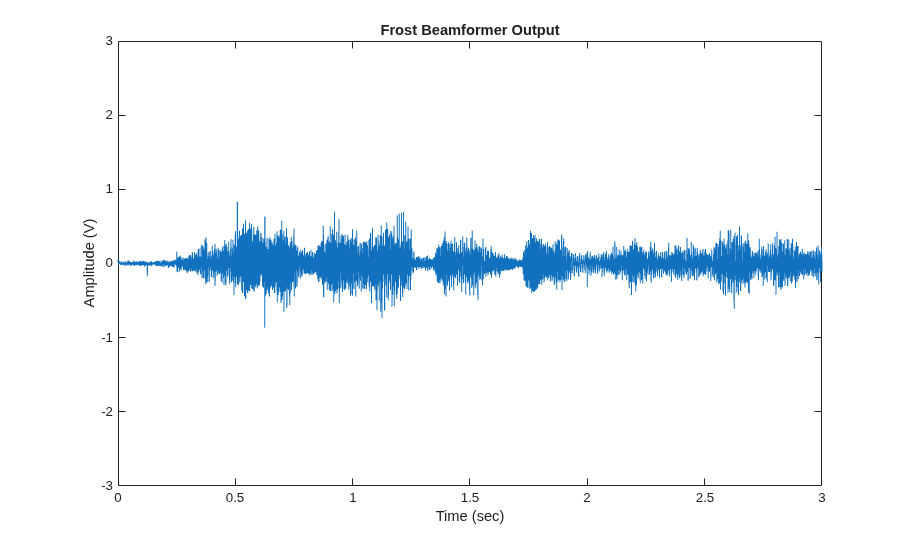

release(frostbeamformer); ang_cleanspeech_est = [-5; 5]; % Estimated steering direction reset(signalsource); FrostOut2 = zeros(NTSample,1); for m = 1:NSampPerFrame:NTSample temp = frostbeamformer(signalsource(), ang_cleanspeech_est); player(temp); FrostOut2(m:m+NSampPerFrame-1,:) = temp; end plot(t,FrostOut2); xlabel('Time (sec)'); ylabel ('Amplitude (V)'); title('Frost Beamformer Output'); ylim([-3 3]); % Calculate the array gain agFrost2 = pow2db(mean((voice_dft+voice_laugh).^2+noisePwr)/ ... mean((FrostOut2 - voice_cleanspeech).^2))
agFrost2 = 6.1927
The speech is barely audible. Despite the 6.1 dB gain from the beamformer, performance suffers from the inaccurate steering direction. One way to improve the robustness of the Frost beamformer against direction of arrival mismatch is to use diagonal loading. This approach adds a small quantity to the diagonal elements of the estimated covariance matrix. The drawback of this method is that it is difficult to estimate the correct loading factor. Here you try diagonal loading with a value of 1e-3.
% Specify diagonal loading value release(frostbeamformer); frostbeamformer.DiagonalLoadingFactor = 1e-3; reset(signalsource); FrostOut2_dl = zeros(NTSample,1); for m = 1:NSampPerFrame:NTSample temp = frostbeamformer(signalsource(),ang_cleanspeech_est); player(temp); FrostOut2_dl(m:m+NSampPerFrame-1,:) = temp; end plot(t,FrostOut2_dl); xlabel('Time (sec)'); ylabel ('Amplitude (V)'); title('Frost Beamformer Output'); ylim([-3 3]); % Calculate the array gain agFrost2_dl = pow2db(mean((voice_dft+voice_laugh).^2+noisePwr)/ ... mean((FrostOut2_dl - voice_cleanspeech).^2))
agFrost2_dl = 6.4788
The output speech signal is improved and you obtain a 0.3 dB gain improvement from the diagonal loading technique.
release(frostbeamformer); release(signalsource); release(player); rng(prevS);
This example shows how to use time domain beamformers to retrieve speech signals from noisy microphone array measurements. The example also shows how to simulate an interference-dominant signal received by a microphone array. The example used both time delay and the Frost beamformers and compared their performance. The Frost beamformer has a better interference suppression capability. The example also illustrates the use of diagonal loading to improve the robustness of the Frost beamformer.
 O. L. Frost III, An algorithm for linear constrained adaptive array processing, Proceedings of the IEEE, Vol. 60, Number 8, Aug. 1972, pp. 925-935.
