plotPhaseNoiseFilter
Plot response of phase noise filter block
Description
plotPhaseNoiseFilter(
plots
the response of the phase noise filter associated with the Phase Noise block specified by the variable
blockname
)blockname
.
Examples
View Filter Response of Phase Noise Block
This example shows how to use the plotPhaseNoiseFilter
function to view the filter response of a Phase Noise block in a Simulink® model.
Load a Simulink model that contains a Phase Noise block. The load_system
(Simulink) command loads a model into memory without making its model window visible. The function will also work with models whose window is visible. The example, slex_phasenoise
, contains a Phase Noise
block.
load_system('slex_phasenoise')

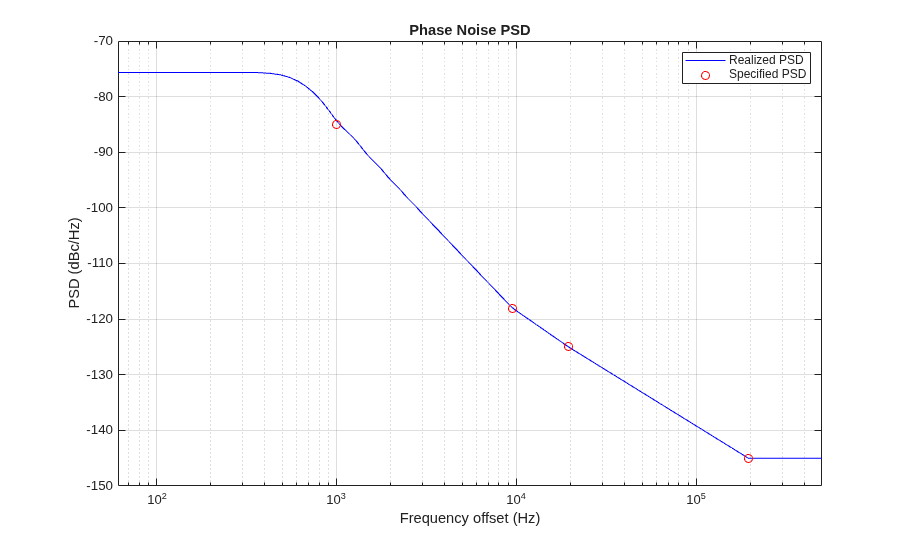

Run the plotPhaseNoiseFilter
function to view the filter response of the block Phase Noise.
plotPhaseNoiseFilter('slex_phasenoise/Phase Noise')
Input Arguments
blockname
— Phase noise block name
character vector
The name of a Phase Noise block in a Simulink model
Example: plotPhaseNoiseFilter('Model Name/Phase
Noise')
Data Types: char
