Normalized Mean Squared Error as a Distance Measure

R2026b

Since R2025a

This example shows how to use the normalized mean squared error (NMSE) as a loss function for training a neural network in a wireless communications application.

Introduction

In wireless communications, accurately predicting signal behavior and performance is crucial for optimizing system design and operation. Neural networks have emerged as powerful tools for modeling and predicting complex relationships in communication systems. One critical aspect of training neural networks is the choice of the loss function, which guides the optimization process to minimize prediction errors.

The NMSE is an Euclidean distance measure similar to the mean squared error (MSE). NMSE is particularly useful in scenarios where the scale of the data varies, as it normalizes the MSE by the variance of the target data, providing a scale-independent measure of prediction accuracy.

This example uses the helperNNDPDTrainingData function to generate data for the communications link. The signals x and y are the input and output of a power amplifier (PA). Ideally, the signals x and y should be the same, when the amplifier gain is removed. For more information see the Neural Network for Digital Predistortion Design-Offline Training example.

dpdData = helperNNDPDTrainingData;
x = dpdData.txWaveTrain;
y = dpdData.paOutputTrain;

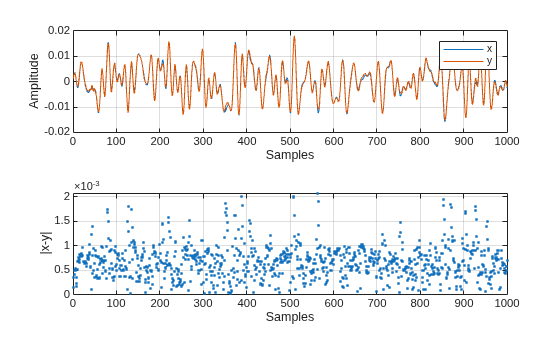

Examine the signals.

plotSignals(x,y);

fprintf("The maximum amplitude of the signals is %f",max(max(abs(x)),max(abs(y))))

The maximum amplitude of the signals is 0.020772

fprintf("The maximum absolute error between the two signals is %e",max(abs(x-y)))

The maximum absolute error between the two signals is 2.052652e-03

fprintf("The average power of signal x is %e",mean(abs(x).^2))

The average power of signal x is 7.787301e-05

Similarity Measures Based on Euclidean Distance

Measure the similarity of two signals using mean squared error (MSE) and normalized mean squared error (NMSE).

MSE Between Two Signals

MSE is defined as

$\text{MSE}=\frac{1}{N}\sum _{n=1}^N{\left|x_n-y_n\right|}^2$.

mse = mean(abs(x-y).^2)

mse = single

5.6925e-07

In dB scale, MSE is

mse_dB = 10*log10(mse)

mse_dB = single

-62.4470

Since the amplitude and average power of signal x is small, MSE is also a very small number.

NMSE Between Two Signals

During training, small valued signals may not be taken into account as much as the larger valued signals. The NMSE loss function solves this problem by scaling the loss function with the signal power. The helperNMSE function implements the following equation and outputs NMSE in dB.

$$\text{Norm}=\frac{1}{N}\sum _{n=1}^N|x_n{|}^2$$

$$\text{NMSE}=\frac{\text{MSE}}{\text{Norm}}$$

nmse = helperNMSE(x,y)

nmse = single

-21.3609

Train with NMSE and MSE

Train a neural network DPD using MSE and NMSE as loss function. Use the built in mse loss function and the custom helperNMSE function. First get the training options and the network using the helperNNDPDTrainingOptions function.

[net,options] = helperNNDPDTrainingOptions;

Set the random number generator to a known value to start training for both cases at the same initial conditions.

rng(123)
netDPDMSE = trainnet(dpdData.trainingInput,dpdData.trainingOutput, ...
  net,"mse",options);

    Iteration    Epoch    TimeElapsed    LearnRate    TrainingLoss
    _________    _____    ___________    _________    ____________
            1        1       00:00:00        0.001          3.4093
          256        2       00:00:02        0.001        0.015105
          512        4       00:00:03        0.001       0.0069223
          768        6       00:00:04      0.00095       0.0043773
         1024        8       00:00:05      0.00095       0.0025694
         1280       10       00:00:06      0.00095       0.0014849
         1536       12       00:00:06    0.0009025       0.0012754
         1792       14       00:00:07    0.0009025       0.0010275
         2048       16       00:00:08   0.00085737      0.00078212
         2304       18       00:00:08   0.00085737      0.00074669
         2560       20       00:00:09   0.00085737      0.00069844
Training stopped: Max epochs completed

rng(123)
netDPDNMSE = trainnet(dpdData.trainingInput,dpdData.trainingOutput, ...
  net,@(Y,T)helperNMSE(Y,T,"linear"),options);

    Iteration    Epoch    TimeElapsed    LearnRate    TrainingLoss
    _________    _____    ___________    _________    ____________
            1        1       00:00:00        0.001          1.0841
          256        2       00:00:03        0.001        0.014231
          512        4       00:00:06        0.001       0.0053603
          768        6       00:00:09      0.00095       0.0035813
         1024        8       00:00:12      0.00095       0.0035024
         1280       10       00:00:15      0.00095       0.0016632
         1536       12       00:00:17    0.0009025       0.0014775
         1792       14       00:00:19    0.0009025       0.0025326
         2048       16       00:00:22   0.00085737       0.0011464
         2304       18       00:00:24   0.00085737       0.0014191
         2560       20       00:00:27   0.00085737       0.0010112
Training stopped: Max epochs completed

Compare the EVM, ACPR, MSE, and NMSE values of the trained networks.

dpdOutNMSE = predict(netDPDNMSE,dpdData.inputMtxTest);
dpdOutNMSE = complex(dpdOutNMSE(:,1),dpdOutNMSE(:,2));
dpdOutNMSE = dpdOutNMSE/dpdData.scalingFactor;
pa = helperNNDPDPowerAmplifier(DataSource="Simulated PA",SampleRate=dpdData.ofdmParams.SampleRate);
paOutputNN = pa(dpdOutNMSE);
% Evaluate performance with MSE loss function
acprNMSE = helperACPR(paOutputNN,dpdData.ofdmParams.SampleRate,dpdData.ofdmParams.Bandwidth);
nmseNMSE = helperNMSE(dpdData.txWaveTest,paOutputNN);
mseNMSE = helperMSE(dpdData.txWaveTest,paOutputNN);
evmNMSE = helperEVM(paOutputNN,dpdData.qamRefSymTest,dpdData.ofdmParams);

dpdOutMSE = predict(netDPDMSE,dpdData.inputMtxTest);
dpdOutMSE = complex(dpdOutMSE(:,1),dpdOutMSE(:,2));
dpdOutMSE = dpdOutMSE/dpdData.scalingFactor;
paOutputNN = pa(dpdOutMSE);
% Evaluate performance with NMSE loss function
acprMSE = helperACPR(paOutputNN,dpdData.ofdmParams.SampleRate,dpdData.ofdmParams.Bandwidth);
nmseMSE = helperNMSE(dpdData.txWaveTest,paOutputNN);
mseMSE = helperMSE(dpdData.txWaveTest,paOutputNN);
evmMSE = helperEVM(paOutputNN,dpdData.qamRefSymTest,dpdData.ofdmParams);

results = table([evmMSE;evmNMSE],[acprMSE;acprNMSE],[mseMSE;mseNMSE],[nmseMSE;nmseNMSE], ...
  VariableNames=["EVM_percent","ACPR_dB","MSE_dB","NMSE_dB"],RowNames=["MSE Trained","NMSE Trained"])

results = 2×4 table
                    EVM_percent    ACPR_dB    MSE_dB     NMSE_dB
                    ___________    _______    _______    _______

    MSE Trained       2.0818       -33.812    -69.284    -28.173
    NMSE Trained      1.7519       -35.448    -70.978    -29.867

Local Functions

function plotSignals(x,y)
tiledlayout(2,1)
nexttile
plot(real(x(1:1000,1)))
hold on
plot(real(y(1:1000,1)))
hold off
grid on
xlabel("Samples")
ylabel("Amplitude")
legend("x","y")
nexttile
plot(abs(x-y),'.')
grid on
xlabel("Samples")
ylabel("|x-y|")
end
