Analog Signal Generation

Configure analog output channels and generate signals with your device

You can generate signals on analog output channels either synchronously or asynchronously. For synchronous writes, signal is generated in the foreground. For asynchronous writes, signal is generated in the background. Before you use analog output channels, see Hardware Discovery and Setup.

Functions

`addoutput`	Add output channel to device interface
`write`	Write output scans to hardware channels
`preload`	Queue scan data for device output
`flush`	Flush DataAcquisition input and output buffers
`readwrite`	Simultaneously read and write device channel data
`start`	Start `DataAcquisition` background operation
`stop`	Stop background operation
`removechannel`	Remove channel from device interface

Apps

Analog Output Generator

Define and generate analog output signals

Topics

Foreground Signal Generation

Generate Signals in the Foreground
Generate data from a device while MATLAB^® waits.
Generate and Measure Signals with Analog Devices ADALM1000
Program a DataAcquisition interface for ADALM1000 input and output.
Acquire Data and Generate Signals Simultaneously
Acquire and generate data at the same time.

Background Signal Generation

Generate Signals in the Background
Generate data from a device while MATLAB continues to run.

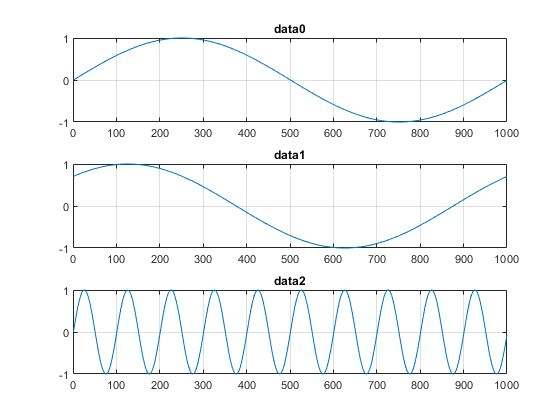

Generate Signals in the Background Continuously
Continuously generate data from a device while MATLAB continues to run.

Measurement Types

Generate Signals on Multiple Channels
This example shows how to generate data from multiple channels and multiple devices.
Generate Signals on Both Analog and Digital Channels
Generate signals when the DataAcquisition object contains both analog and digital channels.
