traincgb
Conjugate gradient backpropagation with PowellBeale restarts
Syntax
net.trainFcn = 'traincgb'
[net,tr] = train(net,...)
Description
traincgb
is a network training function that updates weight and bias
values according to the conjugate gradient backpropagation with PowellBeale restarts.
net.trainFcn = 'traincgb'
sets the network trainFcn
property.
[net,tr] = train(net,...)
trains the network with
traincgb
.
Training occurs according to traincgb
training parameters, shown here
with their default values:
net.trainParam.epochs  1000  Maximum number of epochs to train
net.trainParam.show  25  Epochs between displays (
net.trainParam.showCommandLine  false  Generate commandline output
net.trainParam.showWindow  true  Show training GUI
net.trainParam.goal  0  Performance goal
net.trainParam.time  inf  Maximum time to train in seconds
net.trainParam.min_grad  1e10  Minimum performance gradient
net.trainParam.max_fail  6  Maximum validation failures
net.trainParam.searchFcn  'srchcha'  Name of line search routine to use
Parameters related to line search methods (not all used for all methods):
net.trainParam.scal_tol  20  Divide into
net.trainParam.alpha  0.001  Scale factor that determines sufficient reduction in

net.trainParam.beta  0.1  Scale factor that determines sufficiently large step size
net.trainParam.delta  0.01  Initial step size in interval location step
net.trainParam.gama  0.1  Parameter to avoid small reductions in performance, usually set to

net.trainParam.low_lim  0.1  Lower limit on change in step size
net.trainParam.up_lim  0.5  Upper limit on change in step size
net.trainParam.maxstep  100  Maximum step length
net.trainParam.minstep  1.0e6  Minimum step length
net.trainParam.bmax  26  Maximum step size
Network Use
You can create a standard network that uses traincgb
with
feedforwardnet
or cascadeforwardnet
.
To prepare a custom network to be trained with traincgb
,
Set
net.trainFcn
to'traincgb'
. This setsnet.trainParam
totraincgb
’s default parameters.Set
net.trainParam
properties to desired values.
In either case, calling train
with the resulting network trains the
network with traincgb
.

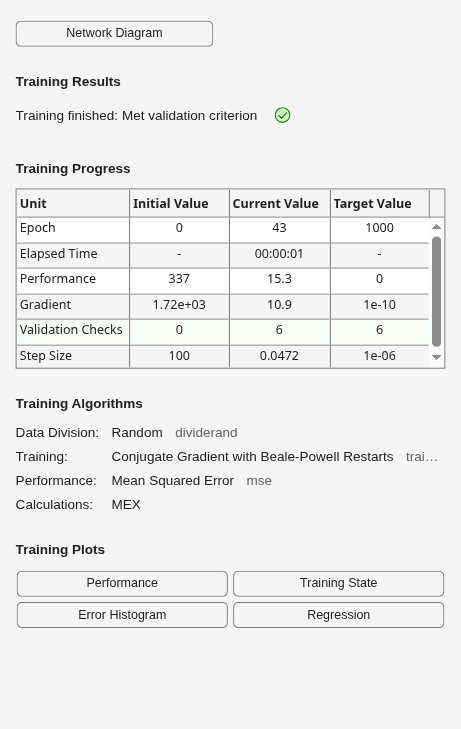

Examples
More About
Algorithms
traincgb
can train any network as long as its weight, net input, and
transfer functions have derivative functions.
Backpropagation is used to calculate derivatives of performance perf
with respect to the weight and bias variables X
. Each variable is adjusted
according to the following:
X = X + a*dX;
where dX
is the search direction. The parameter a
is
selected to minimize the performance along the search direction. The line search function
searchFcn
is used to locate the minimum point. The first search direction is
the negative of the gradient of performance. In succeeding iterations the search direction is
computed from the new gradient and the previous search direction according to the formula
dX = gX + dX_old*Z;
where gX
is the gradient. The parameter Z
can be
computed in several different ways. The PowellBeale variation of conjugate gradient is
distinguished by two features. First, the algorithm uses a test to determine when to reset the
search direction to the negative of the gradient. Second, the search direction is computed from
the negative gradient, the previous search direction, and the last search direction before the
previous reset. See Powell, Mathematical Programming, Vol. 12, 1977, pp.
241 to 254, for a more detailed discussion of the algorithm.
Training stops when any of these conditions occurs:
The maximum number of
epochs
(repetitions) is reached.The maximum amount of
time
is exceeded.Performance is minimized to the
goal
.The performance gradient falls below
min_grad
.Validation performance (validation error) has increased more than
max_fail
times since the last time it decreased (when using validation).
References
Powell, M.J.D., “Restart procedures for the conjugate gradient method,” Mathematical Programming, Vol. 12, 1977, pp. 241–254
Version History
Introduced before R2006a
