geoplayer figure visible
Hide and Show Geographic Player
Load a sequence of latitude and longitude coordinates.
data = load('geoRoute.mat');
Create a geographic player with a zoom level of 10. Configure the player to show its complete history of plotted points.
player = geoplayer(data.latitude(1),data.longitude(1),10,'HistoryDepth',Inf);

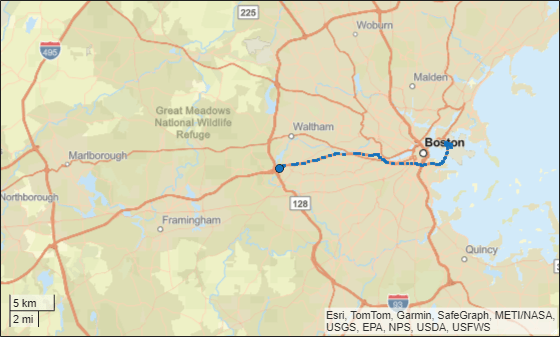

Display the first half of the geographic coordinates in a sequence. The circle marker indicates the current position.
halfLength = round(length(data.latitude)/2); for i = 1:halfLength plotPosition(player,data.latitude(i),data.longitude(i)); end
Hide the player and confirm that it is no longer visible.
ans = logical 0
Add the remaining half of the geographic coordinates to the map.
for i = halfLength+1:length(data.latitude) plotPosition(player,data.latitude(i),data.longitude(i)); end

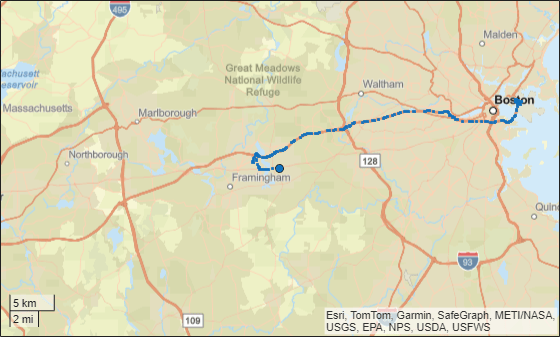

Show the player. The player now displays both halves of the route.
1 Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks®.
