step

Display time-varying magnitude response

collapse all in page

Syntax

step(dfv,filt)
step(dfv,B,A)

Description

step(dfv,filt) displays the time-varying magnitude response of the object filter, filt, in the Dynamic Filter Visualizer figure, as long as filt has a valid freqz() implementation.

example

step(dfv,B,A) displays the magnitude response for the digital filters with numerator and denominator polynomial coefficients stored in B1 and A1, B2 and A2, ..., and BN and AN, respectively.

example

Examples

collapse all

Open Live Script

Design an FIR filter with a time-varying magnitude and phase response. Plot this varying response on a dynamic filter visualizer in normalized frequency units.

Create a dsp.DynamicFilterVisualizer object. Set the PlotAsMagnitudePhase and the NormalizedFrequency properties to true.

dfv = dsp.DynamicFilterVisualizer(PlotAsMagnitudePhase=1,...
    NormalizedFrequency=true,ShowLegend=true,...
    Title="Magnitude and Phase Response",...
    FilterNames="FIR Filter")
dfv =
  dsp.DynamicFilterVisualizer handle with properties:

               FFTLength: 2048
     NormalizedFrequency: 1
          FrequencyRange: [0 1]
                  XScale: 'Linear'
        MagnitudeDisplay: 'Magnitude (dB)'
    PlotAsMagnitudePhase: 1
             AxesScaling: 'Auto'

  Show all properties

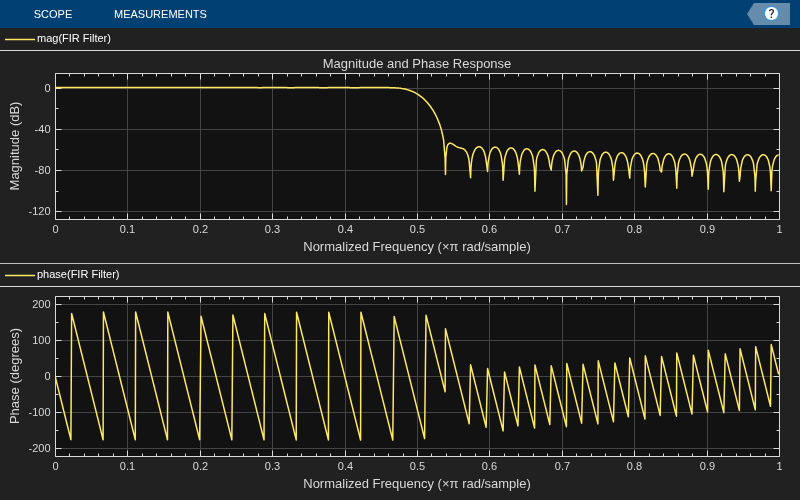

Vary the cutoff frequency of the FIR filter k from 0.1 to 0.5 in increments of 0.001. View the varying magnitude and phase response using the dynamic filter visualizer.

for k = 0.1:0.001:0.5
    b = designLowpassFIR(FilterOrder=90,CutoffFrequency=k);
    dfv(b,1);
end

Open Live Script

Visualize the varying magnitude response of the variable bandwidth FIR filter using the dynamic filter visualizer.

Create a dsp.DynamicFilterVisualizer object.

dfv = dsp.DynamicFilterVisualizer(YLimits=[-160 10],...
    FilterNames="Variable Bandwidth FIR Filter")
dfv =
  dsp.DynamicFilterVisualizer handle with properties:

               FFTLength: 2048
     NormalizedFrequency: 0
              SampleRate: 44100
          FrequencyRange: [0 22050]
                  XScale: 'Linear'
        MagnitudeDisplay: 'Magnitude (dB)'
    PlotAsMagnitudePhase: 0
             AxesScaling: 'Manual'

  Show all properties

Design a bandpass variable bandwidth FIR filter with a center frequency of 5 kHz and a bandwidth of 4 kHz.

Fs = 44100;
vbw = dsp.VariableBandwidthFIRFilter(FilterType="Bandpass",...
    FilterOrder=100,...
    SampleRate=Fs,...
    CenterFrequency=5e3,...
    Bandwidth=4e3);

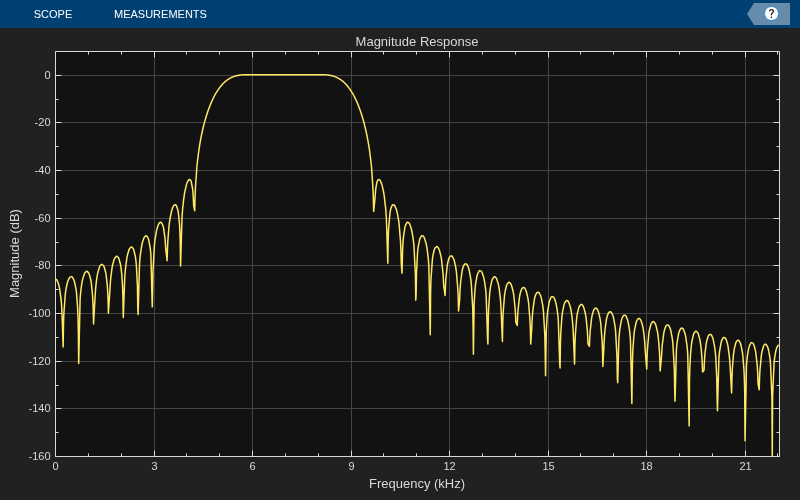

Vary the center frequency of the filter. Visualize the varying magnitude response of the filter using the dsp.DynamicFilterVisualizer object.

for idx  = 1:100
    dfv(vbw);
    vbw.CenterFrequency = vbw.CenterFrequency + 20;
end

Input Arguments

collapse all

Dynamic filter visualizer, specified as a dsp.DynamicFilterVisualizer object.

Filter System object with a valid freqz() implementation.

Numerator polynomial coefficients, specified as a row vector.

Data Types: single | double

Denominator polynomial coefficients, specified as a:

  • scalar –– The filter is an FIR filter.

  • row vector –– The filter is an IIR filter.

Data Types: single | double

Version History

Introduced in R2018b
