deleteCursor

Delete Logic Analyzer cursor

Syntax

deleteCursor(scope,tag)

Description

example

deleteCursor(scope,tag) deletes the Logic Analyzer cursor specified by the input tag.

Examples

collapse all

This example shows how to use functions to create, manipulate, and delete cursors in a dsp.LogicAnalyzer object.

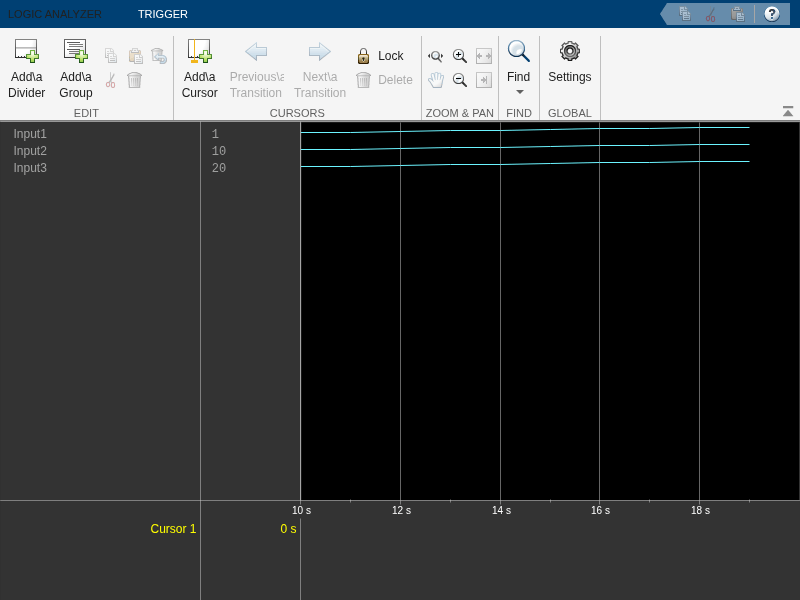

Create Logic Analyzer and Signals

scope = dsp.LogicAnalyzer('NumInputPorts',3);
for ii = 1:20
    scope(ii,10*ii,20*ii);
end

Add Cursor

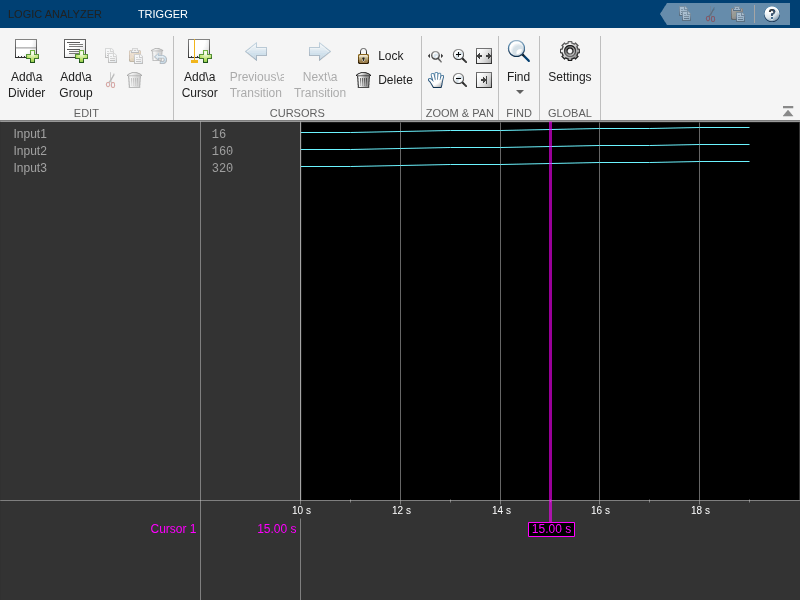

cursor = addCursor(scope,'Location',15,'Color','Cyan');
getCursorInfo(scope,cursor)
ans = struct with fields:
    Location: 15
       Color: [0 1 1]
      Locked: 0
         Tag: 'C2'

Modify Cursor

modifyCursor(scope,cursor,'Color','Magenta')

Remove Cursor

tags = getCursorTags(scope);
deleteCursor(scope,tags{1});

Input Arguments

collapse all

The Logic Analyzer object from which you want to delete a cursor, specified as a handle to the dsp.LogicAnalyzer object.

The tag identifying which cursor to delete, specified as a randomly assigned character vector.

Example: deleteCursor(scope,tag) deletes a cursor from Logic Analyzer.

Data Types: char | string

Introduced in R2013a
