moveDisplayChannel

Move position of Logic Analyzer display channel

Syntax

moveDisplayChannel(scope,tag,'DisplayChannel',displayChannelValue)

Description

example

moveDisplayChannel(scope,tag,'DisplayChannel',displayChannelValue) moves the display channel, either a wave or a divider, specified by the input tag, to the new location specified by the input displayChannelValue.

Examples

collapse all

Use functions to construct and manipulate a dsp.LogicAnalyzer System object.

Display Waves on Logic Analyzer scope.

scope = dsp.LogicAnalyzer('NumInputPorts',2);

stop = 30;
for count = 1:stop
    sinValVec = sin(count/stop*2*pi);
    cosValVec = cos(count/stop*2*pi);
    cosValVecOffset = cos((count+10)/stop*2*pi);

    scope([count (count-(stop/2))],[sinValVec cosValVec cosValVecOffset])
end

Reorganize Display

digitalDividerTag = addDivider(scope,'Name','Digital','Height',20);
analogDividerTag = addDivider(scope,'Name','Analog','Height',40);

tags = getDisplayChannelTags(scope);

modifyDisplayChannel(scope,tags{1},'InputChannel',1,...
    'Name','Ramp Digital','Height',40);
modifyDisplayChannel(scope,tags{2},'InputChannel',2,...
    'Name','Waves Analog','Format','Analog','Height',80);

moveDisplayChannel(scope,digitalDividerTag,'DisplayChannel',1)
moveDisplayChannel(scope,tags{2},'DisplayChannel',length(tags))

show(scope)

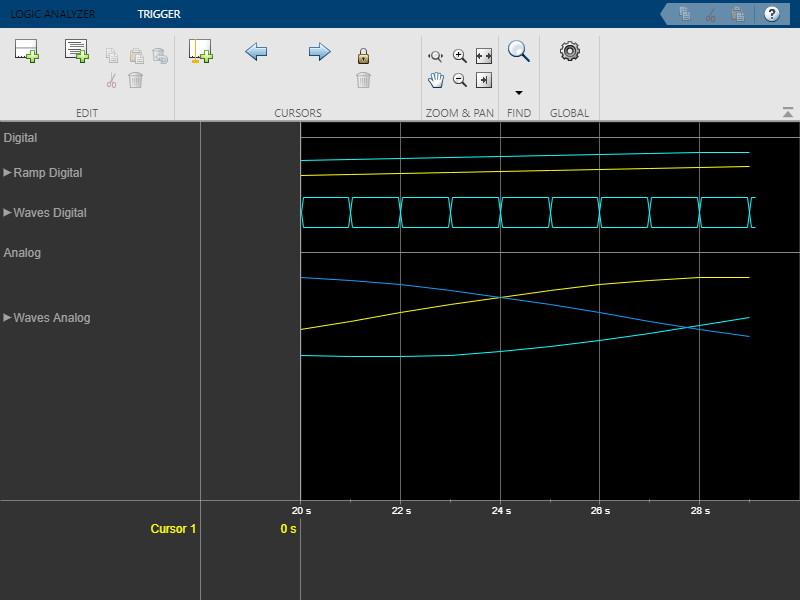

Duplicate Wave and Check Information

addWave(scope,'InputChannel',2,'Name','Waves Digital','Format','Digital',...
    'Height',30,'DisplayChannel',3);

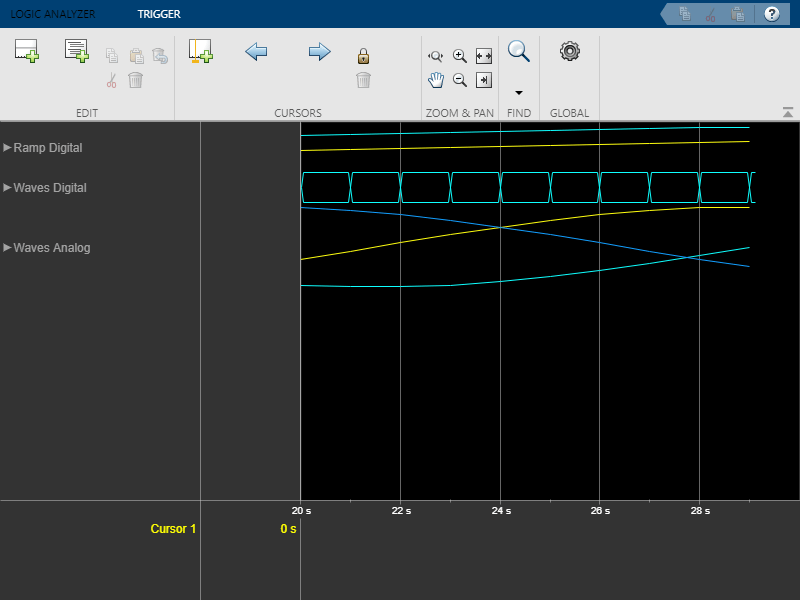

Remove Dividers

deleteDisplayChannel(scope,digitalDividerTag)
deleteDisplayChannel(scope,analogDividerTag)

Clear variables

clear analogDividerTag cosValVec cosValVecOffset count digitalDividerTag duplicateWave scope sinValVec stop tags

Input Arguments

collapse all

The Logic Analyzer object in which you want to move a display channel, specified as a handle to the dsp.LogicAnalyzer object.

The tag identifying which display channel to move.

Example: 'W1'

Data Types: char | string

The location identifying where the display channel should be moved, specified as a scalar integer.

Example: 'DisplayChannel',2

Data Types: double

Introduced in R2013a
