Parks-McClellan FIR filter

`b = firgr(n,f,a,w)`

b = firgr(n,f,a,'hilbert')

b = firgr(m,f,a,r),

b = firgr({m,ni},f,a,r)

b = firgr(n,f,a,w,e)

b = firgr(n,f,a,s)

b = firgr(n,f,a,s,w,e)

b = firgr(...,'1')

b = firgr(...,'minphase')

b = firgr(...,
'check')

b = firgr(...,{lgrid}),

[b,err] = firgr(...)

[b,err,res] = firgr(...)

b = firgr(n,f,fresp,w)

b = firgr(n,f,{* fresp*,p1,p2,...},w)

b = firgr(n,f,a,w)

`firgr`

is a minimax filter design algorithm
you use to design the following types of real FIR filters:

Types 1-4 linear phase:

Type 1 is even order, symmetric

Type 2 is odd order, symmetric

Type 3 is even order, antisymmetric

Type 4 is odd order, antisymmetric

Minimum phase

Maximum phase

Minimum order (even or odd)

Extra ripple

Maximal ripple

Constrained ripple

Single-point band (notching and peaking)

Forced gain

Arbitrary shape frequency response curve filters

`b = firgr(n,f,a,w)`

returns
a length `n`

+1 linear phase FIR filter which has
the best approximation to the desired frequency response described
by `f`

and `a`

in the minimax sense. `w`

is
a vector of weights, one per band. When you omit `w`

,
all bands are weighted equally. For more information on the input
arguments, refer to `firpm`

in *Signal
Processing Toolbox™ User's
Guide*.

`b = firgr(n,f,a,'hilbert')`

and `b`

= `firgr(n,f,a,'differentiator')`

design
FIR Hilbert transformers and differentiators. For more information
on designing these filters, refer to `firpm`

in *Signal
Processing Toolbox User's
Guide*.

`b = firgr(m,f,a,r),`

where `m`

is
one of '`minorder`

', '`mineven`

'
or '`minodd`

', designs filters repeatedly until the
minimum order filter, as specified in `m`

, that meets
the specifications is found. `r`

is a vector containing
the peak ripple per frequency band. You must specify `r`

.
When you specify '`mineven`

' or '`minodd`

',
the minimum even or odd order filter is found.

`b = firgr({m,ni},f,a,r)`

where `m`

is
one of '`minorder`

', '`mineven`

'
or '`minodd`

', uses `ni`

as the
initial estimate of the filter order. `ni`

is optional
for common filter designs, but it must be specified for designs in
which `firpmord`

cannot be used, such as while designing
differentiators or Hilbert transformers.

`b = firgr(n,f,a,w,e)`

specifies
independent approximation errors for different bands. Use this syntax
to design extra ripple or maximal ripple filters. These filters have
interesting properties such as having the minimum transition width. `e`

is
a cell array of character vectors specifying the approximation errors
to use. Its length must equal the number of bands. Entries of `e`

must
be in the form '`e#`

' where `#`

indicates
which approximation error to use for the corresponding band. For example,
when `e = {'e1','e2','e1'}`

, the first and third
bands use the same approximation error `'e1'`

and
the second band uses a different one `'e2'`

. Note
that when all bands use the same approximation error, such as `{'e1','e1','e1',...}`

,
it is equivalent to omitting `e`

, as in ```
b
= firgr(n,f,a,w)
```

.

`b = firgr(n,f,a,s)`

is
used to design filters with special properties at certain frequency
points. `s`

is a cell array of character vectors
and must be the same length as `f`

and `a`

.
Entries of `s`

must be one of:

`'n'`

— normal frequency point.`'s'`

— single-point band. The frequency “band” is given by a single point. The corresponding gain at this frequency point must be specified in`a`

.`'f'`

— forced frequency point. Forces the gain at the specified frequency band to be the value specified.`'i'`

— indeterminate frequency point. Use this argument when adjacent bands abut one another (no transition region).

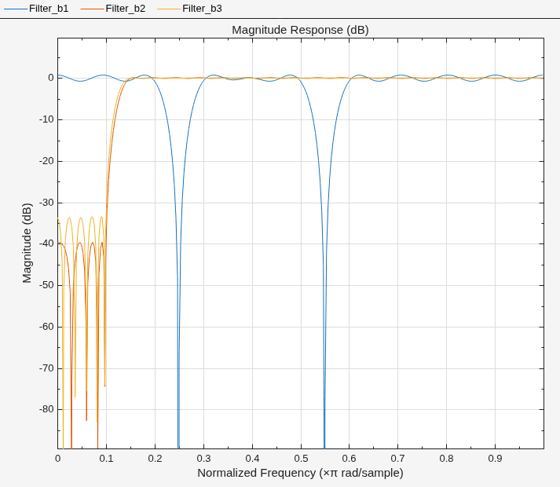

For example, the following command designs a bandstop filter with zero-valued single-point stop bands (notches) at 0.25 and 0.55.

b = firgr(42,[0 0.2 0.25 0.3 0.5 0.55 0.6 1],... [1 1 0 1 1 0 1 1],{'n' 'n' 's' 'n' 'n' 's' 'n' 'n'})

```
b = firgr(82,[0 0.055 0.06 0.1 0.15 1],[0 0 0 0 1 1],...{'n'
'i' 'f' 'n' 'n' 'n'})
```

designs a highpass filter with the
gain at 0.06 forced to be zero. The band edge at 0.055 is indeterminate
since the first two bands actually touch. The other band edges are
normal.

`b = firgr(n,f,a,s,w,e)`

specifies
weights and independent approximation errors for filters with special
properties. The weights and properties are included in vectors `w`

and `e`

.
Sometimes, you may need to use independent approximation errors to
get designs with forced values to converge. For example,

b = firgr(82,[0 0.055 0.06 0.1 0.15 1], [0 0 0 0 1 1],... {'n' 'i' 'f' 'n' 'n' 'n'}, [10 1 1] ,{'e1' 'e2' 'e3'});

`b = firgr(...,'1')`

designs
a type 1 filter (even-order symmetric). You can specify type 2 (odd-order
symmetric), type 3 (even-order antisymmetric), and type 4 (odd-order
antisymmetric) filters as well. Note that restrictions apply to `a`

at f = 0 or f
= 1 for FIR filter types 2, 3, and 4.

`b = firgr(...,'minphase')`

designs
a minimum-phase FIR filter. You can use the argument `'maxphase'`

to
design a maximum phase FIR filter.

```
b = firgr(...,
'check')
```

returns a warning when there are potential transition-region
anomalies.

`b = firgr(...,{lgrid}),`

where `{lgrid}`

is
a scalar cell array. The value of the scalar controls the density
of the frequency grid by setting the number of samples used along
the frequency axis.

`[b,err] = firgr(...)`

returns
the unweighted approximation error magnitudes. `err`

contains
one element for each independent approximation error returned by the
function.

`[b,err,res] = firgr(...)`

returns
the structure `res`

comprising optional results computed
by `firgr`

. `res`

contains the following
fields.

Structure Field | Contents |
---|---|

`res.fgrid` | Vector containing the frequency grid used in the filter design optimization |

`res.des` | Desired response on |

`res.wt` | Weights on |

`res.h` | Actual frequency response on the frequency grid |

`res.error` | Error at each point (desired response - actual response) on the frequency grid |

`res.iextr` | Vector of indices into |

`res.fextr` | Vector of external frequencies |

`res.order` | Filter order |

`res.edgecheck` | Transition-region anomaly check. One element per band
edge. Element values have the following meanings: 1
= OK, 0 = probable transition-region
anomaly, -1 = edge not checked. Computed when you specify the |

`res.iterations` | Number of |

`res.evals` | Number of function evaluations for the optimization |

`firgr`

is also a “function function,”
allowing you to write a function that defines the desired frequency
response.

`b = firgr(n,f,fresp,w)`

returns
a length N + 1 FIR filter which has the best approximation to the
desired frequency response as returned by the user-defined function `fresp`

.
Use the following `firgr`

syntax to call `fresp`

:

[dh,dw] = fresp(n,f,gf,w)

where:

`fresp`

identifies the function that you use to define your desired filter frequency response.`n`

is the filter order.`f`

is the vector of frequency band edges which must appear monotonically between 0 and 1, where 1 is one-half of the sampling frequency. The frequency bands span`f(k)`

to`f(k+1)`

for`k`

odd. The intervals`f(k+1)`

to`f(k+2)`

for`k`

odd are “transition bands” or “don't care” regions during optimization.`gf`

is a vector of grid points that have been chosen over each specified frequency band by`firgr`

, and determines the frequencies at which`firgr`

evaluates the response function.`w`

is a vector of real, positive weights, one per band, for use during optimization.`w`

is optional in the call to`firgr`

. If you do not specify`w`

, it is set to unity weighting before being passed to`fresp`

.`dh`

and`dw`

are the desired frequency response and optimization weight vectors, evaluated at each frequency in grid`gf`

.

`firgr`

includes a predefined frequency response
function named `'firpmfrf2'`

. You can write your
own based on the simpler `'firpmfrf'`

. See the help
for `private/firpmfrf`

for more information.

`b = firgr(n,f,{`

specifies
optional arguments * fresp*,p1,p2,...},w)

`p1`

, `p2`

,..., `pn`

to
be passed to the response function `fresp`

.`b = firgr(n,f,a,w)`

is
a synonym for `b = firgr(n,f,{'firpmfrf2',a},w)`

,
where `a`

is a vector containing your specified response
amplitudes at each band edge in `f`

. By default, `firgr`

designs
symmetric (even) FIR filters. `'firpmfrf2'`

is the
predefined frequency response function. If you do not specify your
own frequency response function (the `fresp`

variable), `firgr`

uses
'`firpmfrf2'`

.

`b = firgr(...,'h')`

and `b = firgr(...,'d')`

design
antisymmetric (odd) filters. When you omit the `'h'`

or
`'d'`

arguments from the `firgr`

command syntax,
each frequency response function `fresp`

can tell
`firgr`

to design either an even or odd filter. Use the command
syntax ```
sym =
```

`fresp`

`('defaults',{n,f,[],w,p1,p2,...})`

.

`firgr`

expects `fresp`

to
return `sym = 'even'`

or `sym = 'odd'`

.
If `fresp`

does not support this call, `firgr`

assumes
even symmetry.

For more information about the input arguments to `firgr`

,
refer to `firpm`

.

Shpak, D.J. and A. Antoniou, “A generalized Remez method
for the design of FIR digital filters,” *IEEE ^{®} Trans.
Circuits and Systems*, pp. 161-174, Feb. 1990.
