kagi
Kagi chart
Description
Examples

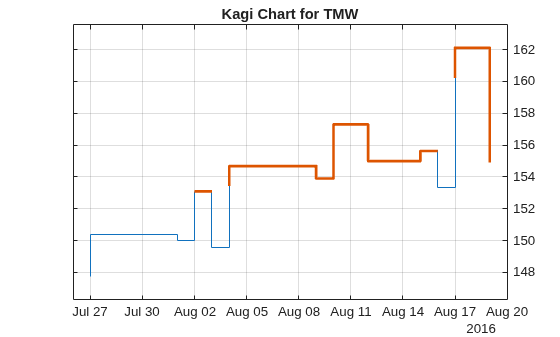

Generate a Kagi Chart for a Data Series for a Stock
Load the file SimulatedStock.mat
, which provides a timetable (TMW
) for financial data for TMW stock. This Kagi chart is for closing prices of the stock TMW for the most recent 21 days. Note that the variable name of asset price is be renamed to 'Price'
(case insensitive).
load SimulatedStock.mat TMW.Properties.VariableNames{'Close'} = 'Price'; kagi(TMW(end-20:end,:)) title('Kagi Chart for TMW')
Input Arguments
Data
— Data for a series of prices
matrix | table | timetable
Data for a series of prices, specified as a matrix, table, or timetable.
Timetables and tables with M
rows must contain a variable
named 'Price'
(case insensitive).
Data Types: double
| table
| timetable
ax
— Valid axis object
current axes (ax = gca
) (default) | axes object
(Optional) Valid axis object, specified as an axes object. The kagi plot
is created in the axes specified by ax
instead of in the
current axes (ax = gca
). The option ax
can precede any of the input argument combinations.
Data Types: object
Output Arguments
h
— Graphic handle of the figure
handle object
Graphic handle of the figure, returned as a handle object.
Version History
Introduced in R2008aR2022b: Support for negative price data
The Data
input accepts negative prices.
R2018a: Support for matrix, time, or timetable input for data
kagi
accepts Data
input as a matrix,
timetable
, or table
.
The syntax for kagi
has changed. Previously, when using table
input, the first column of dates could be serial date numbers, date character
vectors, or datetime arrays, and you were required to have specific number of
columns.
When using table input, the new syntax for kagi
supports:
No need for time information. If you want to pass in date information, use timetable input.
No requirement of specific number of columns. However, you must provide valid column names.
kagi
must contain a column named‘price’
(case insensitive).
