HDL FIFO

Store sequence of input samples in first in, first out register

•

Libraries:
HDL Coder / HDL RAMs

Description

The HDL FIFO block stores a sequence of input samples in a first in, first out (FIFO) register. The block outputs data in the same order it was written. You can control the FIFO operations by using the Push and Pop input ports. When both control signals are asserted in the same time step, the block performs the pop operation before the push operation.

The HDL FIFO block is functionally and behaviorally similar to FIFO units on hardware platforms. Internally, the block uses the Simple Dual Port RAM System block. You can use this block to generate HDL code that maps to RAM resources on most FPGA devices.

Examples

New

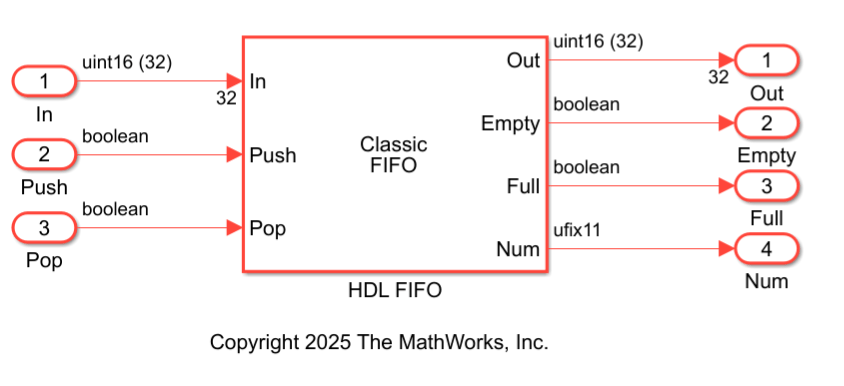

Map HDL FIFO Blocks to UltraRAM Resources on FPGA

Generate HDL code with synthesis attributes that enable UltraRAM inference for an HDL FIFO block on an FPGA.

• Since R2026a
• Open Live Script

Limitations

• When you build the FPGA bitstream for the HDL FIFO block, the global reset logic does not reset the FIFO register in the block. To reset the FIFO register, you must implement a reset logic.

• The HDL FIFO block does not support continuous sample time. You must specify a discrete sample time for the input to the HDL FIFO block.

Ports

Input

In — Data input signal

scalar | vector

Data input signal, specified as scalar or vector. When you write data to the FIFO, the block pushes the newest data to the end of the FIFO register. The block places subsequent data entries after this entry.

Note

If the signal you connect to the In port is a vector, the data type must match the value specified by the Data input dimensions parameter.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Push — Write control signal

scalar

Write control signal, specified as a scalar of type Boolean. When this port receives a value of 1, the block pushes the current input at the In port to the end of the FIFO register.

Data Types: Boolean

Pop — Read control signal

scalar

Read control signal, specified as a scalar of type Boolean. When this port receives a value of 1, the block pops the first element from the FIFO register and outputs that value at the Out port.

Data Types: Boolean

rst — Reset control signal

scalar

Reset control signal, specified as a scalar of type Boolean. When this port receives a value of 1, the block resets the Empty, Full, and Num output ports to their initial states.

Dependencies

To enable this port, select the Local reset port block parameter.

Data Types: Boolean

Output

Out — Data output signal

scalar | vector

Data output signal, returned as a scalar or vector. This port outputs the earliest written data from the FIFO register and holds that value until the next valid read operation.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Empty — Empty status signal

scalar

Empty status signal, returned as a scalar. The block sets this signal to 1 when the FIFO register is empty and contains no data entries.

Dependencies

To enable this port, select the Show empty register indicator port (Empty) block parameter.

Data Types: Boolean

Full — Full status signal

scalar

Full status signal, returned as a scalar. The block sets this signal to 1 when the FIFO register is full and cannot accept additional data entries.

Dependencies

To enable this port, select the Show full register indicator port (Full) block parameter.

Data Types: Boolean

Num — Number of data entries

scalar

Number of data entries, returned as a scalar. This signal indicates the number of data entries currently stored in the FIFO register. The block increments this value by 1 each time you write data to the FIFO, and decrements it by 1 each time you read from the FIFO.

Dependencies

To enable this port, select the Show number of entries register port (Num) block parameter.

Data Types: uint8 | uint16 | uint32 | uint64 | fixed point

Parameters

Register size — Number of entries

10 (default) | positive integer

Specify the number of entries that the FIFO register can hold. The minimum value is 4.

Programmatic Use

Block parameter: fifo_size

Type: character vector

Value: Integer greater than or equal to four

Default: 10

Mode — Operation mode

Classic (default) | FWFT

Specify the operation mode of the block. By default, the Mode parameter is set to Classic, and the block icon displays Classic FIFO. If you set this parameter to FWFT, the block icon display FWFT FIFO. In FWFT mode, you can look ahead and view the first word written to the FIFO register without placing a read request. The FWFT mode is useful when applying back-pressure using AXI4-Stream interfaces.

Programmatic Use

Block parameter: mode

Type: character vector

Value: 'Classic' | 'FWFT'

Default: 'Classic'

The ratio of output sample time to input sample time — Sample rate ratio

1 (default) | positive integer

Specify the ratio of output sample time to input sample time. The default ratio value is 1, which means that the In and Push input ports and Out and Pop output ports run at the same sample rate. You can configure the inputs and outputs to run at different sample times by entering a positive integer or a value in the form of 1/N, where N is a positive integer. For example, if you enter 1/2, the output sample time is half the input sample time, so the outputs run faster. The Full, Empty, and Num output ports run at the faster rate.

Programmatic Use

Block parameter: ratio

Type: character vector

Value: Integer greater than or equal to one

Default: 1

Data input dimensions — Input data dimension

1 (default) | positive integer

Since R2026a

Specify the dimension of the input data.

Note

The Data input dimensions parameter must match the vector length of the input signal at the In port.

Programmatic Use

Block parameter: dataDim

Type: character vector

Value: Integer greater than or equal to one

Default: 1

Push onto full register — Overflow condition

Warning (default) | Ignore | Error

Specify how the block responds when you try to write to a FIFO that is full.

Programmatic Use

Block parameter: push_msg

Type: character vector

Value: 'Warning' | 'Ignore' | 'Error'

Default: 'Warning'

Pop empty register — Underflow condition

Warning (default) | Ignore | Error

Specify how the block responds when you try to read from a FIFO that is empty.

Programmatic Use

Block parameter: pop_msg

Type: character vector

Value: 'Warning' | 'Ignore' | 'Error'

Default: 'Warning'

Show empty register indicator port (Empty) — Enable empty port

on (default) | off

Specify whether to enable the Empty output port. This port outputs 1 when the FIFO register is empty and 0 when the FIFO contains one or more data entries.

Programmatic Use

Block parameter: show_empty

Type: character vector

Value: 'on' | 'off'

Default: 'on'

Show full register indicator port (Full) — Enable full port

on (default) | off

Specify whether to enable the Full output port. This port outputs 1 when the FIFO register is full.

Programmatic Use

Block parameter: show_full

Type: character vector

Value: 'on' | 'off'

Default: 'on'

Show number of register entries port (Num) — Enable num port

on (default) | off

Specify whether to enable the Num output port. This port outputs the number of data entries that are currently available in the FIFO queue.

Programmatic Use

Block parameter: show_num

Type: character vector

Value: 'on' | 'off'

Default: 'on'

Local reset port — Enable reset port

off (default) | on

Specify whether to enable the rst input port. When this port receives a value of 1, the block resets the Empty, Full, and Num output ports to their initial states.

Programmatic Use

Block parameter: rst_port

Type: character vector

Value: 'on' | 'off'

Default: 'off'

Algorithms

Classic FIFO Write Operation

This figure shows the write operation. The Push input port acts as the enable signal for the write operation. In the figure, the write_en denotes this signal.

When the write_en signal is 0, the block does not write data to the FIFO and the block asserts an Empty flag.

When the write_en becomes 1, the block pushes the din signal at input port In to the end of the FIFO register in the next time step. The Num signal indicates the number of data entries in the FIFO register. Every time you write data into the FIFO, the Num signal increments by 1. At time step 6, write_en is 1. At the next time step 7, data is written to the FIFO. Num signal increments by 1 and the Empty flag is de-asserted.

This FIFO uses the register size specified by the Register size parameter. By default, register size is 10. In the figure, when the Num signal becomes 10 at time step 34, the Full signal is asserted. After the Full signal becomes 1, if you write more entries into the FIFO, the block generates a warning.

Classic FIFO Read Operation

This figure shows the read operation. The Pop input port acts as the enable signal for the read operation. In the figure, the read_en denotes this signal.

In the figure, when the read_en signal is 1 at time step 34, the dout signal outputs the oldest entry in the FIFO in the next time step 35. The Full flag is de-asserted, the Num signal is decrements by 1 starting from time step 35 as you read data from the FIFO.

When the Num signal is 0, the Empty signal is asserted. After the Empty signal becomes 0, if you read more entries from the FIFO, the block generates a warning.

First-Word Fall-Through FIFO Write Operation

This figure shows the write operation when you set the Mode parameter to FWFT. The Push input port acts as the enable signal for the write operation. In the figure, the write_en denotes this signal

When the write_en signal is 0, the block does not write data to the FIFO and the block asserts an Empty flag.

When the write_en becomes 1, the block pushes the din signal at input port In to the end of the FIFO register in the next time step. The Num signal indicates the number of data entries in the FIFO register. Every time you write data into the FIFO, the Num signal increments by 1. At time step 6, write_en is 1. At the next time step 7, data is written to the FIFO. Num signal increments by 1 and the Empty flag is de-asserted.

The FIFO uses the register size specified by the Register sizeparameter. By default register size of 10. In the figure, when Num signal becomes 13 at time step 43, the Full signal is asserted. In FWFT mode, the FIFO can store an additional 3 values beyond its specified size. After the Full signal becomes 1, if you write more entries into the FIFO, the block generates a warning.

First-Word Fall-Through FIFO Read Operation

This figure shows the read operation when you set the Mode parameter to FWFT. The Pop input port acts as the enable signal for the read operation. In the figure, the read_en denotes this signal.

In the FWFT mode, the first word you write to the FIFO falls through to the output signal Out.

In the figure, the read_en becomes 1 at time step 42, the FIFO read the first word dout at time step 9. You can use this capability to look ahead and see the first word that has been written to the FIFO.

When the Num signal is 0, the Empty signal is asserted. After the Empty signal becomes 0, if you read more entries from the FIFO, the block generates a warning.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

General
ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline.
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline.
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline.
SynthesisAttributes	Specifies the synthesis attributes for the blocks and block output signals in the model. The generated HDL code contains these attributes. For more information, see SynthesisAttributes.

Version History

Introduced in R2014a

R2026a: RAMDirective HDL block property has been removed

The RAMDirective HDL block property has been removed. To map RAM blocks in your design to the RAM blocks on the target FPGA, use the SynthesisAttributes HDL block property instead.

R2026a: Specify synthesis attributes for blocks and block output signals

Use the SynthesisAttributes HDL block property to specify the synthesis attributes for the block and its output signals. HDL Coder includes these attributes in the generated HDL code.

R2026a: Support vector data types at input port

The HDL FIFO block now supports vector data type at the In port. Use the Data input dimensions parameter to specify the dimension of the vector input.

R2024a: Half-Precision and Boolean Data Support

The block now supports HDL code generation with input data of type Half or Boolean.
