sschdladvisor
Open Simscape HDL Workflow Advisor
Description
Examples
Open Simscape HDL Workflow Advisor for Model

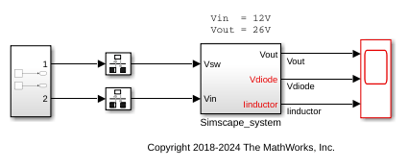

Open the Boost Converter model.
ModelName = 'sschdlexBoostConverterExample';
open_system(ModelName)
Open the Simscape HDL Workflow Advisor for the Boost Converter model.
sschdladvisor(ModelName)
Open Simscape HDL Workflow Advisor for Subsystem

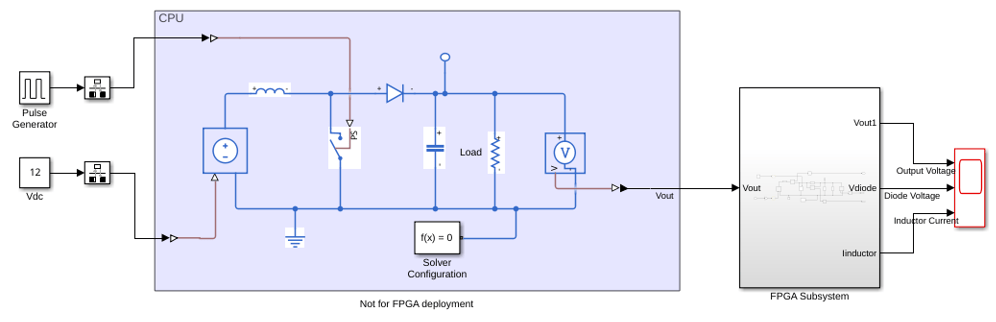

Open the Boost Converter multi-network model.
ModelName = 'sschdlexBoostConverterMultiNetworkExample';
open_system(ModelName)

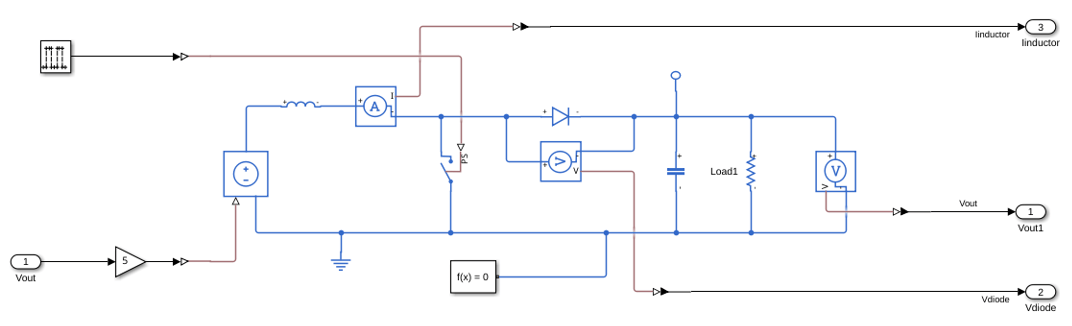

Select the FPGA Subsystem
block and generate a state-space equivalent for it.
SubsysName = 'sschdlexBoostConverterMultiNetworkExample/FPGA Subsystem';
open_system(SubsysName)
Open the Simscape HDL Workflow Advisor for the FPGA Subsystem
block.
sschdladvisor(SubsysName)
To generate a state-space equivalent for the FPGA Subsystem
block, run the tasks in the Advisor.
Input Arguments
model
— Model name
character vector | string scalar | handle
Model name or handle, specified as a character vector, string scalar, or model handle.
Data Types: char
| string
| double
subsystem
— Subsystem name
character vector | string scalar | handle
Subsystem name or handle, specified as a character vector, string scalar, or subsystem handle.
Data Types: char
| string
| double
Version History
Introduced in R2018bR2024b: Simscape network selection for FPGA deployment
You can generate a Simulink® state-space equivalent model for any desired Simscape™ network of your plant model while retaining the additional networks in their original forms.
