Valves and Orifices

Variable local restrictions for fluid flow control

Use these blocks to model orifices and valves in the gas domain.

Simscape Blocks

expand all

Orifice (G)Flow restriction in a gas network
2-Way Directional Valve (G)Controlled valve with two ports in a gas network
3-Way Directional Valve (G)Controlled valve with three ports in a gas network
4-Way 3-Position Directional Valve (G)Controlled valve with four ports in a gas network
Check Valve (G)Check valve in a gas network
Pilot-Operated Check Valve (G)Check valve with control port in a gas network
Ball Valve (G)Ball valve in a gas network (Since R2023b)
Poppet Valve (G)Poppet valve in a gas network
Gate Valve (G)Gate valve in a gas network
Temperature Control Valve (G)Temperature control valve in a gas network
Pressure Reducing Valve (G)Pressure reducing valve in a gas network
Pressure Relief Valve (G)Pressure relief valve in a gas network
Multiposition Valve Actuator Multiposition actuator in any fluid domain
Proportional Valve ActuatorPower-controlled valve actuator in any fluid domain

Topics

Featured Examples

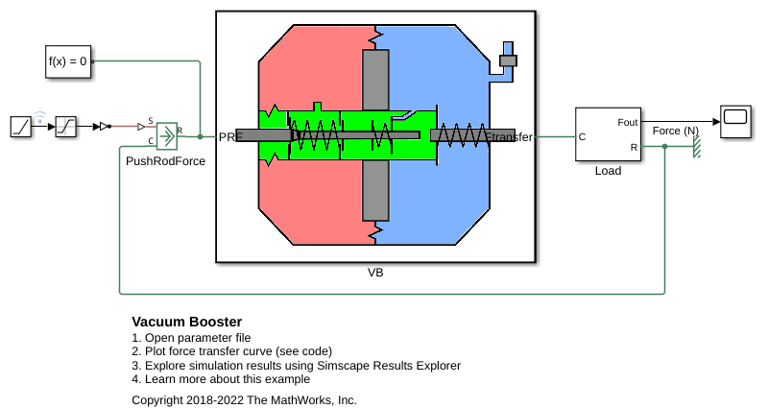

Vacuum Booster

Vacuum Booster

Model, parameterize, and test a vacuum booster. The model is used to generate the plot between applied and generated forces for the brake vacuum booster.

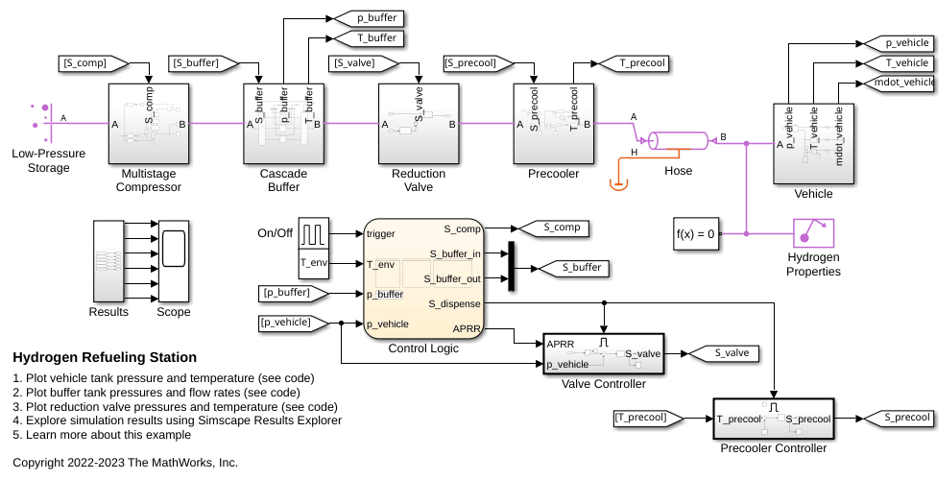

Hydrogen Refueling Station

Hydrogen Refueling Station

Models a hydrogen refueling station. Hydrogen is stored in low-pressure storage tanks at 200 bar at the station. A 3-stage intercooled compressor maintains the necessary pressure in a cascade buffer storage system so that the station is ready to dispatch hydrogen to any connected vehicles. The buffer is divided into high-pressure tanks at 950 bar, medium-pressure tanks at 650 bar, and low-pressure tanks at 450 bar. To avoid wasting compression energy, the lowest pressure buffer that is greater than the vehicle tank pressure is used to dispatch hydrogen. Priority valves switches between the different buffer tanks to control which buffer tanks to fill and discharge from.
