Tanks and Accumulators

Chambers with variable fluid volumes

Use these blocks to model storage systems in the isothermal liquid domain.

Simscape Blocks

Tank (IL)	Tank in an isothermal liquid system (Since R2020a)
Tank (G-IL)	Pressurized tank with variable gas and isothermal liquid volumes (Since R2023b)
Gas-Charged Accumulator (IL)	Gas-charged accumulator in an isothermal liquid network (Since R2020a)
Spring-Loaded Accumulator (IL)	Accumulator with a spring used for energy storage in an isothermal liquid system (Since R2020a)

Featured Examples

Closed-Circuit Hydraulic Actuator

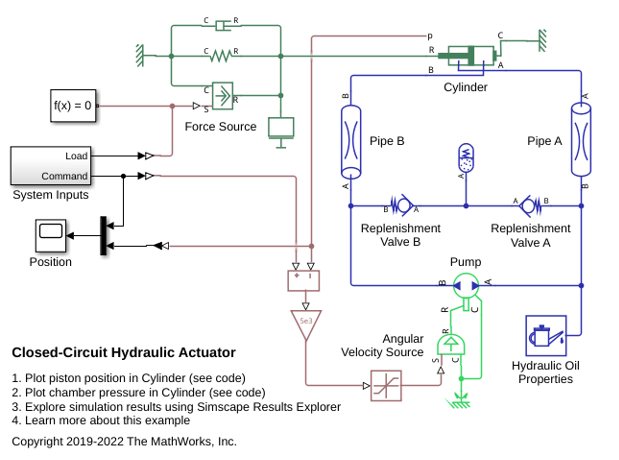

A closed-circuit hydraulic actuator driven by a variable-speed pump. The actuator is arranged as a closed fluid system with two replenishment valves (check valves) and a spring-loaded accumulator serving as a replenishment reservoir. The pump speed is controlled by the difference between the commanded and measured piston position. The actuator acts against a spring, a damper, and a time-varying load.

Open Model

Diesel Engine In-Line Injection System

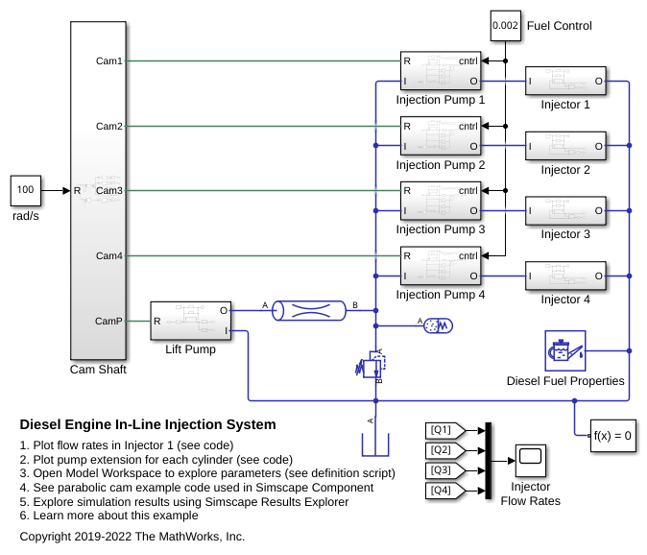

An in-line multi-element diesel injection system. It consists of a cam shaft, a lift pump, four in-line injection pumps, and four injectors.

Open Model
