Estimate abundance maps
A hyperspectral data cube can contain both pure and mixed pixels. Pure pixels exhibit the spectral characteristics of a single class, while the mixed pixels exhibit the spectral characteristics of multiple classes. The spectral signatures of the pure pixels comprise the endmembers that identify the unique classes present in a hyperspectral data cube. The spectral signature of mixed pixels can be a linear combination of two or more endmember spectra. The abundance map identifies the proportion of each endmember present in the spectra of each pixel. For a hyperspectral data cube of spatial dimensions M-by-N containing P endmembers, there exist P abundance maps, each of size M-by-N.
The abundance map estimation process is known as spectral unmixing, which is the decomposition of the spectra of each pixel into a given set of endmember spectra.
This function requires the Image Processing Toolbox™ Hyperspectral Imaging Library. You can install the Image Processing Toolbox Hyperspectral Imaging Library from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.
Estimate Abundance Maps For Hyperspectral Data
Load a MAT-file containing a hyperspectral data cube and endmember signatures into the workspace. Extract the data cube and endmember signatures.
data = load('indian_pines.mat'); dataCube = data.indian_pines; endmembers = data.signatures;
Plot the endmember spectra.

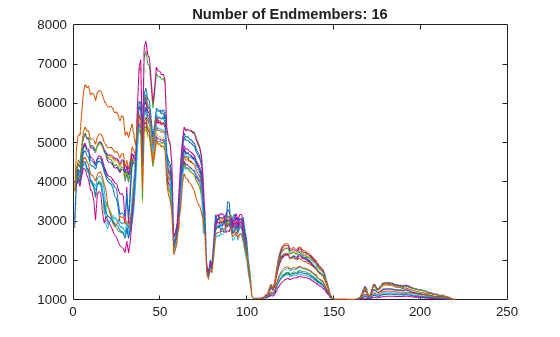

plot(endmembers) numEndMem = num2str(size(endmembers,2)); title(['Number of Endmembers:' numEndMem])
Estimate the abundance maps for the endmember spectra.
abundanceMap = estimateAbundanceLS(dataCube,endmembers);
Display the abundance map for each endmember spectra. The order of the abundance maps is the same as the order of the endmembers in the

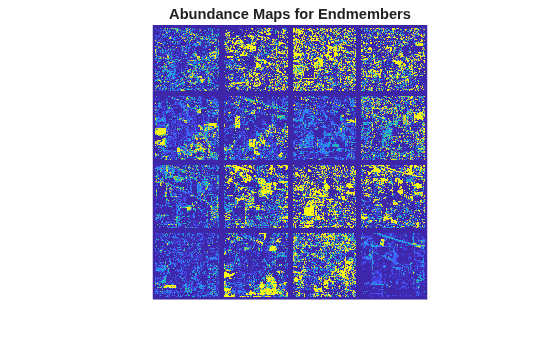

montage(abundanceMap,'Size',[4 4],'BorderSize',[10 10]); colormap default title('Abundance Maps for Endmembers');
Extract Endmembers and Abundance Maps for Spectral Unmixing
Read hyperspectral data into the workspace.
hcube = hypercube('jasperRidge2_R198.hdr');
Extract six endmembers from the hyperspectral data.
endmembers = nfindr(hcube,6);
Estimate the abundance map for each endmember using the fully constrained least squares method.
abundanceMap = estimateAbundanceLS(hcube.DataCube,endmembers,'Method','fcls');
Estimate an RGB image of the data cube using the
rgbImg = colorize(hcube,'Method','RGB');
Display the RGB image.

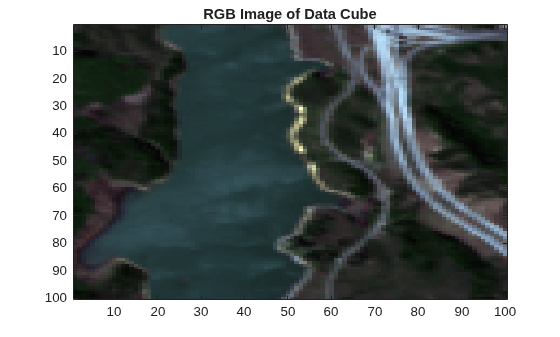

figure imagesc(rgbImg) title('RGB Image of Data Cube')
Display the abundance maps for the endmember spectra. The order of the abundance maps is the same as the order of the endmembers in the
endmembers input argument.

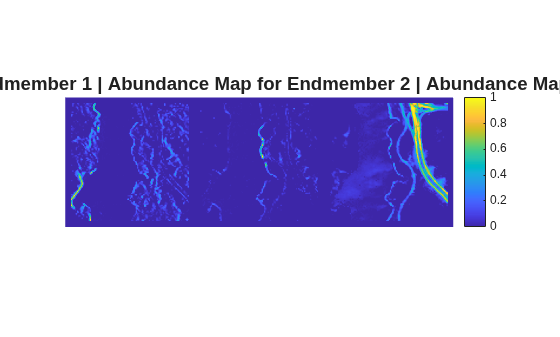

figure montage(abundanceMap(:,:,1:3),'Size',[1 3],'BorderSize',[20 20]) colormap default colorbar title('Abundance Map for Endmember 1 | Abundance Map for Endmember 2 | Abundance Map for Endmember 3','FontSize',14)

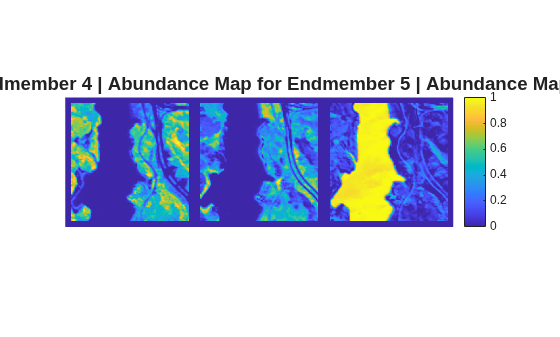

figure montage(abundanceMap(:,:,4:6),'Size',[1 3],'BorderSize',[20 20]) colormap default colorbar title('Abundance Map for Endmember 4 | Abundance Map for Endmember 5 | Abundance Map for Endmember 6','FontSize',14)
inputData — Input hyperspectral data
3-D numeric array |
Input hyperspectral data, specified as a 3-D numeric array that represent the
hyperspectral data cube of size
object. If the input is a
hypercube object, the function reads the data
cube stored in the
DataCube property of the object. The
hyperspectral data cube must be real and non-sparse.
endmembers — Endmember signatures
Endmember signatures, specified as a matrix of size C-by-P. where C is the number of spectral bands in the input hyperspectral data and P is the number of endmember spectral signatures.
estMethod — Method for estimating abundance maps
'ucls' (default) |
Method for estimating abundance maps, specified as one of these values.
'ucls'— Unconstrained least-squares method.
'fcls'— Fully constrained least-squares method.
'ncls'— Nonnegative constrained least-squares method.
abundanceMap — Abundance maps
3-D numeric array
Abundance maps, returned as a 3-D numeric array of size M-by-N-by-P.
 Keshava, N., and J.F. Mustard. “Spectral Unmixing.” IEEE Signal Processing Magazine 19, no. 1 (January 2002): 44–57. https://doi.org/10.1109/79.974727.
 Kay, Steven M. Fundamentals of Statistical Signal Processing. Prentice Hall Signal Processing Series. Englewood Cliffs, N.J: Prentice-Hall PTR, 1993.
Introduced in R2020a
