addRays

Add traced rays to visualization of optical system

Since R2026a

Syntax

addRays(osv)

addRays(osv,rays)

addRays(osv,rays,Name=Value)

Description

Add-On Required: This feature requires the Optical Design and Simulation Library for Image Processing Toolbox add-on.

addRays(osv) traces rays through the optical system in the visualization osv. The addRays function traces rays from the field points specified by the FieldPoints property of the opticalSystem object at the wavelengths specified by Wavelengths property of the opticalSystem object.

addRays(osv,rays) adds the rays rays to the optical system visualization osv.

addRays(osv,rays,Name=Value) specifies visualization properties for the rays using one or more optional name-value arguments. For example, Color="red" renders rays added to the optical system chart in red.

Examples

Visualize Optical System in 2-D

Create a simple optical system.

opsys = opticalSystem;
addRefractiveSurface(opsys,Radius=9,Material=[1.74 25.4],DistanceToNext=3)
addRefractiveSurface(opsys,Radius=-9,DistanceToNext=10)
addImagePlane(opsys)
focus(opsys);

Visualize the optical system in 2-D.

osv2d = view2d(opsys,Title="Convex Lens")

osv2d =
  OpticalSystemViewer2D with properties:

            Title: "Convex Lens"
    OpticalSystem: [1×1 opticalSystem]
           Labels: "none"
      FieldPoints: "on"
             Rays: [0×0 optics.ui.Rays2D]
           Parent: [1×1 Figure]

  Show all properties

Trace rays in the optical system to add to the visualization. Observe that rays contains three ray bundles.

rays = traceRays(opsys)

rays=1×3 RayBundle array with properties:
    FieldPoint
    Wavelength
    Sampling
    RayData

Add the rays to the visualization. Each ray bundle is represented by a different color in the visualization.

addRays(osv2d,rays)

Remove the third ray bundle in the visualization.

removeRays(osv2d,3)

Add component labels to the visualization. The lens and image plane components are labeled as C1 and C2 in the visualization.

osv2d.Labels = "component";

Visualize Optical System in 3-D

Create a simple optical system.

opsys = opticalSystem;
addRefractiveSurface(opsys,Radius=9,Material=[1.74 25.4],DistanceToNext=3)
addRefractiveSurface(opsys,Radius=-9,DistanceToNext=10)
addImagePlane(opsys)

Visualize the optical system in 3-D.

osv3d = view3d(opsys,Title="Convex Lens")

osv3d =
  OpticalSystemViewer3D with properties:

              Title: [0×0 string]
             Labels: "none"
          ClipAngle: 0
               Rays: [0×0 optics.ui.Rays3D]
    BackgroundColor: [0.9608 0.9608 0.9608]
      GradientColor: [0.9020 0.9020 0.9020]
             Parent: [1×1 Figure]

  Show all properties

Trace rays in the optical system to add to the visualization. Observe that rays contains three ray bundles.

rays = traceRays(opsys)

rays=1×3 RayBundle array with properties:
    1×1 RayBundle    1×1 RayBundle    1×1 RayBundle

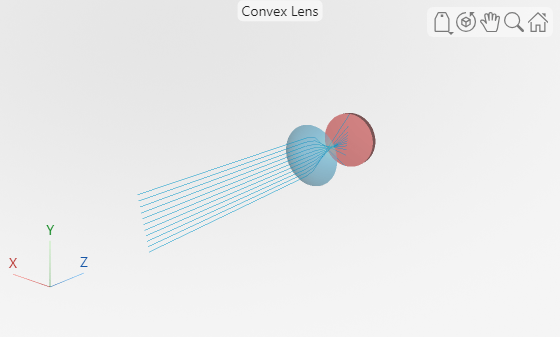

You can add only one ray bundle to a 3-D visualization. Add one of the ray bundles from the traced rays to the visualization.

addRays(osv3d,rays(1))

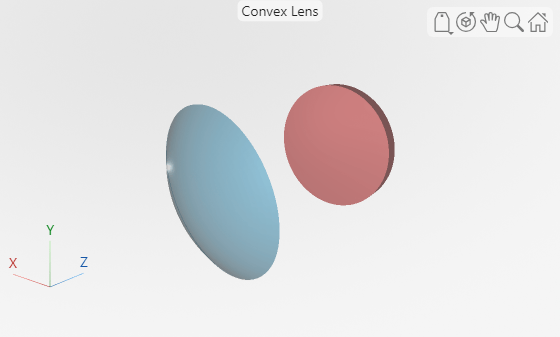

Explode the visualization. The explosion moves each component in the optical system visualization radially outward to enable you to better visualize the internal structure of the optical system.

explode(osv3d)

Restore the visualization to its state before the explosion.

unexplode(osv3d)

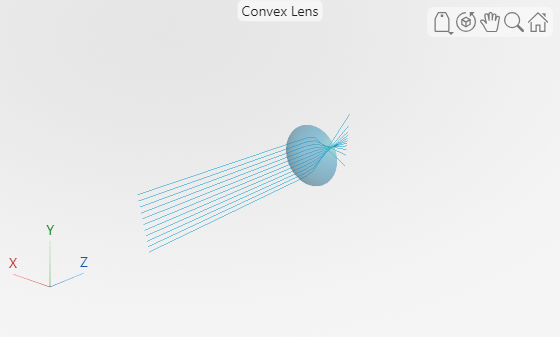

Show only the lens element, which is the first optical component, in the visualization.

showComponents(osv3d,1)

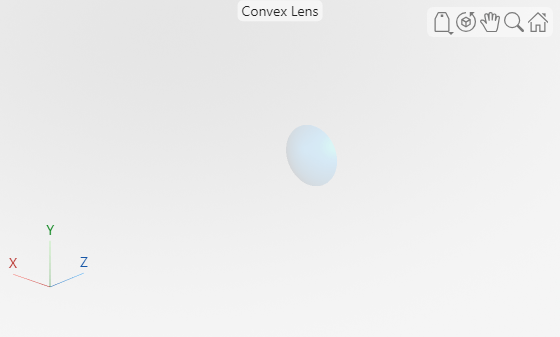

Remove the rays from the visualization.

removeRays(osv3d)

Add component labels to the visualization.

osv3d.Labels = "component";

Input Arguments

osv — Optical system visualization to customize

OpticalSystemViewer2D object | OpticalSystemViewer3D object

Optical system visualization to customize, specified as an OpticalSystemViewer2D or OpticalSystemViewer3D object.

rays — Rays to add to visualization

RayBundle object | vector of RayBundle objects

Rays to add to the visualization, specified as a RayBundle object or vector of RayBundle objects. If osv is an OpticalSystemViewer3D object, rays must be a scalar RayBundle object. To trace rays and create a RayBundle object, use the traceRays, traceChiefRay, or traceMarginalRays function.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: addRays(osv,rays,Color="red") renders rays added to the visualization chart osv in red.

Color — Ray color

RGB triplet | vector of RGB triplets | hexadecimal color code | vector of hexadecimal color codes | "r" | "g" | "b" | ...

Ray color, specified as an RGB triplet, a hexadecimal color code, one of the color options listed in the table, a vector of RGB triplets, a vector of hexadecimal color codes, or a vector of color options listed in the table.

The number of colors you can specify depends on the optical system visualization. By default, the function uses colors based on the wavelength of the ray bundle.

• For a 2-D visualization, when osv is an OpticalsystemViewer2D object, specify a single color for all the ray bundles or a vector of colors with one color for each ray bundle.

• For a 3-D visualization, when osv is an OpticalsystemViewer3D object, specify a single color because you can add only a single RayBundle object to an OpticalsystemViewer3D object.

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
"red"	"r"	[1 0 0]	"#FF0000"
"green"	"g"	[0 1 0]	"#00FF00"
"blue"	"b"	[0 0 1]	"#0000FF"
"cyan"	"c"	[0 1 1]	"#00FFFF"
"magenta"	"m"	[1 0 1]	"#FF00FF"
"yellow"	"y"	[1 1 0]	"#FFFF00"
"black"	"k"	[0 0 0]	"#000000"
"white"	"w"	[1 1 1]	"#FFFFFF"
"none"	Not applicable	Not applicable	Not applicable	No color

Alpha — Transparency of rays in 3-D visualization

numeric scalar in range [0, 1]

Transparency of rays in the 3-D visualization, specified as a numeric scalar in the range [0, 1]. You can specify this argument only when osv is an OpticalsystemViewer3D object. Changing the transparency of the rays can improve your visualization. Specify a higher value for more opaque rays. A higher value of Alpha is suitable when the number of rays is small. Specify a lower value for more transparent rays. A lower value of Alpha is suitable when the number of rays is large and can block other rays in the visualization.

• If the number of rays in rays is less than 10 , the default value of Alpha is 1.

• If the number of rays in rays is greater than 250 , the default value of Alpha is 0.2.

• If the number of rays in rays is in the range [10,250] , the default value of Alpha falls linearly from 1 to 0.2.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Version History

Introduced in R2026a
