# tformarray

Apply spatial transformation to N-D array

**The tformarray function is not recommended for 2-D and 3-D
spatial transformations. Use the imwarp function instead. For more information, see Compatibility Considerations.**

## Description

## Examples

### Transform Checkerboard Image

Create a 2-by-2 square checkerboard image where each square is 20 pixels wide. Display the image.

I = checkerboard(20,1,1); figure imshow(I)

Transform the checkerboard with a projective transformation. First create a spatial transformation structure.

T = maketform('projective',[1 1; 41 1; 41 41; 1 41],... [5 5; 40 5; 35 30; -10 30]);

Create a resampler. Use the pad method `'circular'`

when creating the resampler, so that the output appears to be a perspective view of an infinite checkerboard.

R = makeresampler('cubic','circular');

Perform the transformation, specifying the transformation structure and the resampler. For this example, swap the output dimensions, and specify a 100-by-100 output image. Leave argument `tmap_B`

empty since you specify argument `tsize_B`

. Leave argument `F`

empty since the fill value is not needed.

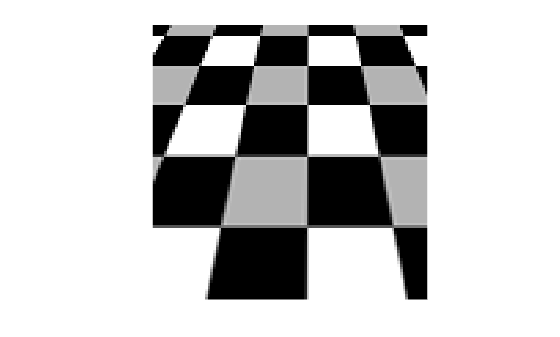

J = tformarray(I,T,R,[1 2],[2 1],[100 100],[],[]); figure imshow(J)

**Transform Checkerboard Image, with Nonuniform Mapping from Input to Output Space**

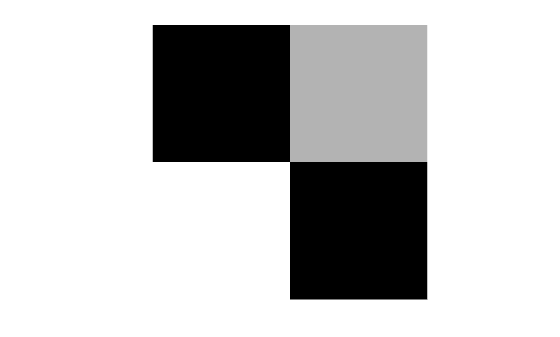

Create a 2-by-2 square checkerboard image where each square is 20 pixels wide. Display the image.

I = checkerboard(20,1,1); figure imshow(I)

Transform the checkerboard with a projective transformation. First create a spatial transformation structure.

T = maketform('projective',[1 1; 41 1; 41 41; 1 41],... [5 5; 40 5; 35 30; -10 30]);

Create a resampler. Use the pad method `'circular'`

when creating the resampler, so that the output appears to be a perspective view of an infinite checkerboard.

R = makeresampler('cubic','circular');

Create arrays that specify the mapping of points from input space to output space. This example uses anisotropic sampling, where the distance between samples is larger in one direction than the other.

samp_x = 1:1.5:150; samp_y = 1:100; [x,y] = meshgrid(samp_x,samp_y); tmap = cat(3,x,y); size(tmap)

`ans = `*1×3*
100 100 2

Note the size of `tmap`

. The output image will have dimensions 100-by-100.

Perform the transformation, specifying the transformation structure and the resampler. Specify the output map as `tmap`

. Leave argument `tsize_B`

empty, since you specify argument `tmap_B`

. The fill value does not matter since the resampler is circular.

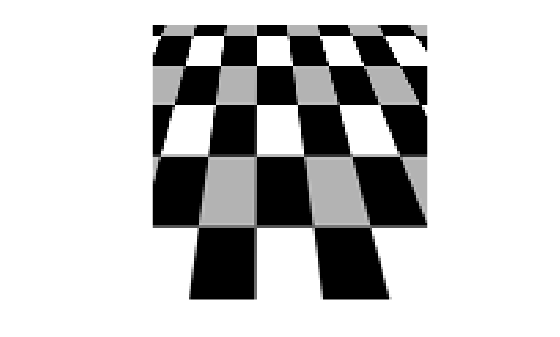

J = tformarray(I,T,R,[1 2],[1 2],[],tmap,[]); figure imshow(J)

The length of checkerboard squares is larger in the *y*-direction than in the *x*-direction, which agrees with the larger sampling distance between points in the vector `samp_x`

. Compared to the result using isotopic point mapping (see example Transform Checkerboard Image), three additional columns of the checkerboard appear at the right of the transformed image, and no new rows are added to the transformed image.

## Input Arguments

`A`

— Input image

numeric array

Input image, specified as a numeric array. `A`

can be
real or complex.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `uint8`

| `uint16`

| `uint32`

| `logical`

**Complex Number Support: **Yes

`T`

— Spatial transformation

`TFORM`

spatial transformation structure

Spatial transformation, specified as a `TFORM`

spatial transformation
structure. You typically use the `maketform`

function to
create a `TFORM`

structure.

`tformarray`

uses `T`

and the function
`tforminv`

to compute the
corresponding location in the input transform subscript space for each
location in the output transform subscript space.
`tformarray`

defines the input transform space by
`tdims_B`

and `tsize_B`

and the
output transform subscript space by `tdims_A`

and
`size(A)`

.

If `T`

is empty, then `tformarray`

operates as a direct
resampling function. Further, if `tmap_B`

is:

Not empty, then

`tformarray`

applies the resampler defined in`R`

to compute values at each transform space location defined in`tmap_B`

Empty, then

`tformarray`

applies the resampler at each location in the output transform subscript grid

**Data Types: **`struct`

`R`

— Resampler

structure

Resampler, specified as a structure. A resampler structure defines how to interpolate values
of the input array at specified locations. `R`

is created
with `makeresampler`

, which allows
fine control over how to interpolate along each dimension.
`makeresampler`

also controls what input array values
to use when interpolating close to the edge of the array.

**Data Types: **`struct`

`tdims_A`

— Input transform dimensions

row vector of finite, positive integers

Input transform dimensions, specified as a row vector of finite, positive integers.

`tdims_A`

and `tdims_B`

indicate
which dimensions of the input and output arrays are involved in the spatial
transformation. Each element must be unique. The entries need not be listed
in increasing order, but the order matters. The order specifies the precise
correspondence between dimensions of arrays `A`

and
`B`

and the input and output spaces of the
transformation `T`

.

`length(tdims_A)`

must equal
`T.ndims_in`

, and `length(tdims_B)`

must equal `T.ndims_out`

.

For example, if `T`

is a 2-D transformation,
`tdims_A = [2 1]`

, and ```
tdims_B = [1
2]
```

, then the row and column dimensions of
`A`

correspond to the second and first transformation
input-space dimensions, respectively. The row and column dimensions of
`B`

correspond to the first and second output-space
dimensions, respectively.

**Data Types: **`double`

`tdims_B`

— Output transform dimensions

row vector of finite, positive integers

Output transform dimensions, specified as a row vector of finite, positive
integers. For more information, see `tdims_A`

.

**Data Types: **`double`

`tsize_B`

— Size of output array in the transform dimensions

row vector of finite, positive integers

Size of the output array transform dimensions, specified as a row vector
of finite, positive integers. The size of `B`

along
nontransform dimensions is taken directly from the size of
`A`

along those dimensions.

For example, if `T`

is a 2-D transformation,
`size(A) = [480 640 3 10]`

,
`tdims_B`

is `[2 1]`

, and
`tsize_B`

is `[300 200]`

, then
`size(B)`

is `[200 300 3 10]`

.

**Data Types: **`double`

`tmap_B`

— Point locations in output space

finite, real-valued array | `[]`

Point locations in output space, specified as a finite real-valued array.
`tmap_B`

is an optional argument that provides an
alternative way of specifying the correspondence between the position of
elements of `B`

and the location in output transform
space. `tmap_B`

can be used, for example, to compute the
result of an image warp at a set of arbitrary locations in output
space.

If `tmap_B`

is not empty, then the size of
`tmap_B`

is

[D_{1}D_{2}D_{3}... D_{N}L]

`N`

equals `length(tdims_B)`

.
`tsize_B`

should be `[]`

.
The value of `L`

depends on whether `T`

is empty. If `T`

is:

Not empty, then

`L`

is`T.ndims_out`

, and each L-dimension point in`tmap_B`

is transformed to an input-space location using`T`

Empty, then

`L`

is`length(tdims_A)`

, and each`L`

-dimensional point in`tmap_B`

is used directly as a location in input space.

**Data Types: **`double`

`F`

— Fill values

numeric scalar | numeric array | `[]`

Fill values, specified as a numeric scalar, numeric array, or empty (`[]`

).
The fill values in `F`

can be used in three
situations:

When a separable resampler is created with

`makeresampler`

and its`padmethod`

is set to either`"fill"`

or`"bound"`

.When a custom resampler is used that supports the

`"fill"`

or`"bound"`

pad methods (with behavior that is specific to the customization).When the map from the transform dimensions of

`B`

to the transform dimensions of`A`

is deliberately undefined for some points. Such points are encoded in the input transform space by`NaN`

s in either`tmap_B`

or in the output of`tforminv`

.

In the first two cases, fill values are used to compute values for output locations that map
outside or near the edges of the input array. Fill values are copied into
`B`

when output locations map well outside the input
array. See `makeresampler`

for more
information about `"fill"`

and `"bound"`

.

When `F`

is:

A scalar (including

`NaN`

), its value is replicated across all the nontransform dimensions.Nonscalar, its size depends on

`size(A)`

in the nontransform dimensions. Specifically, if`K`

is the`J`

th nontransform dimension of`A`

, then`size(F,J)`

must be either`size(A,K)`

or`1`

. As a convenience,`tformarray`

replicates`F`

across any dimensions with unit size such that after the replication`size(F,J)`

equals`size(A,K)`

.Empty (

`[]`

), the`tformarray`

function uses a fill value of`0`

.

For example, suppose `A`

represents 10 RGB images and has size
200-by-200-by-3-by-10, `T`

is a 2-D transformation, and
`tdims_A`

and `tdims_B`

are both
[1 2]. In other words, `tformarray`

applies the same 2-D
transform to each color plane of each of the 10 RGB images. In this
situation you have several options for `F`

:

`F`

can be a scalar, in which case the same fill value is used for each color plane of all 10 images.`F`

can be a 3-by-1 vector,`[R G B]'`

.`tformarray`

uses the RGB value as the fill value for the corresponding color planes of each of the 10 images.`F`

can be a 1-by-10 vector.`tformarray`

uses a different fill value for each of 10 images, with that fill value being used for all three color planes.`F`

can be a 3-by-10 matrix.`tformarray`

uses a different RGB fill color for each of the 10 images.

**Data Types: **`double`

## Output Arguments

`B`

— Transformed image

numeric array

Transformed image, returned as a numeric array.

## Extended Capabilities

### Thread-Based Environment

Run code in the background using MATLAB® `backgroundPool`

or accelerate code with Parallel Computing Toolbox™ `ThreadPool`

.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

## Version History

**Introduced before R2006a**

### R2021b: Support for thread-based environments

`tformarray`

now supports thread-based
environments.

### R2018b: `tformarray`

is not recommended for 2-D and 3-D geometric transformations

The `tformarray`

function is intended for transformations
involving higher-dimensioned arrays, mixed input/output dimensionality, or requiring
greater user control or customization.

For many common tasks involving 2-D and 3-D images, the `imwarp`

function is easier to use.
For example, the `imwarp`

function enables you to specify the
type of interpolation using a name-value argument. The `imwarp`

function also supports categorical images.

The `tformarray`

function is not recommended for 2-D and 3-D
geometric transformations. Instead, create a 2-D or 3-D geometric transformation
object, then use the `imwarp`

function. To perform a
transformation that pads the output using the `"replicate"`

,
`"circular"`

, or `"symmetric"`

padding method,
you can pad the input image using the `padarray`

function before calling
`imwarp`

. For more information about geometric transformation
objects, see 2-D and 3-D Geometric Transformation Process Overview.

This table shows a syntax of `tformarray`

with recommended
replacement code.

Discouraged Usage | Recommended Replacement |
---|---|

This example performs a 2-D affine transformation of image
A = [0.5 0 0; 0.5 2 0; 0 0 1]; T = maketform("affine",A); I = checkerboard(20,1,1); R = makeresampler("cubic","bound"); J = tformarray(I,T,R,[1 2],[2 1],[40 80],[],[]); | Create an ```
A = [0.5 0 0; 0.5 2 0; 0 0 1];
T = affinetform2d(A);
I = checkerboard(20,1,1);
J = imwarp(I,T,"cubic")
``` |

## Comando MATLAB

Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:

Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
