# Create Your First World Map

This example shows how to use the Mapping Toolbox™ to create a world map. Geospatial data can be voluminous, complex, and difficult to process. Mapping Toolbox functions handle many of the details of loading and displaying geospatial data, and use built-in data structures that facilitate data storage. Spatial data refers to data describing location, shape, and spatial relationships. Geospatial data is spatial data that is in some way georeferenced, or tied to specific locations on, under, or above the surface of a planet.

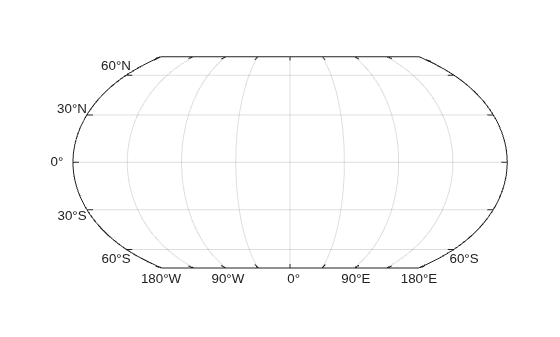

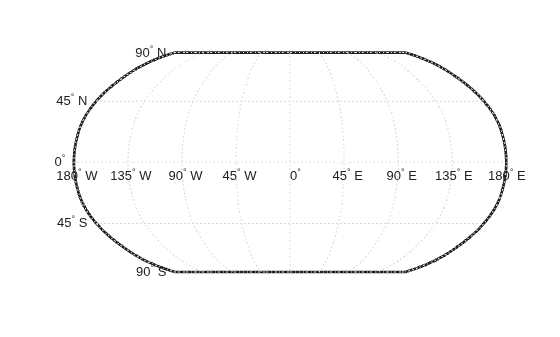

Create an empty `axesm`-based map (previously referred to as map axes), ready to hold the data of your choice. The function `worldmap` automatically selects a reasonable choice for your map projection and coordinate limits. To display a world map, the function chose a Robinson projection centered on the prime meridian and the equator (0° latitude, 0° longitude).

`worldmap world`

Import low-resolution world coastline data. The coastline data is a set of discrete vertices that, when connected in the order given, approximate the coastlines of continents, major islands, and inland seas. The vertex latitudes and longitudes are stored as vectors in a MAT-file. Load the MAT-file and view the variables in the workspace.

```load coastlines whos```
``` Name Size Bytes Class Attributes coastlat 9865x1 78920 double coastlon 9865x1 78920 double ```

Determine how many separate elements are in the coastline data vectors. Even though there is only one vector of latitudes, `coastlat`, and one vector of longitudes, `coastlon`, each of these vectors contain many distinct polygons, forming the worlds coastlines. These vectors use NaN separators and NaN terminators to divide each vector into multiple parts.

```[latcells, loncells] = polysplit(coastlat, coastlon); numel(latcells)```
```ans = 241 ```

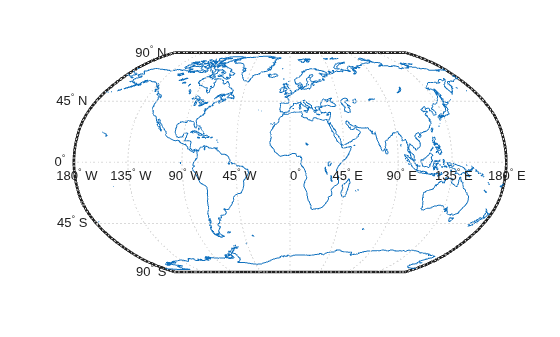

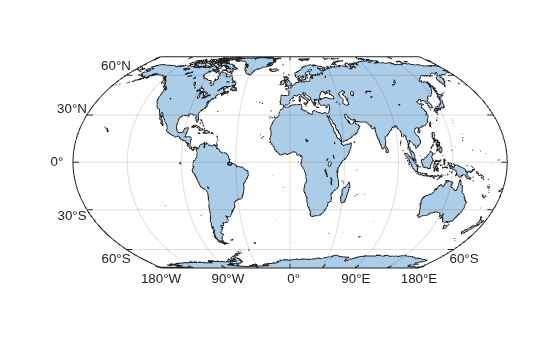

Plot the coastline data on the map using the `plotm` function. `plotm` is the geographic equivalent of the MATLAB® `plot` function. It accepts coordinates in latitude and longitude, transforms them to x and y via a specified map projection, and displays them. In this example, `worldmap` uses the Robinson projection.

`plotm(coastlat, coastlon)`

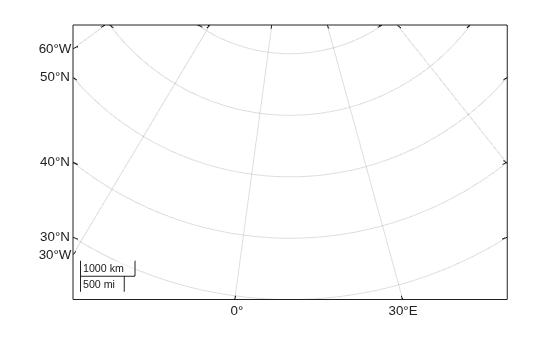

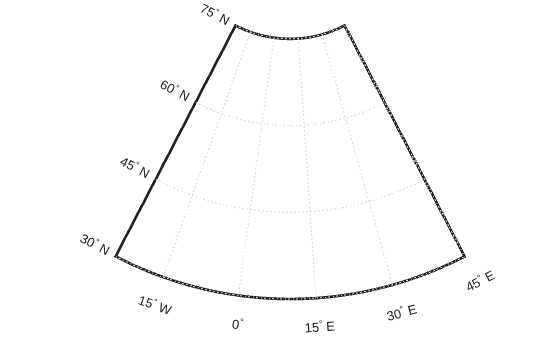

Create a new map for plotting data over Europe. This time, specify a return argument for the `worldmap` function to get a handle to the `axesm`-based map. An `axesm`-based map is a standard MATLAB axes with different default settings for some properties and a structure for storing projection parameters and other data. In addition to the graphics properties common to any MATLAB axes object, an `axesm`-based map contains additional properties covering map projection type, projection parameters, map limits, etc. The `getm` and `setm` functions and others allow you to access and modify these properties.

`h = worldmap('Europe');`

Determine which map projection `worldmap` is using.

`getm(h,'MapProjection')`
```ans = 'eqdconic' ```

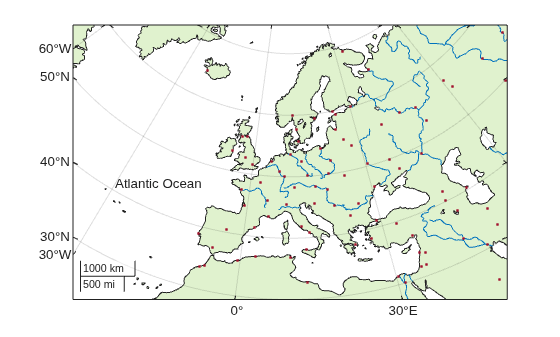

Add data to the map of Europe by using the `geoshow` function to import and display several sample shapefiles. Note how the `geoshow` function can plot data directly from files onto a map without first importing it into the workspace. To change the color of the marker, use the `MarkerEdgeColor` property and, for some markers, the `MarkerFaceColor` property.

```geoshow('landareas.shp', 'FaceColor', [0.15 0.5 0.15]) geoshow('worldlakes.shp', 'FaceColor', 'cyan') geoshow('worldrivers.shp', 'Color', 'blue') geoshow('worldcities.shp', 'Marker', '.',... 'MarkerEdgeColor', 'magenta')```

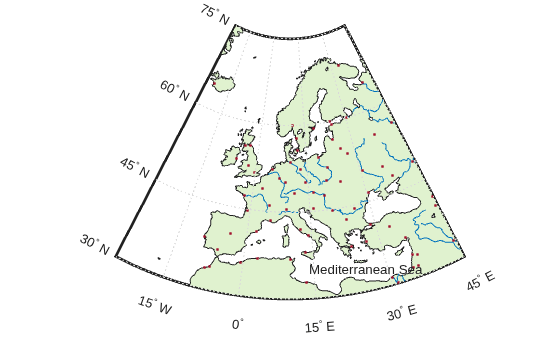

Place a label on the map to identify the Mediterranean Sea.

```labelLat = 35; labelLon = 14; textm(labelLat, labelLon, 'Mediterranean Sea')```
