Synchronous Reluctance Motors (SynRM)

Motor control reference examples for SynRM

Utilize the reference examples to implement motor control algorithms for synchronous reluctance motors.

Featured Examples

Field-Weakening Control (with MTPA) of Nonlinear Synchronous Reluctance Motors Using Lookup Table

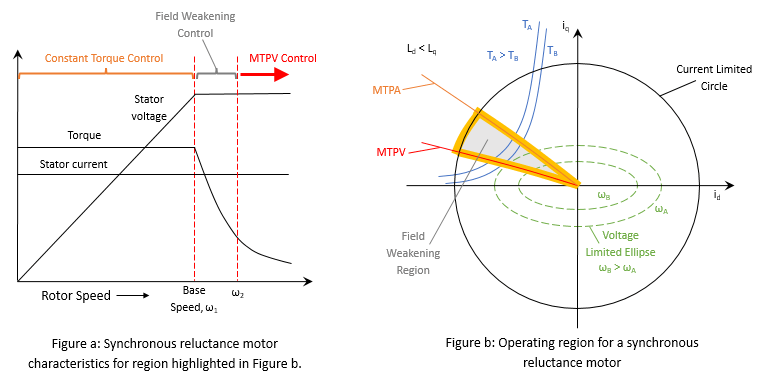

Uses a lookup table (LUT) for a nonlinear synchronous reluctance motor and controller to run the motor using field-weakening control (with maximum torque per ampere (MTPA)). Use this example to replicate and run a finite element analysis (FEA) based nonlinear, high-fidelity synchronous reluctance motor in simulation. This example helps motor design engineers to simulate high-performance motors in real-world motor control applications. In addition, control system engineers can use this example to design control algorithms for a given set of motor parameter data to achieve high levels of accuracy in tracking and controlling speed and torque as well as to meet efficiency requirements, especially for high-performance motors.

Open Model

SynRM Constraint Curves and Their Application

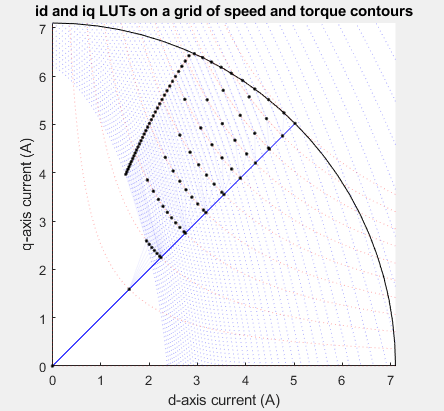

Uses Motor Control Blockset™ to utilize the motor constraint curves to determine the operating currents and use lookup tables of these currents in simulation or deployment environments. The example uses the PMSM constraint curves described in the PMSM Drive Characteristics and Constraint Curves page.

Open Live Script
