# Tutorial for Optimization Toolbox™

This tutorial includes multiple examples that show how to use two nonlinear optimization solvers, `fminunc` and `fmincon`, and how to set options. The principles outlined in this tutorial apply to the other nonlinear solvers, such as `fgoalattain`, `fminimax`, `lsqnonlin`, `lsqcurvefit`, and `fsolve`.

The tutorial examples cover these tasks:

• Minimizing an objective function

• Minimizing the same function with additional parameters

• Minimizing the objective function with a constraint

• Obtaining a more efficient or accurate solution by providing gradients or a Hessian, or by changing options

### Unconstrained Optimization Example

Consider the problem of finding a minimum of the function

`$x\mathrm{exp}\left(-\left({x}^{2}+{y}^{2}\right)\right)+\left({x}^{2}+{y}^{2}\right)/20.$`

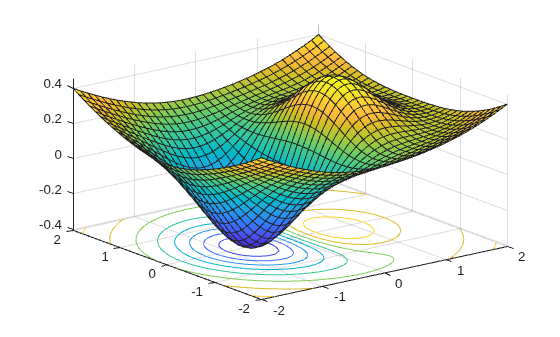

Plot the function to see where it is minimized.

```f = @(x,y) x.*exp(-x.^2-y.^2)+(x.^2+y.^2)/20; fsurf(f,[-2,2],'ShowContours','on')```

The plot shows that the minimum is near the point (–1/2,0).

Usually you define the objective function as a MATLAB® file. In this case, the function is simple enough to define as an anonymous function.

`fun = @(x) f(x(1),x(2));`

Set an initial point for finding the solution.

`x0 = [-.5; 0];`

Set optimization options to use the `fminunc` default `'quasi-newton'` algorithm. This step ensures that the tutorial works the same in every MATLAB version.

`options = optimoptions('fminunc','Algorithm','quasi-newton');`

View the iterations as the solver performs its calculations.

`options.Display = 'iter';`

Call `fminunc`, an unconstrained nonlinear minimizer.

`[x, fval, exitflag, output] = fminunc(fun,x0,options);`
``` First-order Iteration Func-count f(x) Step-size optimality 0 3 -0.3769 0.339 1 6 -0.379694 1 0.286 2 9 -0.405023 1 0.0284 3 12 -0.405233 1 0.00386 4 15 -0.405237 1 3.17e-05 5 18 -0.405237 1 3.35e-08 Local minimum found. Optimization completed because the size of the gradient is less than the value of the optimality tolerance. ```

Display the solution found by the solver.

`uncx = x`
```uncx = 2×1 -0.6691 0.0000 ```

View the function value at the solution.

`uncf = fval`
```uncf = -0.4052 ```

The examples use the number of function evaluations as a measure of efficiency. View the total number of function evaluations.

`output.funcCount`
```ans = 18 ```

### Unconstrained Optimization Example with Additional Parameters

Next, pass extra parameters as additional arguments to the objective function, first by using a MATLAB file, and then by using a nested function.

Consider the objective function from the previous example.

`$f\left(x,y\right)=x\mathrm{exp}\left(-\left({x}^{2}+{y}^{2}\right)\right)+\left({x}^{2}+{y}^{2}\right)/20.$`

Parameterize the function with (a,b,c) as follows:

`$f\left(x,y,a,b,c\right)=\left(x-a\right)\mathrm{exp}\left(-\left(\left(x-a{\right)}^{2}+\left(y-b{\right)}^{2}\right)\right)+\left(\left(x-a{\right)}^{2}+\left(y-b{\right)}^{2}\right)/c.$`

This function is a shifted and scaled version of the original objective function.

#### MATLAB File Function

Consider a MATLAB file objective function named `bowlpeakfun` defined as follows.

`type bowlpeakfun`
```function y = bowlpeakfun(x, a, b, c) %BOWLPEAKFUN Objective function for parameter passing in TUTDEMO. % Copyright 2008 The MathWorks, Inc. y = (x(1)-a).*exp(-((x(1)-a).^2+(x(2)-b).^2))+((x(1)-a).^2+(x(2)-b).^2)/c; ```

Define the parameters.

```a = 2; b = 3; c = 10;```

Create an anonymous function handle to the MATLAB file.

`f = @(x)bowlpeakfun(x,a,b,c)`
```f = function_handle with value: @(x)bowlpeakfun(x,a,b,c) ```

Call `fminunc` to find the minimum.

```x0 = [-.5; 0]; options = optimoptions('fminunc','Algorithm','quasi-newton'); [x, fval] = fminunc(f,x0,options)```
```Local minimum found. Optimization completed because the size of the gradient is less than the value of the optimality tolerance. ```
```x = 2×1 1.3639 3.0000 ```
```fval = -0.3840 ```

#### Nested Function

Consider the `nestedbowlpeak` function, which implements the objective as a nested function.

`type nestedbowlpeak`
```function [x,fval] = nestedbowlpeak(a,b,c,x0,options) %NESTEDBOWLPEAK Nested function for parameter passing in TUTDEMO. % Copyright 2008 The MathWorks, Inc. [x,fval] = fminunc(@nestedfun,x0,options); function y = nestedfun(x) y = (x(1)-a).*exp(-((x(1)-a).^2+(x(2)-b).^2))+((x(1)-a).^2+(x(2)-b).^2)/c; end end ```

The parameters (a,b,c) are visible to the nested objective function `nestedfun`. The outer function, `nestedbowlpeak`, calls `fminunc` and passes the objective function, `nestedfun`.

Define the parameters, initial guess, and options:

```a = 2; b = 3; c = 10; x0 = [-.5; 0]; options = optimoptions('fminunc','Algorithm','quasi-newton');```

Run the optimization:

`[x,fval] = nestedbowlpeak(a,b,c,x0,options)`
```Local minimum found. Optimization completed because the size of the gradient is less than the value of the optimality tolerance. ```
```x = 2×1 1.3639 3.0000 ```
```fval = -0.3840 ```

Both approaches produce the same answers, so you can use the one you find most convenient.

### Constrained Optimization Example: Inequalities

Consider the previous problem with a constraint:

The constraint set is the interior of a tilted ellipse. View the contours of the objective function plotted together with the tilted ellipse.

```f = @(x,y) x.*exp(-x.^2-y.^2)+(x.^2+y.^2)/20; g = @(x,y) x.*y/2+(x+2).^2+(y-2).^2/2-2; fimplicit(g) axis([-6 0 -1 7]) hold on fcontour(f) plot(-.9727,.4685,'ro'); legend('constraint','f contours','minimum'); hold off```

The plot shows that the lowest value of the objective function within the ellipse occurs near the lower-right part of the ellipse. Before calculating the plotted minimum, make a guess at the solution.

`x0 = [-2 1];`

Set optimization options to use the interior-point algorithm and display the results at each iteration.

`options = optimoptions('fmincon','Algorithm','interior-point','Display','iter');`

Solvers require that nonlinear constraint functions give two outputs, one for nonlinear inequalities and one for nonlinear equalities. To give both outputs, write the constraint using the `deal` function.

`gfun = @(x) deal(g(x(1),x(2)),[]);`

Call the nonlinear constrained solver. The problem has no linear equalities or inequalities or bounds, so pass [ ] for those arguments.

`[x,fval,exitflag,output] = fmincon(fun,x0,[],[],[],[],[],[],gfun,options);`
``` First-order Norm of Iter F-count f(x) Feasibility optimality step 0 3 2.365241e-01 0.000e+00 1.972e-01 1 6 1.748504e-01 0.000e+00 1.734e-01 2.260e-01 2 10 -1.570560e-01 0.000e+00 2.608e-01 9.347e-01 3 14 -6.629160e-02 0.000e+00 1.241e-01 3.103e-01 4 17 -1.584082e-01 0.000e+00 7.934e-02 1.826e-01 5 20 -2.349124e-01 0.000e+00 1.912e-02 1.571e-01 6 23 -2.255299e-01 0.000e+00 1.955e-02 1.993e-02 7 26 -2.444225e-01 0.000e+00 4.293e-03 3.821e-02 8 29 -2.446931e-01 0.000e+00 8.100e-04 4.035e-03 9 32 -2.446933e-01 0.000e+00 1.999e-04 8.126e-04 10 35 -2.448531e-01 0.000e+00 4.004e-05 3.289e-04 11 38 -2.448927e-01 0.000e+00 4.036e-07 8.156e-05 Local minimum found that satisfies the constraints. Optimization completed because the objective function is non-decreasing in feasible directions, to within the value of the optimality tolerance, and constraints are satisfied to within the value of the constraint tolerance. ```

Display the solution found by the solver.

`x`
```x = 1×2 -0.9727 0.4686 ```

View the function value at the solution.

`fval`
```fval = -0.2449 ```

View the total number of function evaluations.

`Fevals = output.funcCount`
```Fevals = 38 ```

The inequality constraint is satisfied at the solution.

`[c, ceq] = gfun(x)`
```c = -2.4608e-06 ```
```ceq = [] ```

Because c(x) is close to 0, the constraint is active, meaning it affects the solution. Recall the unconstrained solution.

`uncx`
```uncx = 2×1 -0.6691 0.0000 ```

Recall the unconstrained objective function.

`uncf`
```uncf = -0.4052 ```

See how much the constraint moved the solution and increased the objective.

`fval-uncf`
```ans = 0.1603 ```

### Constrained Optimization Example: User-Supplied Gradients

You can solve optimization problems more efficiently and accurately by supplying gradients. This example, like the previous one, solves the inequality-constrained problem

To provide the gradient of f(x) to `fmincon`, write the objective function in the form of a MATLAB file.

`type onehump`
```function [f,gf] = onehump(x) % ONEHUMP Helper function for Tutorial for the Optimization Toolbox demo % Copyright 2008-2009 The MathWorks, Inc. r = x(1)^2 + x(2)^2; s = exp(-r); f = x(1)*s+r/20; if nargout > 1 gf = [(1-2*x(1)^2)*s+x(1)/10; -2*x(1)*x(2)*s+x(2)/10]; end ```

The constraint and its gradient are contained in the MATLAB file `tiltellipse`.

`type tiltellipse`
```function [c,ceq,gc,gceq] = tiltellipse(x) % TILTELLIPSE Helper function for Tutorial for the Optimization Toolbox demo % Copyright 2008-2009 The MathWorks, Inc. c = x(1)*x(2)/2 + (x(1)+2)^2 + (x(2)-2)^2/2 - 2; ceq = []; if nargout > 2 gc = [x(2)/2+2*(x(1)+2); x(1)/2+x(2)-2]; gceq = []; end ```

Set an initial point for finding the solution.

`x0 = [-2; 1];`

Set optimization options to use the same algorithm as in the previous example for comparison purposes.

`options = optimoptions('fmincon','Algorithm','interior-point');`

Set options to use the gradient information in the objective and constraint functions. Note: these options must be turned on or the gradient information will be ignored.

```options = optimoptions(options,... 'SpecifyObjectiveGradient',true,... 'SpecifyConstraintGradient',true);```

Because `fmincon` does not need to estimate gradients using finite differences, the solver should have fewer function counts. Set options to display the results at each iteration.

`options.Display = 'iter';`

Call the solver.

```[x,fval,exitflag,output] = fmincon(@onehump,x0,[],[],[],[],[],[], ... @tiltellipse,options);```
``` First-order Norm of Iter F-count f(x) Feasibility optimality step 0 1 2.365241e-01 0.000e+00 1.972e-01 1 2 1.748504e-01 0.000e+00 1.734e-01 2.260e-01 2 4 -1.570560e-01 0.000e+00 2.608e-01 9.347e-01 3 6 -6.629161e-02 0.000e+00 1.241e-01 3.103e-01 4 7 -1.584082e-01 0.000e+00 7.934e-02 1.826e-01 5 8 -2.349124e-01 0.000e+00 1.912e-02 1.571e-01 6 9 -2.255299e-01 0.000e+00 1.955e-02 1.993e-02 7 10 -2.444225e-01 0.000e+00 4.293e-03 3.821e-02 8 11 -2.446931e-01 0.000e+00 8.100e-04 4.035e-03 9 12 -2.446933e-01 0.000e+00 1.999e-04 8.126e-04 10 13 -2.448531e-01 0.000e+00 4.004e-05 3.289e-04 11 14 -2.448927e-01 0.000e+00 4.036e-07 8.156e-05 Local minimum found that satisfies the constraints. Optimization completed because the objective function is non-decreasing in feasible directions, to within the value of the optimality tolerance, and constraints are satisfied to within the value of the constraint tolerance. ```

`fmincon` estimated gradients well in the previous example, so the iterations in this example are similar.

Display the solution found by the solver.

`xold = x`
```xold = 2×1 -0.9727 0.4686 ```

View the function value at the solution.

`minfval = fval`
```minfval = -0.2449 ```

View the total number of function evaluations.

`Fgradevals = output.funcCount`
```Fgradevals = 14 ```

Compare this number to the number of function evaluations without gradients.

`Fevals`
```Fevals = 38 ```

### Constrained Optimization Example: Changing the Default Termination Tolerances

This example continues to use gradients and solves the same constrained problem

.

In this case, you achieve a more accurate solution by overriding the default termination criteria (`options.StepTolerance` and `options.OptimalityTolerance`). The default values for the `fmincon` interior-point algorithm are `options.StepTolerance = 1e-10` and `options.OptimalityTolerance = 1e-6`.

Override these two default termination criteria.

```options = optimoptions(options,... 'StepTolerance',1e-15,... 'OptimalityTolerance',1e-8);```

Call the solver.

```[x,fval,exitflag,output] = fmincon(@onehump,x0,[],[],[],[],[],[], ... @tiltellipse,options);```
``` First-order Norm of Iter F-count f(x) Feasibility optimality step 0 1 2.365241e-01 0.000e+00 1.972e-01 1 2 1.748504e-01 0.000e+00 1.734e-01 2.260e-01 2 4 -1.570560e-01 0.000e+00 2.608e-01 9.347e-01 3 6 -6.629161e-02 0.000e+00 1.241e-01 3.103e-01 4 7 -1.584082e-01 0.000e+00 7.934e-02 1.826e-01 5 8 -2.349124e-01 0.000e+00 1.912e-02 1.571e-01 6 9 -2.255299e-01 0.000e+00 1.955e-02 1.993e-02 7 10 -2.444225e-01 0.000e+00 4.293e-03 3.821e-02 8 11 -2.446931e-01 0.000e+00 8.100e-04 4.035e-03 9 12 -2.446933e-01 0.000e+00 1.999e-04 8.126e-04 10 13 -2.448531e-01 0.000e+00 4.004e-05 3.289e-04 11 14 -2.448927e-01 0.000e+00 4.036e-07 8.156e-05 12 15 -2.448931e-01 0.000e+00 4.000e-09 8.230e-07 Local minimum found that satisfies the constraints. Optimization completed because the objective function is non-decreasing in feasible directions, to within the value of the optimality tolerance, and constraints are satisfied to within the value of the constraint tolerance. ```

To see the difference made by the new tolerances more accurately, display more decimals in the solution.

`format long`

Display the solution found by the solver.

`x`
```x = 2×1 -0.972742227363546 0.468569289098342 ```

Compare these values to the values in the previous example.

`xold`
```xold = 2×1 -0.972742694488360 0.468569966693330 ```

Determine the change in values.

`x - xold`
```ans = 2×1 10-6 × 0.467124813385844 -0.677594988729435 ```

View the function value at the solution.

`fval`
```fval = -0.244893137879894 ```

See how much the solution improved.

`fval - minfval`
```ans = -3.996450220755676e-07 ```

The answer is negative because the new solution is smaller.

View the total number of function evaluations.

`output.funcCount`
```ans = 15 ```

Compare this number to the number of function evaluations in the example solved with user-provided gradients and the default tolerances.

`Fgradevals`
```Fgradevals = 14 ```

### Constrained Optimization Example: User-Supplied Hessian

If you supply a Hessian in addition to a gradient, solvers are even more accurate and efficient.

The `fmincon` interior-point algorithm takes a Hessian matrix as a separate function (not part of the objective function). The Hessian function H(x,lambda) evaluates the Hessian of the Lagrangian; see Hessian for fmincon interior-point algorithm.

Solvers calculate the values `lambda.ineqnonlin` and `lambda.eqlin`; your Hessian function tells solvers how to use these values.

This example has one inequality constraint, so the Hessian is defined as given in the `hessfordemo` function.

`type hessfordemo`
```function H = hessfordemo(x,lambda) % HESSFORDEMO Helper function for Tutorial for the Optimization Toolbox demo % Copyright 2008-2009 The MathWorks, Inc. s = exp(-(x(1)^2+x(2)^2)); H = [2*x(1)*(2*x(1)^2-3)*s+1/10, 2*x(2)*(2*x(1)^2-1)*s; 2*x(2)*(2*x(1)^2-1)*s, 2*x(1)*(2*x(2)^2-1)*s+1/10]; hessc = [2,1/2;1/2,1]; H = H + lambda.ineqnonlin(1)*hessc; ```

In order to use the Hessian, you need to set options appropriately.

```options = optimoptions('fmincon',... 'Algorithm','interior-point',... 'SpecifyConstraintGradient',true,... 'SpecifyObjectiveGradient',true,... 'HessianFcn',@hessfordemo);```

The tolerances are set to their defaults, which should result in fewer function counts. Set options to display the results at each iteration.

`options.Display = 'iter';`

Call the solver.

```[x,fval,exitflag,output] = fmincon(@onehump,x0,[],[],[],[],[],[], ... @tiltellipse,options);```
``` First-order Norm of Iter F-count f(x) Feasibility optimality step 0 1 2.365241e-01 0.000e+00 1.972e-01 1 3 5.821325e-02 0.000e+00 1.443e-01 8.728e-01 2 5 -1.218829e-01 0.000e+00 1.007e-01 4.927e-01 3 6 -1.421167e-01 0.000e+00 8.486e-02 5.165e-02 4 7 -2.261916e-01 0.000e+00 1.989e-02 1.667e-01 5 8 -2.433609e-01 0.000e+00 1.537e-03 3.486e-02 6 9 -2.446875e-01 0.000e+00 2.057e-04 2.727e-03 7 10 -2.448911e-01 0.000e+00 2.068e-06 4.191e-04 8 11 -2.448931e-01 0.000e+00 2.001e-08 4.218e-06 Local minimum found that satisfies the constraints. Optimization completed because the objective function is non-decreasing in feasible directions, to within the value of the optimality tolerance, and constraints are satisfied to within the value of the constraint tolerance. ```

The results show fewer and different iterations.

Display the solution found by the solver.

`x`
```x = 2×1 -0.972742246093537 0.468569316215571 ```

View the function value at the solution.

`fval`
```fval = -0.244893121872758 ```

View the total number of function evaluations.

`output.funcCount`
```ans = 11 ```

Compare this number to the number of function evaluations in the example solved using only gradient evaluations, with the same default tolerances.

`Fgradevals`
```Fgradevals = 14 ```
