For some problems, you might want output from an optimization algorithm at each iteration. For example, you might want to find the sequence of points that the algorithm computes and plot those points. To do this, create an output function that the optimization function calls at each iteration. See Output Function Syntax for details and syntax.

This section shows the solver-based approach to output functions. For the problem-based approach, see Output Function for Problem-Based Optimization.

Generally, the solvers that can employ an output function are
the ones that can take nonlinear functions as inputs. You can determine
which solvers can have an output function by looking in the Options
section of function reference pages, or by checking whether the **Output
function** option is available in the Optimization app for
a solver.

The following example continues the one in Nonlinear Inequality Constraints, which calls the
function `fmincon`

at the command line to solve a
nonlinear, constrained optimization problem. The example in this section
uses a function file to call `fmincon`

. The file
also contains all the functions needed for the example, including:

The objective function

The constraint function

An output function that records the history of points computed by the algorithm for

`fmincon`

. At each iteration of the algorithm for`fmincon`

, the output function:Plots the current point computed by the algorithm.

Stores the point and its corresponding objective function value in a variable called

`history`

, and stores the current search direction in a variable called`searchdir`

. The search direction is a vector that points in the direction from the current point to the next one.

The code for the file is here: Writing the Example Function File.

You specify the output function in `options`

,
such as

options = optimoptions(@fmincon,'OutputFcn',@outfun)

where `outfun`

is the name of the output function.
When you call an optimization function with `options`

as
an input, the optimization function calls `outfun`

at
each iteration of its algorithm.

In general, `outfun`

can be any MATLAB^{®} function,
but in this example, it is a nested function of the function file
described in Writing the Example Function File.
The following code defines the output function:

function stop = outfun(x,optimValues,state) stop = false; switch state case 'init' hold on case 'iter' % Concatenate current point and objective function % value with history. x must be a row vector. history.fval = [history.fval; optimValues.fval]; history.x = [history.x; x]; % Concatenate current search direction with % searchdir. searchdir = [searchdir;... optimValues.searchdirection']; plot(x(1),x(2),'o'); % Label points with iteration number. % Add .15 to x(1) to separate label from plotted 'o' text(x(1)+.15,x(2),num2str(optimValues.iteration)); case 'done' hold off otherwise end end

See Using Handles to Store Function Parameters (MATLAB) for more information about nested functions.

The arguments that the optimization function passes to `outfun`

are:

`x`

— The point computed by the algorithm at the current iteration`optimValues`

— Structure containing data from the current iterationThe example uses the following fields of

`optimValues`

:`optimValues.iteration`

— Number of the current iteration`optimValues.fval`

— Current objective function value`optimValues.searchdirection`

— Current search direction

`state`

— The current state of the algorithm (`'init'`

,`'interrupt'`

,`'iter'`

, or`'done'`

)

For more information about these arguments, see Output Function Syntax.

To create the function file for this example:

Open a new file in the MATLAB Editor.

Copy and paste the following code into the file:

function [history,searchdir] = runfmincon % Set up shared variables with OUTFUN history.x = []; history.fval = []; searchdir = []; % call optimization x0 = [-1 1]; options = optimoptions(@fmincon,'OutputFcn',@outfun,... 'Display','iter','Algorithm','active-set'); xsol = fmincon(@objfun,x0,[],[],[],[],[],[],@confun,options); function stop = outfun(x,optimValues,state) stop = false; switch state case 'init' hold on case 'iter' % Concatenate current point and objective function % value with history. x must be a row vector. history.fval = [history.fval; optimValues.fval]; history.x = [history.x; x]; % Concatenate current search direction with % searchdir. searchdir = [searchdir;... optimValues.searchdirection']; plot(x(1),x(2),'o'); % Label points with iteration number and add title. % Add .15 to x(1) to separate label from plotted 'o' text(x(1)+.15,x(2),... num2str(optimValues.iteration)); title('Sequence of Points Computed by fmincon'); case 'done' hold off otherwise end end function f = objfun(x) f = exp(x(1))*(4*x(1)^2 + 2*x(2)^2 + 4*x(1)*x(2) +... 2*x(2) + 1); end function [c, ceq] = confun(x) % Nonlinear inequality constraints c = [1.5 + x(1)*x(2) - x(1) - x(2); -x(1)*x(2) - 10]; % Nonlinear equality constraints ceq = []; end end

Save the file as

`runfmincon.m`

in a folder on the MATLAB path.

To run the example, enter:

[history searchdir] = runfmincon;

This displays the following iterative output in the Command Window.

Max Line search Directional First-order Iter F-count f(x) constraint steplength derivative optimality Procedure 0 3 1.8394 0.5 Infeasible start point 1 6 1.85127 -0.09197 1 0.109 0.778 2 9 0.300167 9.33 1 -0.117 0.313 Hessian modified twice 3 12 0.529835 0.9209 1 0.12 0.232 4 16 0.186965 -1.517 0.5 -0.224 0.13 5 19 0.0729085 0.3313 1 -0.121 0.054 6 22 0.0353323 -0.03303 1 -0.0542 0.0271 7 25 0.0235566 0.003184 1 -0.0271 0.00587 8 28 0.0235504 9.031e-08 1 -0.0146 8.51e-07 Active inequalities (to within options.ConstraintTolerance = 1e-06): lower upper ineqlin ineqnonlin 1 2 Local minimum found that satisfies the constraints. Optimization completed because the objective function is non-decreasing in feasible directions, to within the value of the optimality tolerance, and constraints are satisfied to within the value of the constraint tolerance.

The output `history`

is a structure that contains
two fields:

history = struct with fields: x: [9×2 double] fval: [9×1 double]

The `fval`

field contains the objective function
values corresponding to the sequence of points computed by `fmincon`

:

history.fval ans = 1.8394 1.8513 0.3002 0.5298 0.1870 0.0729 0.0353 0.0236 0.0236

These are the same values displayed in the iterative output
in the column with header `f(x)`

.

The `x`

field of `history`

contains
the sequence of points computed by the algorithm:

history.x ans = -1.0000 1.0000 -1.3679 1.2500 -5.5708 3.4699 -4.8000 2.2752 -6.7054 1.2618 -8.0679 1.0186 -9.0230 1.0532 -9.5471 1.0471 -9.5474 1.0474

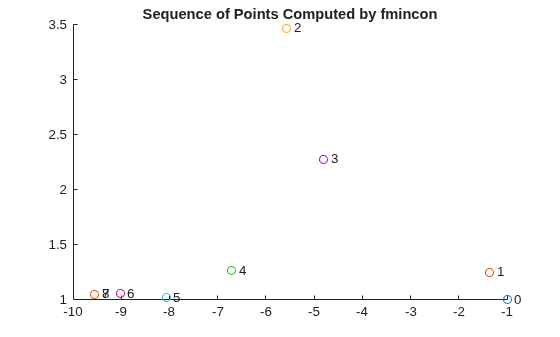

This example displays a plot of this sequence of points, in which each point is labeled by its iteration number.

The optimal point occurs at the eighth iteration. Note that the last two points in the sequence are so close that they overlap.

The second output argument, `searchdir`

, contains
the search directions for `fmincon`

at each iteration.
The search direction is a vector pointing from the point computed
at the current iteration to the point computed at the next iteration:

searchdir = -0.3679 0.2500 -4.2029 2.2199 0.7708 -1.1947 -3.8108 -2.0268 -1.3625 -0.2432 -0.9552 0.0346 -0.5241 -0.0061 -0.0003 0.0003
