show
R2026bDescription
show(
displays third-party components selected using the parameters specified in the rfse,'selected')rfPartSelector object
rfse.
Note
Install the third-party component database containing Analog
Devices™ amplifiers and mixers with the installRFParts()
command.
show(
displays only the rfse,___,'top',n)n 3P components from the installed 3P component
database.
n is an integer, and its maximum value depends on the second
argument in the syntax:
If the second argument is
'selected', the maximum value ofncannot exceedNumSelectedPartsof therfPartSelectorobject.If the second argument is
'all', the maximum value ofncannot exceedNumAllPartsof therfPartSelectorobject.
Examples
Use the installRFParts function to install the third-party database.
installRFParts()
Create an rfPartSelector object to select all the amplifier components.
rfp = rfPartSelector(Type='amplifier',Vendor='ADI');
Display all available amplifier components in the installed database.
show(rfp,'all')
Install the 3P component installed database.
installRFParts()
Select the amplifier from the 3P component installed database. To do this, first create an rfPartSelector object to specify the type of component you want to select.
rfps = rfPartSelector(Type='Amplifier')

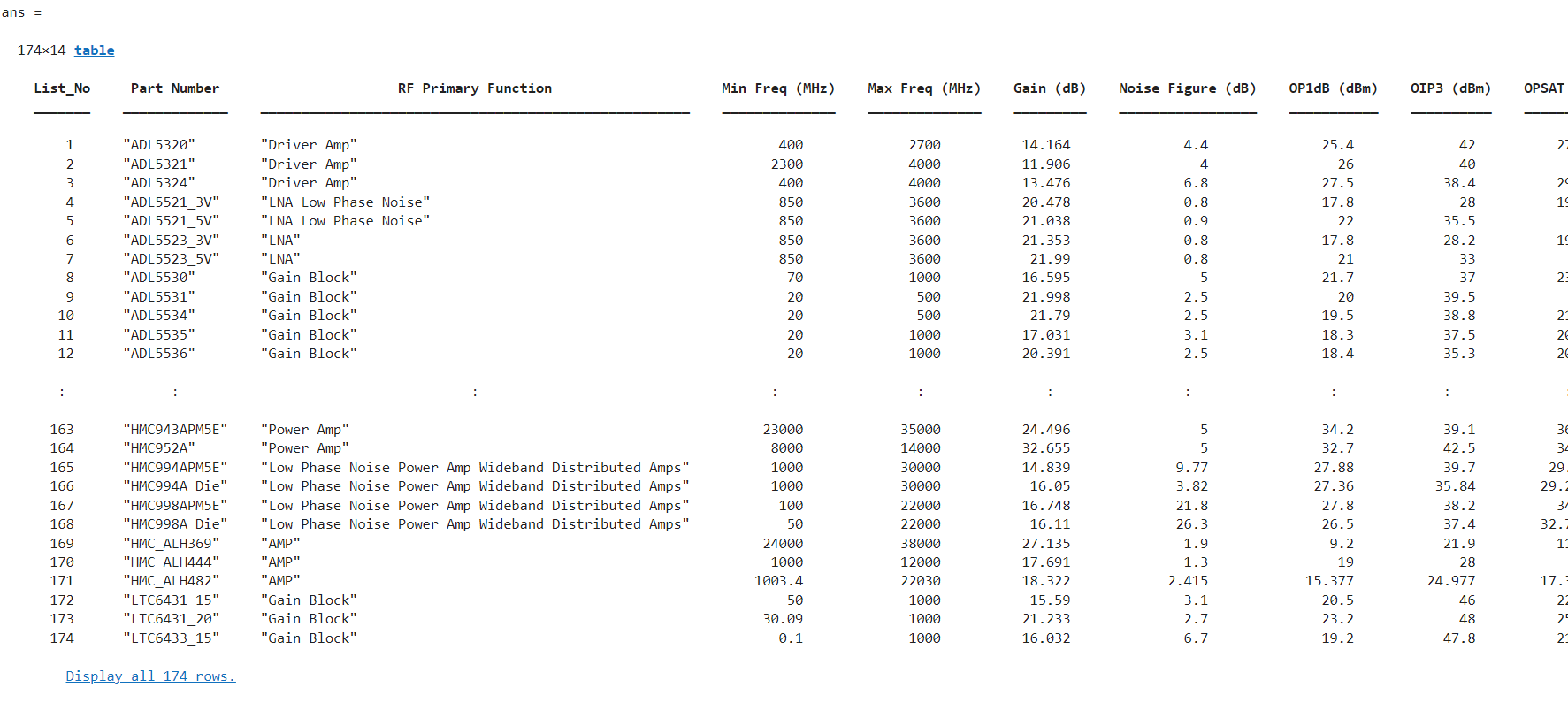

Display all the available amplifier components from this database.
show(rfps,'all')
The installed database contains 174 amplifiers. Add parameter filters to select the amplifiers that operates with the gain between 12 dB and 20 dB, noise figure between 4 dB and 10 dB, OP1 between 20 dBm and 30 dBm, and OIP3 between 20 dBm to 30 dBm.
add(rfps,"SelectedSearchParameters","GainRange",[12 20], "NoiseFigureRange",[4 10],"OP1dBRange",[20 30],"OIP3Range",[20 30])
Display the selected amplifiers.
show(rfps,'selected')
The part parameter table contains 14 columns. Retain only the columns that are relevant to your search criteria. In this example, five parameters are non-relevant and must be removed from the table.
remove(rfps,"DisplayColumns","OPSAT (dBm)","Voltage (V)", "Current (mA)", "Operating Temp (degC)","Package Type")
Display the selected amplifiers with the updated part parameter table.
show(rfps,'selected')
Use the rfPart function to create amplifiers from 3P component data. You can either:
Select all amplifiers displayed based on your filtering criteria and generate
amplifierobjects.Choose a specific amplifier that meets your application requirements and create its
amplifierobject.
amp = rfPart(rfps,"HMC451LP3")
Build an RF chain that includes this amplifier, a component modeled from a Touchstone file, and an element created using an rfelement object. Then, calculate the RF budget for the complete chain at an input frequency of 6.09 GHz, an available input power of −30 dBm, and a bandwidth of 10 MHz.
n = nport('passive.s2p');
r = rfelement(Gain=10);
b = rfbudget([amp r n],6.09e9,-30,10e6)
The RF budget result as follows:
b = rfbudget with properties: Elements: [1x3 rf.internal.rfbudget.Element] InputFrequency: 6 GHz AvailableInputPower: -30 dBm SignalBandwidth: 10 MHz Solver: Friis AutoUpdate: true Analysis Results OutputFrequency: (GHz) [ 6 6 6] OutputPower: (dBm) [-10.64 -0.643 -3.975] TransducerGain: (dB) [ 19.36 29.36 26.03] NF: (dB) [ 8.6 8.6 8.6] IIP3: (dBm) [ 8.511 8.511 8.511] OIP3: (dBm) [ 28 38 34.67] SNR: (dB) [ 65.38 65.38 65.37]
Use the rfPartSelector object to search and filter mixer components from the Analog Devices database, then create an RF mixer component from the results.
First, install the third-party component database.
installRFParts()
Create an rfPartSelector object for mixers from Analog Devices.
rfse = rfPartSelector(Type="mixer", Vendor="ADI")
rfse =
rfPartSelector with properties:
Type: "mixer"
Vendor: "ADI"
SearchParameters: {16×1 cell}
SelectedSearchParameters: {}
ParameterValues: {}
NumAllParts: 82
NumSelectedParts: 82
DisplayColumns: {14×1 cell}
Filter for downconverter IQ mixers with conversion gain between -9 and -6 dB.
add(rfse, "SelectedSearchParameters", ... "ConverterType", "DownConverter", ... "GainRange", [-9 -6], ... "RFPrimaryFunction", "IQ Mixer")
Display the filtered mixer parts in a table.
show(rfse)
List_No Part Number RF Primary Function Converter Type Model Type Sideband Min RF Freq (MHz) Max RF Freq (MHz) Min IF Freq (MHz) Max IF Freq (MHz) Min LO Freq (MHz) Max LO Freq (MHz) Gain (dB) Operating Temp (degC) Package Type
_______ _____________ ___________________ _______________ ____________ ________ _________________ _________________ _________________ _________________ _________________ _________________ _________ _____________________ ____________
1 "HMC521ALC4" "IQ Mixer" "DownConverter" "IMT" "LSB" 10400 10400 100 100 10500 10500 -6.59 25 "24 ld LCC"
2 "HMC521ALC4" "IQ Mixer" "DownConverter" "Non Linear" "LSB" 5000 13500 100 3500 8000 14000 -7.44 25 "24 ld LCC"
3 "HMC521ALC4" "IQ Mixer" "DownConverter" "IMT" "USB" 10600 10600 100 100 10500 10500 -6.59 25 "24 ld LCC"
4 "HMC521ALC4" "IQ Mixer" "DownConverter" "Non Linear" "USB" 8500 17000 100 3500 8000 14000 -6.83 25 "24 ld LCC"
5 "HMC524ALC3B" "IQ Mixer" "DownConverter" "Non Linear" "USB" 20000 32000 100 2500 17500 31900 -7.39 25 "12 ld LCC"
6 "HMC8191LC4" "IQ Mixer" "DownConverter" "IMT" "LSB" 5000 27000 100 5000 6100 31000 -8.0038 25 "24 ld LCC"
7 "HMC8191LC4" "IQ Mixer" "DownConverter" "Non Linear" "LSB" 5000 28000 100 5000 6100 31000 -8.0038 25 "24 ld LCC"
8 "HMC8191LC4" "IQ Mixer" "DownConverter" "Non Linear" "USB" 6000 30000 100 5000 5500 27000 -8.68 25 "24 ld LCC"
9 "HMC8193LC4" "IQ Mixer" "DownConverter" "IMT" "LSB" 2500 8500 100 3500 2600 12000 -7.2 25 "24 ld LCC"
10 "HMC8193LC4" "IQ Mixer" "DownConverter" "Non Linear" "LSB" 1500 9000 100 4500 2100 9100 -6.5 25 "24 ld LCC"
11 "HMC8193LC4" "IQ Mixer" "DownConverter" "IMT" "USB" 2500 8500 100 3500 1000 8400 -7.62 25 "24 ld LCC"
12 "HMC8193LC4" "IQ Mixer" "DownConverter" "Non Linear" "USB" 2250 10000 100 4500 2000 8900 -6.62 25 "24 ld LCC"
Create an RF mixer component object from the first part in the filtered results.
comp = rfPart(rfse, 1)
comp =
mixerIMT: MixerIMT element
Name: 'HMC521ALC4'
ConverterType: 'Down'
Sideband: 'lower'
SystemData: [1×1 rfSystemParameters]
InputFrequency: 1.0400e+10
LO: 1.0500e+10
ReferenceInputPower: -10
NominalOutputPower: -16.5900
Zin: 50
Zout: 50
NF: 0
IMTdiff: [6×6 double]
IMTsum: [6×6 double]
Input Arguments
Version History
Introduced in R2026aSee Also
RF Part Catalog | add | remove | rfPart
