Hide RF Blockset model window created using rfsystem
rfsystem
Since R2021a
hide_system(rfs)
hide_system(rfs) hides the RF Blockset™ model window created using rfsystem System object™ rfs.
rfs
example
collapse all
This example uses:
Create a fifth-order bandpass RF filter and an amplifier with the gain of 3 dB.
3
f1 = rffilter('ResponseType','Bandpass','FilterOrder',5,'PassbandFrequency',[4.85 5.15]*1e9); a1 = amplifier('Gain',3,'NF',1.53,'OIP3',35);
Create an rfbudget object using the elements at an input frequency of 5 GHz, an available input power of -30 dBm, and a bandwidth of 200 MHz.
rfbudget
5
-30
200
rfb = rfbudget([f1 a1],5e9,-30,200e6);
Create an RF system using the rfbudget object.
rfs = rfsystem(rfb,'ModelName','myRFmodel');
Release system resources and turn off fast restart.
release(rfs)

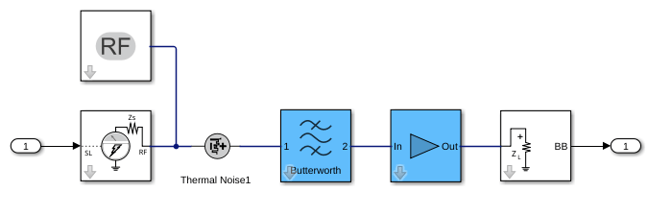

Open an RF Blockset model of the designed RF system using the open_system object function.
open_system
open_system(rfs)
Hide the RF Blockset model.
RF system, specified as an rfsystem object
Introduced in R2021a
rfsystem | open_system | save_system | close_system
save_system
close_system
