show

Show collision geometry

Syntax

show(geom)

show(geom,"Parent",AX)

ax = show(___)

[ax,patchobj] = show(___)

Description

show(geom) shows the collision geometry in the current figure at its current pose. The function automatically generates the tessellation.

show(geom,"Parent",AX) specifies the axes AX in which to plot the collision geometry.

ax = show(___) returns the axes on which you plot the collision geometry.

[ax,patchobj] = show(___) returns the graphic object patchobj that represents the collision geometry in the plot.

Examples

Show Collision Geometry

Create a cylinder collision geometry. The cylinder has a length of 3 meters and a radius of 1 meter.

cyl = collisionCylinder(1,3);

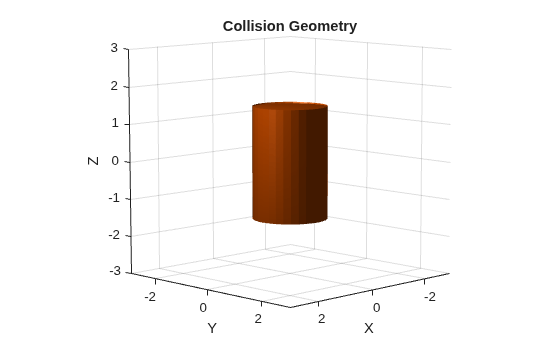

Show the cylinder.

show(cyl)

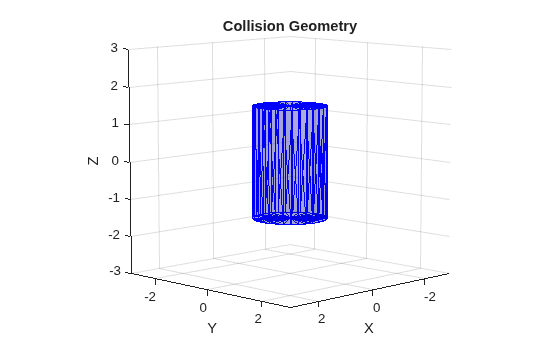

Show the cylinder in a new figure, and return the patch object that represents the cylinder. Change the cylinder color to cyan by changing the RGB value of the FaceColor field in the patch object. Hide the edges by setting EdgeColor to 'none'.

figure
[~,patchObj] = show(cyl);
patchObj.FaceColor = [0 1 1];
patchObj.EdgeColor = 'none';

Input Arguments

geom — Collision geometry

collisionBox object | collisionCapsule object | collisionCylinder object | collisionMesh object | collisionSphere object

Collision geometry to show, specified as one of these objects:

• collisionBox

• collisionCapsule

• collisionCylinder

• collisionMesh

• collisionSphere

AX — Axes on which to plot collision geometry

Axes object

Axes on which to plot the collision geometry, specified as an Axes object.

Output Arguments

ax — Axes displaying collision geometry

Axes object

Axes displaying the collision geometry, returned as an Axes object. For more information, see Axes Properties.

patchobj — Graphic object

Patch object

Graphic object that represents the collision geometry, returned as a Patch object. For more information, see Patch Properties.

Version History

Introduced in R2019b
