Build Tunable Model for Tuning with hinfstruct

This example shows how to construct a tunable model of a control system for tuning with hinfstruct. To do so, build a generalized linear model of your closed-loop system, incorporating weighting functions that capture your design requirements (see Formulating Design Requirements as H-Infinity Constraints).

  1. Use commands such as tf, zpk, and ss to create numeric linear models that represent the fixed elements of your control system and any weighting functions that represent your design requirements.

  2. Use tunable models (either control design blocks or generalized LTI models) to represent the tunable elements of your control system. For more information about tunable models, see Models with Tunable Coefficients.

  3. Use model-interconnection commands such as series, parallel, and connect to construct your closed-loop system from the numeric and tunable models.

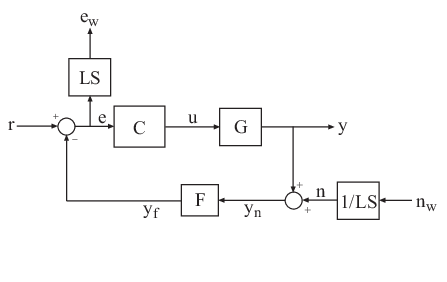

For this example, build a tunable model of the closed-loop system with weighting functions shown in the following block diagram.


This block diagram represents a head-disk assembly (HDA) in a hard disk drive. The architecture includes the plant G in a feedback loop with a PI controller C and a low-pass filter, F = a/(s+a). The PI gains of C and the filter parameter a are tunable to achieve a desired response. For hinfstruct, you encode the desired response with the weighting functions LS and 1/LS, which express a target loop shape. Let T(s) denote the closed-loop transfer function from the inputs {r,nw}to the outputs {y,ew}. Then, constraining the H norm to less than 1 (T(s)<1) approximately enforces the target loop shape.

For this example, use the target loop shape given by:

LS=1+0.001sωc0.001+sωc

This value of LS corresponds to the following open-loop response shape.

wc = 1000;
s = tf('s');
LS = (1+0.001*s/wc)/(0.001+s/wc);

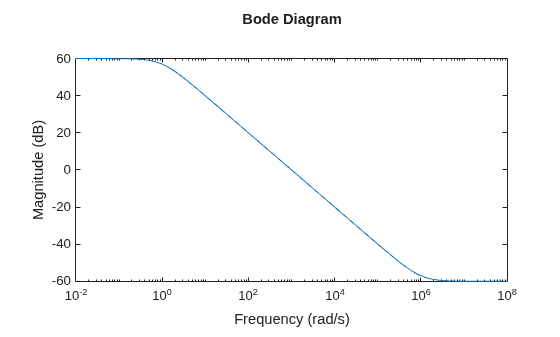

bodemag(LS,logspace(-2,8,100))

MATLAB figure

To prepare for tuning the controller and filter, construct a tunable model of the closed-loop system T(s). First, load the plant model G, a ninth-order SISO state-space (ss) model.

load hinfstruct_demo G

Create a tunable model of the PI controller, using the predefined control design block tunablePID.

C = tunablePID('C','pi');

There is no predefined control design block for the filter structure F = a/(s+a). You can create the tunable filter using realp.

a = realp('a',1);
F = tf(a,[1 a]);

To build the closed-loop model, first label all the inputs and outputs of the system components.

G.InputName = 'u';
G.OutputName = 'y';

We = LS;
We.InputName = 'e';
We.OutputName = 'ew';
Wn = 1/LS;
Wn.InputName = 'nw';
Wn.OutputName = 'n';

C.InputName = 'e';
C.OutputName = 'u';
F.InputName = 'yn';
F.OutputName = 'yf';

Specify the summing junctions in terms of the I/O labels of the other components of the control system. One junction takes the difference between the reference signal and the filtered output, producing the error signal e. The other junction adds noise to the plant output, producing the noisy output yn.

Sum1 = sumblk('e = r - yf');
Sum2 = sumblk('yn = y + n');

Finally, use connect to combine all the elements into a complete model of the closed-loop system.

T0 = connect(G,Wn,We,C,F,Sum1,Sum2,{'r','nw'},{'y','ew'});

T0 is a genss object representing the entire closed-loop control system incorporating the loop-shaping weighting functions. The Blocks property of T0 contains the tunable blocks C and a. (In this example, the control system model T0 is a continuous-time model, with T0.Ts = 0. You can also use hinfstruct with a discrete-time model, provided that you specify a definite sample time, T0.Ts ≠ –1.)

T0.Blocks
ans = struct with fields:
    C: [1x1 tunablePID]
    a: [1x1 realp]

You can now use hinfstruct to tune a and the free parameters of C. See Tune and Validate Controller Parameters.
