sigroi2binmask

Convert matrix of ROI limits to binary mask

collapse all in page

Syntax

mask = sigroi2binmask(roilims)
mask = sigroi2binmask(roilims,len)

Description

mask = sigroi2binmask(roilims) converts roilims, a matrix of signal region-of-interest (ROI) limits, to a binary sequence, mask, with true values indicating samples that belong to regions of interest.

example

mask = sigroi2binmask(roilims,len) specifies the length of the output binary sequence.

example

Examples

collapse all

Open Live Script

Consider a two-column matrix of beginning and end samples of four possible regions of interest of a signal. Convert the ROI limits to a logical sequence and display the sequence.

roilims = [5 10; 15 18; 25 32; 36 38];

mask = sigroi2binmask(roilims);

stem(mask,'filled')
ylim([0 2]-0.5)

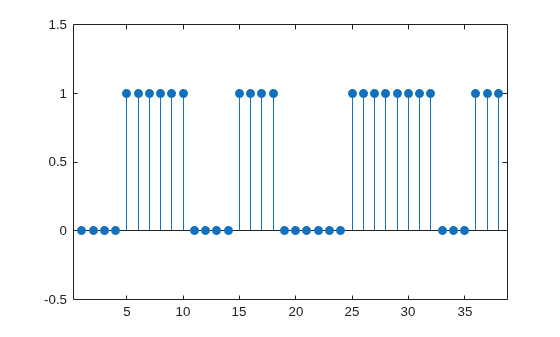

Figure contains an axes object. The axes object contains an object of type stem.

Specify the length of the output sequence as 48. sigroi2binmask pads the sequence with false values.

mask = sigroi2binmask(roilims,48);

stem(mask,'filled')
ylim([0 2]-0.5)

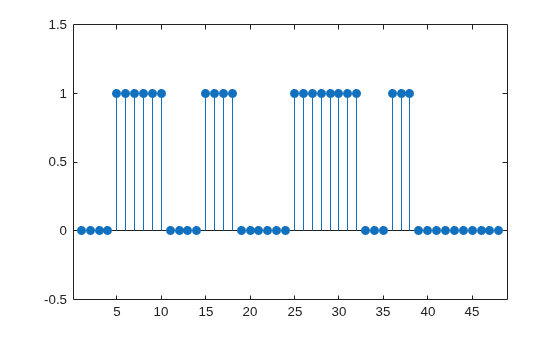

Figure contains an axes object. The axes object contains an object of type stem.

Specify the length of the output sequence as 36. sigroi2binmask ignores samples beyond the specified sequence length.

mask = sigroi2binmask(roilims,36);

stem(mask,'filled')
ylim([0 2]-0.5)

Figure contains an axes object. The axes object contains an object of type stem.

Input Arguments

collapse all

Region-of-interest limits, specified as a two-column matrix of positive integers. The ith row of roilims contains nondecreasing indices corresponding to the beginning and end samples of the ith region of interest of a signal.

Example: [5 8; 12 20; 18 25] specifies a two-column region-of-interest matrix with three regions.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output sequence length, specified as an integer scalar. Regions with indices larger than len are ignored or truncated. If len is greater than max(roilims(:,2)), then sigroi2binmask pads mask with false values.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

collapse all

Binary mask, returned as a logical vector with true values indicating samples that belong to a region of interest.

Extended Capabilities

expand all

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2020b
