Signal Sample and Hold

R2026b

Discrete-time or Continuous-time sample and hold input signal

•

Signal Sample and Hold block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Simscape / Electrical / Control / General Control

Description

The Signal Sample and Hold block implements a signal sample and hold in either discrete or continuous time.

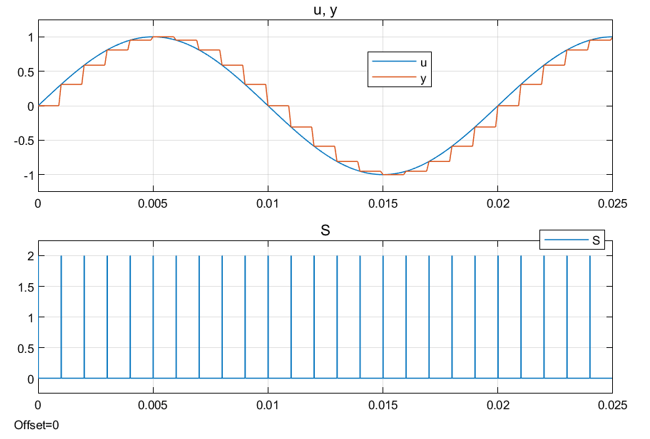

When input S is true, output y is equal to input u. When input S is false, the block holds the output until S becomes true again.

Ports

Input

u — Input signal

scalar | vector

Input signal.

Data Types: single | double

S — Control signal

0 | 1

Sample pulse of 0 for false or 1 for true.

Data Types: Boolean

Output

y — Output signal

scalar | vector

Output signal.

Data Types: single | double

Parameters

Initial condition — Initial output value

scalar | vector

Specify initial condition. The value must be a scalar or a vector of the same size as the input signal.

Sample time (-1 for inherited) — Block sample time

-1 (default) | 0 | positive scalar

Time between consecutive block executions. During execution, the block produces outputs and, if appropriate, updates its internal state. For more information, see What Is Sample Time? and Specify Sample Time.

For inherited discrete-time operation, set this parameter to -1. For discrete-time operation, set this parameter to a positive scalar. For continuous-time operation, set this parameter to 0.

If this block is in a masked subsystem or a variant subsystem that supports switching between continuous operation and discrete operation, promote this parameter to ensure correct switching between the continuous and discrete implementations of the block. For more information, see Promote Block Parameters to a Mask.

Programmatic Use: Add Block

To add the block programmatically, use the add_block function with one of these library block paths as the source.

"ee_sl_lib/General Control/Signal Sample and Hold"

Example: add_block("ee_sl_lib/General Control/Signal Sample and Hold","myModel/myBlock",MakeNameUnique="on")

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2018b
